REAR SEAT & SEAT TRACK

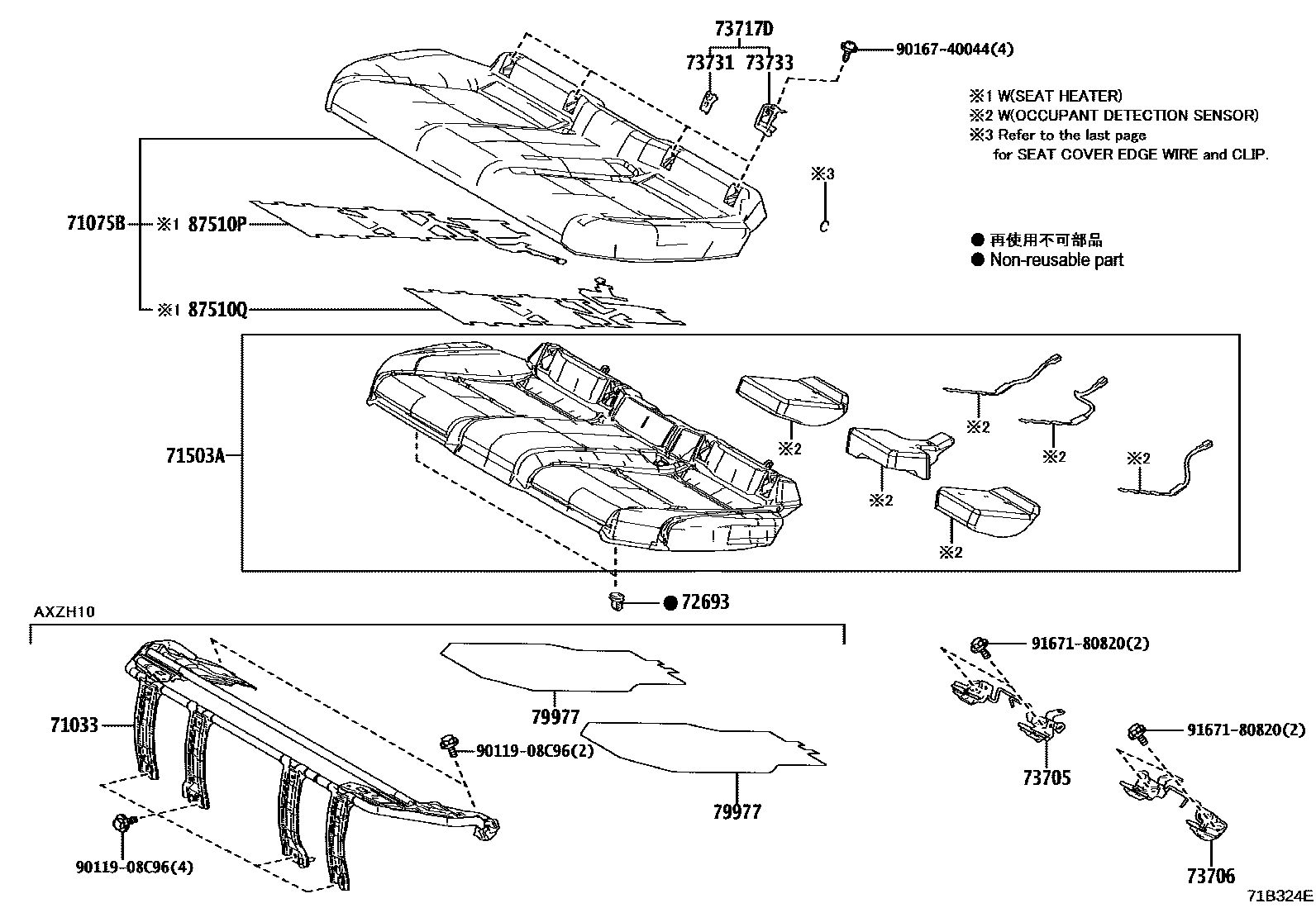

Parts diagram
71033LEG SUB-ASSY, REAR SEAT CUSHION
main71033-33010i201807-202110
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-33J40-20i202008-202010
BLACK,TRIM21,23,24
sub71075-33J40
main71075-33J40-20i202008-202010
BLACK,TRIM20
sub71075-33J40
main71075-33J40-20i202008-202010
F SPORT,BLACK,TRIM24
sub71075-33J40
main71075-33J40-20i202008-202010
BLACK,TRIM20,24
sub71075-33J40
main71075-33J40-A9i201907-202108
RICH CREAM,TRIM6#
sub71075-33J40
main71075-33J40-B8i201806-202108
CHATEAU,TRIM1#
sub71075-33J40
main71075-33J40-C9i201806-202008
F SPORT,BLACK,TRIM20,24
sub71075-33J40
main71075-33J40-C9i201806-202108
BLACK,TRIM2#
sub71075-33J40
main71075-33J40-C9i201806-202008
F SPORT,BLACK,TRIM24
sub71075-33J40
main71075-33J40-E2i201806-202108
TOPAZ BROWN,TRIM5#
sub71075-33J40
main71075-33J50-21i202008-202010
BLACK,TRIM20,24
sub71075-33J50
main71075-33J50-A8i201907-202108
RICH CREAM(SYNITHETIC),TRIM6#
sub71075-33J50
main71075-33J50-B7i201807-202108
CHATEAU,TRIM1#
sub71075-33J50
main71075-33J50-C8i201807-202108
BLACK,TRIM2#
sub71075-33J50
main71075-33J50-C8i201807-202008
F SPORT,BLACK,TRIM20,24
sub71075-33J50
main71075-33J50-E2i201807-202108
TOPAZ BROWN,TRIM5#
sub71075-33J50
main71075-33J60-A7i201806-201903
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,RICH CREAM,TRIM6#
sub71075-33J61
main71075-33J60-A7i201806-201903
RICH CREAM,TRIM6#
sub71075-33J61
main71075-33J60-A7i201806-201903
LUXURY PACKAGE,RICH CREAM,TRIM6#
sub71075-33J61
main71075-33J60-B7i201806-201903
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,CHATEAU,TRIM1#
sub71075-33J61
main71075-33J60-B7i201806-201903
LUXURY PACKAGE,CHATEAU,TRIM1#
sub71075-33J61
main71075-33J60-B7i201806-201903
CHATEAU,TRIM1#
sub71075-33J61
main71075-33J60-C8i201806-201903
LUXURY PACKAGE,BLACK,TRIM2#
sub71075-33J61
main71075-33J60-C8i201806-201903
BLACK,TRIM2#
sub71075-33J61
main71075-33J60-C8i201806-201903
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,BLACK,TRIM2#
sub71075-33J61
main71075-33J60-F7i201806-201903
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,TOPAZ BROWN,TRIM5#
sub71075-33J61
main71075-33J60-F7i201806-201903
TOPAZ BROWN,TRIM5#
sub71075-33J61
main71075-33J60-F7i201806-201903
LUXURY PACKAGE,TOPAZ BROWN,TRIM5#
sub71075-33J61
main71075-33J61-A7i201904-202108
LUXURY PACKAGE,RICH CREAM,TRIM6#
main71075-33J61-A7i201904-202108
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,RICH CREAM,TRIM6#
main71075-33J61-A7i201904-202108
RICH CREAM,TRIM6#
main71075-33J61-B7i201904-202108
CHATEAU,TRIM1#
main71075-33J61-B7i201904-202108
LUXURY PACKAGE,CHATEAU,TRIM1#
main71075-33J61-B7i201904-202108
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,CHATEAU,TRIM1#
main71075-33J61-C8i201904-202108
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,BLACK,TRIM2#
main71075-33J61-C8i201904-202108
LUXURY PACKAGE,BLACK,TRIM2#
main71075-33J61-C8i201904-202108
BLACK,TRIM2#
main71075-33J61-F7i201904-202108
TOPAZ BROWN,TRIM5#
main71075-33J61-F7i201904-202108
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,TOPAZ BROWN,TRIM5#
main71075-33J61-F7i201904-202108
LUXURY PACKAGE,TOPAZ BROWN,TRIM5#
main71075-33J70-A7i201807-201903
RICH CREAM,TRIM6#
sub71075-33J71
main71075-33J70-A7i201807-201903
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),RICH CREAM,TRIM6#
sub71075-33J71
main71075-33J70-A7i201807-201903
LUXURY PACKAGE,RICH CREAM,TRIM6#
sub71075-33J71
main71075-33J70-B7i201807-201903
LUXURY PACKAGE,CHATEAU,TRIM1#
sub71075-33J71
main71075-33J70-B7i201807-201903
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),CHATEAU,TRIM1#
sub71075-33J71
main71075-33J70-B7i201807-201903
CHATEAU,TRIM1#
sub71075-33J71
main71075-33J70-C8i201807-201903
BLACK,TRIM2#
sub71075-33J71
main71075-33J70-C8i201807-201903
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM2#
sub71075-33J71
main71075-33J70-C8i201807-201903
LUXURY PACKAGE,BLACK,TRIM2#
sub71075-33J71
main71075-33J70-F7i201807-201903
TOPAZ BROWN,TRIM5#
sub71075-33J71
main71075-33J70-F7i201807-201903
LUXURY PACKAGE,TOPAZ BROWN,TRIM5#
sub71075-33J71
main71075-33J70-F7i201807-201903
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),TOPAZ BROWN,TRIM5#
sub71075-33J71
main71075-33J71-A7i201904-202108
RICH CREAM,TRIM6#
main71075-33J71-A7i201904-202108
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),RICH CREAM,TRIM6#
main71075-33J71-A7i201904-202108
LUXURY PACKAGE,RICH CREAM,TRIM6#
main71075-33J71-B7i201904-202108
LUXURY PACKAGE,CHATEAU,TRIM1#
main71075-33J71-B7i201904-202108
CHATEAU,TRIM1#
main71075-33J71-B7i201904-202108
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),CHATEAU,TRIM1#
main71075-33J71-C8i201904-202108
BLACK,TRIM2#
main71075-33J71-C8i201904-202108
LUXURY PACKAGE,BLACK,TRIM2#
main71075-33J71-C8i201904-202108
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM2#
main71075-33J71-F7i201904-202108
TOPAZ BROWN,TRIM5#
main71075-33J71-F7i201904-202108
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),TOPAZ BROWN,TRIM5#
main71075-33J71-F7i201904-202108
LUXURY PACKAGE,TOPAZ BROWN,TRIM5#
main71075-33K21-A7i202001-202110
RICH CREAM,TRIM6#
main71075-33K21-B7i202001-202110
CHATEAU,TRIM1#
main71075-33K21-C8i202001-202110
BLACK,TRIM2#
main71075-33K21-F7i202001-202110
TOPAZ BROWN,TRIM5#
main71075-33L50-A6i201907-202108
RICH CREAM,TRIM6#
sub71075-33L50
main71075-33L50-B5i201806-202108
CHATEAU,TRIM1#
sub71075-33L50
main71075-33L50-C5i201806-202108
BLACK,TRIM2#
sub71075-33L50
main71075-33L50-C5i201806-202008
F SPORT,BLACK,TRIM20,21,23,24
sub71075-33L50
main71075-33L50-C6i202008-202010
BLACK,TRIM20,21,23,24
sub71075-33L50
main71075-33L50-C6i202008-202010
BLACK,TRIM20,21,23
sub71075-33L50
main71075-33L50-E2i201806-202108
TOPAZ BROWN,TRIM5#
sub71075-33L50
main71075-33L60-A6i201907-202108
RICH CREAM,TRIM6#
main71075-33L60-B5i201807-202108
CHATEAU,TRIM1#
main71075-33L60-C5i201807-202108
BLACK,TRIM2#
main71075-33L60-E2i201807-202108
TOPAZ BROWN,TRIM5#
main71075-33R40-A1i202108-202208
WHITE,TRIM26
main71075-33R40-A1i202108-202208
F SPORT,WHITE,TRIM26
main71075-33R40-A2i202108-202208
RICH CREAM,TRIM6#
main71075-33R40-C0i202108-202208
F SPORT,BLACK,TRIM24
main71075-33R40-C0i202108-202208
BLACK,TRIM21,23,24
main71075-33R40-C0i202108-202208
BLACK,TRIM20,24
main71075-33R40-C0i202108-202208
BLACK,TRIM2#
main71075-33R40-D0i202108-202208
RED,TRIM25
main71075-33R40-D0i202108-202208
F SPORT,RED,TRIM25
main71075-33R40-E2i202108-202208
HAZEL,TRIM4#
main71075-33R40-E3i202108-202208
MAUVE,TRIM7#
main71075-33R41-A3i202208
F SPORT,WHITE,TRIM26
main71075-33R41-A3i202208
WHITE,TRIM26
main71075-33R41-A4i202208
FROMAGE,TRIM0#
main71075-33R41-C1i202208
BLACK,TRIM2#
main71075-33R41-C1i202208
BLACK,TRIM20,24
main71075-33R41-C1i202208
BLACK,TRIM21,23,24
main71075-33R41-C1i202208
F SPORT,BLACK,TRIM24
main71075-33R41-D1i202208
RED,TRIM25
main71075-33R41-D1i202208
F SPORT,RED,TRIM25
main71075-33R41-E4i202208
MAUVE,TRIM7#
main71075-33R41-E5i202208
HAZEL,TRIM4#
main71075-33R50-A1i202108-202208
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),WHITE,TRIM26
main71075-33R50-A1i202108-202208
WHITE,TRIM26
main71075-33R50-A2i202108-202208
RICH CREAM,TRIM6#
main71075-33R50-C0i202108-202208
BLACK,TRIM2#
main71075-33R50-C0i202108-202208
BLACK,TRIM20,24
main71075-33R50-C0i202108-202208
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM24
main71075-33R50-D0i202108-202208
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),RED,TRIM25
main71075-33R50-D0i202108-202208
RED,TRIM25
main71075-33R50-E2i202108-202208
HAZEL,TRIM4#
main71075-33R50-E3i202108-202208
MAUVE,TRIM7#
main71075-33R51-A3i202208-202411
WHITE,TRIM26
main71075-33R51-A3i202208
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),WHITE,TRIM26
main71075-33R51-A4i202208
FROMAGE,TRIM0#
main71075-33R51-C1i202208-202411
BLACK,TRIM20,24
main71075-33R51-C1i202208
BLACK,TRIM2#
main71075-33R51-C1i202208
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM24
main71075-33R51-D1i202208-202411
RED,TRIM25
main71075-33R51-D1i202208
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),RED,TRIM25
main71075-33R51-E4i202208
MAUVE,TRIM7#
main71075-33R51-E5i202208
HAZEL,TRIM4#
main71075-33R60-A2i202108-202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,RICH CREAM,TRIM6#
main71075-33R60-A2i202108-202208
RICH CREAM,TRIM6#
main71075-33R60-A2i202108-202208
LUXURY PACKAGE,RICH CREAM,TRIM6#
main71075-33R60-C0i202108-202208
LUXURY PACKAGE,BLACK,TRIM2#
main71075-33R60-C0i202108-202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,BLACK,TRIM2#
main71075-33R60-C0i202108-202208
BLACK,TRIM2#
main71075-33R60-E3i202108-202208
HAZEL,TRIM4#
main71075-33R60-E3i202108-202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,HAZEL,TRIM4#
main71075-33R60-E3i202108-202208
LUXURY PACKAGE,HAZEL,TRIM4#
main71075-33R60-E5i202108-202208
MAUVE,TRIM7#
main71075-33R60-E5i202108-202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,MAUVE,TRIM7#
main71075-33R60-E5i202108-202208
LUXURY PACKAGE,MAUVE,TRIM7#
main71075-33R61-A4i202208
FROMAGE,TRIM0#
main71075-33R61-A4i202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL&SEAT COVER MATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71075-33R61-A4i202208
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71075-33R61-A4i202208
"GRACEFUL ESCORT"*(A)&SEAT COVER MATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71075-33R61-C1i202208
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71075-33R61-C1i202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71075-33R61-C1i202208
BLACK,TRIM2#
main71075-33R61-C1i202208
"GRACEFUL ESCORT"*(A)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71075-33R61-E6i202208
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#
main71075-33R61-E6i202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL&SEAT COVER MATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#
main71075-33R61-E6i202208
HAZEL,TRIM4#
main71075-33R61-E6i202208
"GRACEFUL ESCORT"*(A)&SEAT COVER MATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#
main71075-33R61-E7i202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL&SEAT COVER MATERIAL-LEATHER(SMOOTH),MAUVE,TRIM7#
main71075-33R61-E7i202208
"GRACEFUL ESCORT"*(A)&SEAT COVER MATERIAL-LEATHER(SMOOTH),MAUVE,TRIM7#
main71075-33R61-E7i202208
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),MAUVE,TRIM7#
main71075-33R61-E7i202208
MAUVE,TRIM7#
main71075-33R70-A2i202108-202208
RICH CREAM,TRIM6#
main71075-33R70-A2i202108-202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),RICH CREAM,TRIM6#
main71075-33R70-A2i202108-202208
LUXURY PACKAGE,RICH CREAM,TRIM6#
main71075-33R70-C0i202108-202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM2#
main71075-33R70-C0i202108-202208
BLACK,TRIM2#
main71075-33R70-C0i202108-202208
LUXURY PACKAGE,BLACK,TRIM2#
main71075-33R70-E3i202108-202208
HAZEL,TRIM4#
main71075-33R70-E3i202108-202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),HAZEL,TRIM4#
main71075-33R70-E3i202108-202208
LUXURY PACKAGE,HAZEL,TRIM4#
main71075-33R70-E5i202108-202208
MAUVE,TRIM7#
main71075-33R70-E5i202108-202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),MAUVE,TRIM7#
main71075-33R70-E5i202108-202208
LUXURY PACKAGE,MAUVE,TRIM7#
main71075-33R71-A4i202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVERMATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71075-33R71-A4i202208
FROMAGE,TRIM0#
main71075-33R71-A4i202208
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71075-33R71-A4i202208
"GRACEFUL ESCORT"*(A)&SEAT COVER MATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71075-33R71-C1i202208
BLACK,TRIM2#
main71075-33R71-C1i202208
"GRACEFUL ESCORT"*(A)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71075-33R71-C1i202208
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71075-33R71-C1i202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVERMATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71075-33R71-E6i202208
HAZEL,TRIM4#
main71075-33R71-E6i202208
"GRACEFUL ESCORT"*(A)&SEAT COVER MATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#
main71075-33R71-E6i202208
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#
main71075-33R71-E6i202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVERMATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#
main71075-33R71-E7i202208
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),MAUVE,TRIM7#
main71075-33R71-E7i202208
MAUVE,TRIM7#
main71075-33R71-E7i202208
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVERMATERIAL-LEATHER(SMOOTH),MAUVE,TRIM7#
main71075-33R71-E7i202208
"GRACEFUL ESCORT"*(A)&SEAT COVER MATERIAL-LEATHER(SMOOTH),MAUVE,TRIM7#
main71075-33S10-C0i202110-202208
BLACK,TRIM2#
main71075-33S10-E3i202110-202208
HAZEL,TRIM4#
main71075-33S11-C1i202208-202210
BLACK,TRIM2#
main71075-33S11-E6i202208-202210
HAZEL,TRIM4#
main71075-33S30-A1i202108-202208
WHITE,TRIM26
main71075-33S30-A2i202108-202208
RICH CREAM,TRIM6#
main71075-33S30-C0i202108-202208
BLACK,TRIM2#
main71075-33S30-C0i202108-202208
BLACK,TRIM20,21,23,24
main71075-33S30-D0i202108-202208
RED,TRIM25
main71075-33S30-E2i202108-202208
HAZEL,TRIM4#
main71075-33S30-E3i202108-202208
MAUVE,TRIM7#
main71075-33S31-A3i202208
WHITE,TRIM26
main71075-33S31-A4i202208-202411
FROMAGE,TRIM0#
main71075-33S31-A4i202411
FROMAGE,TRIM00,01,03
main71075-33S31-A5i202411
WHITE,TRIM06,09
main71075-33S31-C1i202208
BLACK,TRIM2#
main71075-33S31-C1i202208
BLACK,TRIM20,21,23,24
main71075-33S31-D1i202208
RED,TRIM25
main71075-33S31-E4i202208
MAUVE,TRIM7#
main71075-33S31-E5i202208
HAZEL,TRIM4#
main71075-33S40-A1i202108-202208
WHITE,TRIM26
main71075-33S40-A2i202108-202208
RICH CREAM,TRIM6#
main71075-33S40-C0i202108-202208
BLACK,TRIM20,24
main71075-33S40-D0i202108-202208
RED,TRIM25
main71075-33S40-E2i202108-202208
HAZEL,TRIM4#
main71075-33S40-E3i202108-202208
MAUVE,TRIM7#
main71075-33S41-A3i202208
WHITE,TRIM26
main71075-33S41-A4i202411
FROMAGE,TRIM00
main71075-33S41-A4i202208-202411
FROMAGE,TRIM0#
main71075-33S41-A5i202411
WHITE,TRIM04,05,06,07,08,09
main71075-33S41-C1i202208
BLACK,TRIM20,24
main71075-33S41-D1i202208
RED,TRIM25
main71075-33S41-E4i202208
MAUVE,TRIM7#
main71075-33S41-E5i202208
HAZEL,TRIM4#
main71075-33S90-C0i202210
BLACK,TRIM2#
main71075-33S90-E0i202210
HAZEL,TRIM4#
71503APAD SUB-ASSY, REAR SEAT CUSHION
main71503-33200i201806-202108
main71503-33210i201807-202108
main71509-33010i201806-202108
main71509-33020i201807-202110
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i201806-202110
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-33190i201807-202110
main73705-33200i201806-202108
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-33190i201807-202110
main73706-33200i201806-202108
73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
main73717-33090-A0i201806-201812
LUXURY PACKAGE,RICH CREAM,TRIM6#
main73717-33090-A0i201806-201812
RICH CREAM,TRIM6#
main73717-33090-A0i201806-201812
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,RICH CREAM,TRIM6#
main73717-33090-A0i201806-201812
ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,RICH CREAM,TRIM6#
main73717-33090-B2i201806-201812
CHATEAU,TRIM1#
main73717-33090-C0i201806-201812
BLACK,TRIM2#
main73717-33090-F0i201806-201812
TOPAZ BROWN,TRIM5#
main73717-33150-A0i201812-202208
RICH CREAM,TRIM6#
main73717-33150-A1i202108
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),WHITE,TRIM26
main73717-33150-A1i202108-202208
WHITE,TRIM0#,26
main73717-33150-A1i202108-202208
WHITE,TRIM0#
main73717-33150-A1i202108-202411
WHITE,TRIM26
main73717-33150-A1i202108
F SPORT,WHITE,TRIM26
main73717-33150-A1i202208
WHITE,TRIM04,05,06,07,08,09,26
main73717-33150-A1i202208
WHITE,TRIM06,09,26
main73717-33150-A1i202208
WHITE,TRIM06,09
main73717-33150-A2i202208
FROMAGE,TRIM00,01,03
main73717-33150-A2i202208
FROMAGE,TRIM00
main73717-33150-A2i202208
FROMAGE,TRIM0#
main73717-33150-B2i201812-202110
CHATEAU,TRIM1#
main73717-33150-C0i202108
BLACK,TRIM21,23,24
main73717-33150-C0i202108-202411
BLACK,TRIM20,24
main73717-33150-C0i201812-202110
BLACK,TRIM2#
main73717-33150-C0i202108
BLACK,TRIM20,21,23,24
main73717-33150-D1i202108-202411
RED,TRIM25
main73717-33150-D1i202108
F SPORT,RED,TRIM25
main73717-33150-D1i202108
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),RED,TRIM25
main73717-33150-E1i202108
HAZEL,TRIM4#
main73717-33150-E2i202108-202210
MAUVE,TRIM7#
main73717-33150-F0i201812-202110
TOPAZ BROWN,TRIM5#
73731COVER, CHILD RESTRAINT SEAT
main73731-33020-A0i201806-202208
RICH CREAM,TRIM6#
main73731-33020-A1i202208
WHITE,TRIM06,09,26
main73731-33020-A1i202208
WHITE,TRIM06,09
main73731-33020-A1i202108-202411
WHITE,TRIM26
main73731-33020-A1i202108
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),WHITE,TRIM26
main73731-33020-A1i202108
F SPORT,WHITE,TRIM26
main73731-33020-A1i202208
WHITE,TRIM04,05,06,07,08,09,26
main73731-33020-A1i202108-202208
WHITE,TRIM0#,26
main73731-33020-A1i202108-202208
WHITE,TRIM0#
main73731-33020-A2i202208
FROMAGE,TRIM00,01,03
main73731-33020-A2i202208
FROMAGE,TRIM0#
main73731-33020-A2i202208
FROMAGE,TRIM00,01,02,03
main73731-33020-B2i201806-202110
CHATEAU,TRIM1#
main73731-33020-C0i202108
BLACK,TRIM2#,3#
main73731-33020-C0i201806-202110
BLACK,TRIM2#
main73731-33020-C0i202108-202411
BLACK,TRIM20,21,22,23,24
main73731-33020-C0i202108
BLACK,TRIM21,22,23,24,3#
main73731-33020-C0i202108
BLACK,TRIM20,21,22,23,24,3#
main73731-33020-D1i202108
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),RED,TRIM25
main73731-33020-D1i202108-202411
RED,TRIM25
main73731-33020-D1i202108
F SPORT,RED,TRIM25
main73731-33020-E1i202108
HAZEL,TRIM4#
main73731-33020-E2i202108-202210
MAUVE,TRIM7#
main73731-33020-F0i201806-202110
TOPAZ BROWN,TRIM5#
73733COVER, CHILD RESTRAINT SEAT BASE
main73733-33010-A0i201806-201812
LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,RICH CREAM,TRIM6#
main73733-33010-A0i201806-201812
ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL,RICH CREAM,TRIM6#
main73733-33010-A0i201806-201812
RICH CREAM,TRIM6#
main73733-33010-A0i201806-201812
LUXURY PACKAGE,RICH CREAM,TRIM6#
main73733-33010-B2i201806-201812
CHATEAU,TRIM1#
main73733-33010-C0i201806-201812
BLACK,TRIM2#
main73733-33010-F0i201806-201812
TOPAZ BROWN,TRIM5#
main73733-33020-A0i201812-202208
RICH CREAM,TRIM6#
main73733-33020-A1i202208
WHITE,TRIM06,09,26
main73733-33020-A1i202108-202208
WHITE,TRIM0#,26
main73733-33020-A1i202108-202208
WHITE,TRIM0#
main73733-33020-A1i202108-202411
WHITE,TRIM26
main73733-33020-A1i202108
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),WHITE,TRIM26
main73733-33020-A1i202108
F SPORT,WHITE,TRIM26
main73733-33020-A1i202208
WHITE,TRIM04,05,06,07,08,09,26
main73733-33020-A1i202208
WHITE,TRIM06,09
main73733-33020-A2i202208
FROMAGE,TRIM0#
main73733-33020-A2i202208
FROMAGE,TRIM00,01,03
main73733-33020-A2i202208
FROMAGE,TRIM00,01,02,03
main73733-33020-B2i201812-202110
CHATEAU,TRIM1#
main73733-33020-C0i202108-202411
BLACK,TRIM20,21,22,23,24
main73733-33020-C0i202108
BLACK,TRIM21,22,23,24,3#
main73733-33020-C0i202108
BLACK,TRIM20,21,22,23,24,3#
main73733-33020-C0i201812-202110
BLACK,TRIM2#
main73733-33020-C0i202108
BLACK,TRIM2#,3#
main73733-33020-D1i202108
F SPORT,RED,TRIM25
main73733-33020-D1i202108
THAILAND SPEC&F SPORT&AIR CONDITIONER-2ZONE MODE CONTROL & W(HUMIDITY SENSOR),RED,TRIM25
main73733-33020-D1i202108-202411
RED,TRIM25
main73733-33020-E1i202108
HAZEL,TRIM4#
main73733-33020-E2i202108-202210
MAUVE,TRIM7#
main73733-33020-F0i201812-202110
TOPAZ BROWN,TRIM5#
79977FELT, SEATBACK
main79977-33100i202004-202110
87510PHEATER ASSY, SEAT
main87510-33600i202001-202110
87510QHEATER ASSY, SEAT
main87510-33610i202001-202110
9011908C96
main90119-08C96
9016740044
main90167-40044
9167180820
main91671-80820

15 parts on this diagram · 5 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
