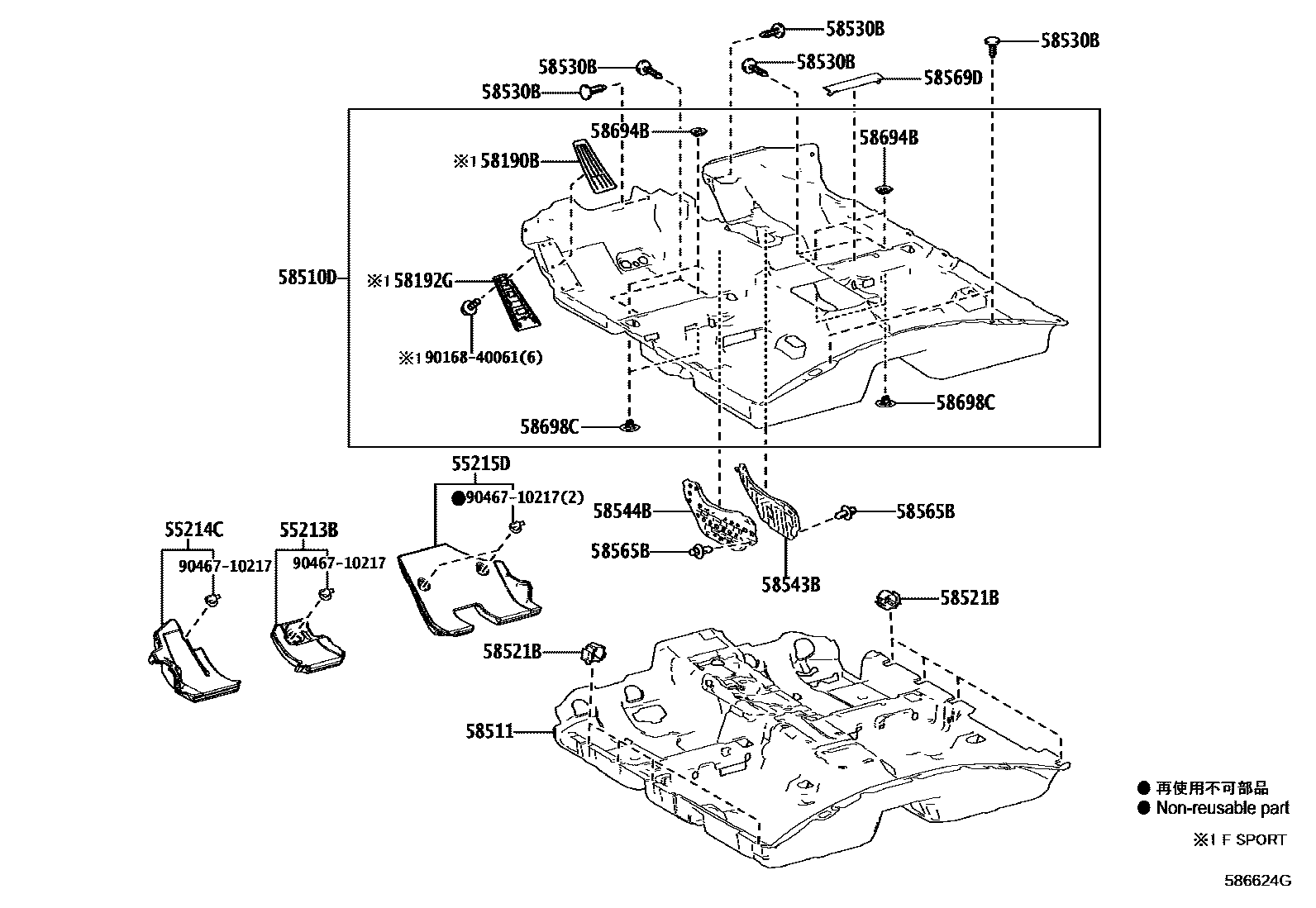

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58190BREST ASSY, FRONT FLOOR FOOT
TAIWAN SPEC&F SPORT
F SPORT
58192GPANEL, FOOTREST, NO.2
F SPORT
BRUNEI SPEC&F SPORT
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
F SPORT,CARPET,TRIM2#
F SPORT,CARPET,TRIM2#
F SPORT,CARPET,TRIM2#
F SPORT,BLACK,TRIM2#
TAIWAN SPEC&F SPORT,BLACK,TRIM2#
F SPORT,CARPET,TRIM2#
58511MAT, FLOOR, FRONT
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
58543BBRACKET, FLOOR CARPET, RH
58544BBRACKET, FLOOR CARPET, LH
58565BCLIP
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,2#,4#,6#,7#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9016840061
main90168-40061
9046710217
main90467-10217
17 parts on this diagram · 4 diagrams in section
