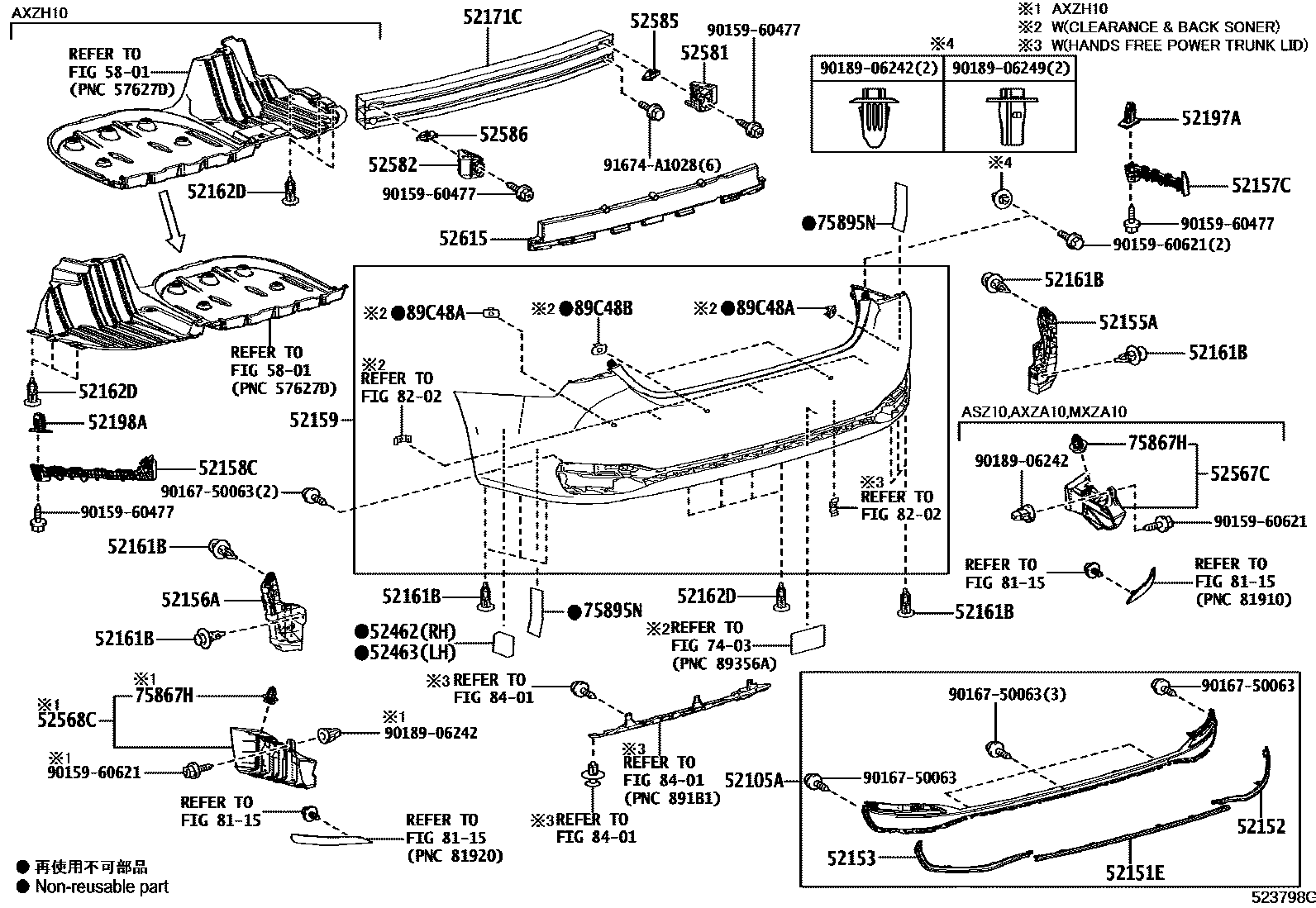

REAR BUMPER & BUMPER STAY
52105ABUMPER SUB-ASSY, REAR CENTER
KAZAKHSTAN SPEC&F SPORT
52151EBAR, REAR BUMPER
PLATED,BRUNEI SPEC&F SPORT&HANDS FREE POWER TRUNK LID-WITH&BLIND SPOT MONITOR-WITH
52152BAR, REAR BUMPER, RH
PLATED,BRUNEI SPEC&F SPORT&HANDS FREE POWER TRUNK LID-WITH&BLIND SPOT MONITOR-WITH
52153BAR, REAR BUMPER, LH
PLATED,BRUNEI SPEC&F SPORT&HANDS FREE POWER TRUNK LID-WITH&BLIND SPOT MONITOR-WITH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,EGYPT SPEC&LUXURY PACKAGE&HANDS FREE POWER TRUNK LID-WITH
PAINT REQ.,F SPORT&BLIND SPOT MONITOR-WITH
PAINT REQ.,F SPORT&HANDS FREE POWER TRUNK LID-WITH
PAINT REQ.,PREMIUM PACKAGE&HANDS FREE POWER TRUNK LID-WITH&BLIND SPOT MONITOR-WITH
52161BPIECE, REAR BUMPER
sub52161-0K040
52162DPIECE, REAR BUMPER
sub52161-0K040
52171CREINFORCEMENT, REAR BUMPER
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
NO PAINT REQ.
52463PAD, REAR BUMPER, LH
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52585INSERT, REAR BUMPER PROTECTOR, RH
52586INSERT, REAR BUMPER PROTECTOR, LH
52615ABSORBER, REAR BUMPER ENERGY
5801
7403
75867HCLIP, ROCKER PANEL MOULDING
75895NTAPE, MOULDING, NO.1
8115
8202
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9015960477
main90159-60477
9015960621
main90159-60621
9016750063
main90167-50063
9018906242
main90189-06242
9018906249
main90189-06249
91674A1028
main91674-A1028
38 parts on this diagram · 3 diagrams in section
