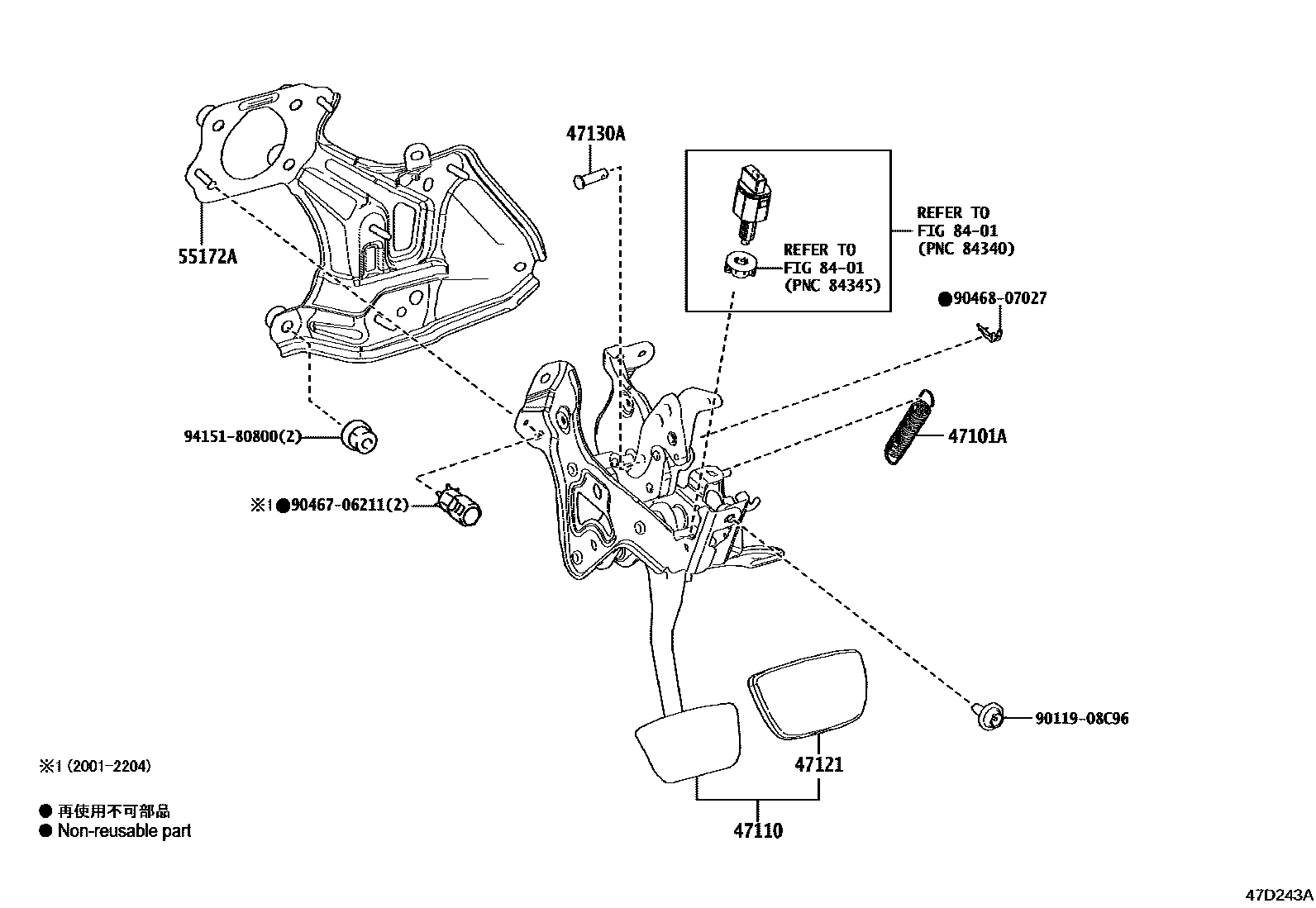

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

47110SUPPORT ASSY, BRAKE PEDAL

main47110-33340iASZ10,AXZA10,GSZ10,MXZA10..LHD201806-202108

sub47110-33341

main47110-33341iAXZA10,GSZ10,MXZA10..LHD202108

main47110-33360iAXZA10..RHD201806-202108

sub47110-33361

main47110-33361iAXZA10..RHD202108

main47110-33370iAXZH10..LHD201807-202108

sub47110-33371

main47110-33371iAXZH10..LHD202108

main47110-33490iAXZH10..RHD201807-202110

sub47110-33491

main47110-33491iAXZH10..RHD202108

47121PAD, BRAKE PEDAL

main47121-48010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

main47121-62010iAXZA10,AXZH10,GSZ10,MXZA10202108

47130APIN, BRAKE PEDAL LINK

main90240-08078iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

55172ABASE, BRAKE PEDAL SUPPORT

main55172-33040iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD201806-202108

main55172-33050iAXZA10,AXZH10..RHD201806-202110

8401

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800

10 parts on this diagram · 3 diagrams in section
