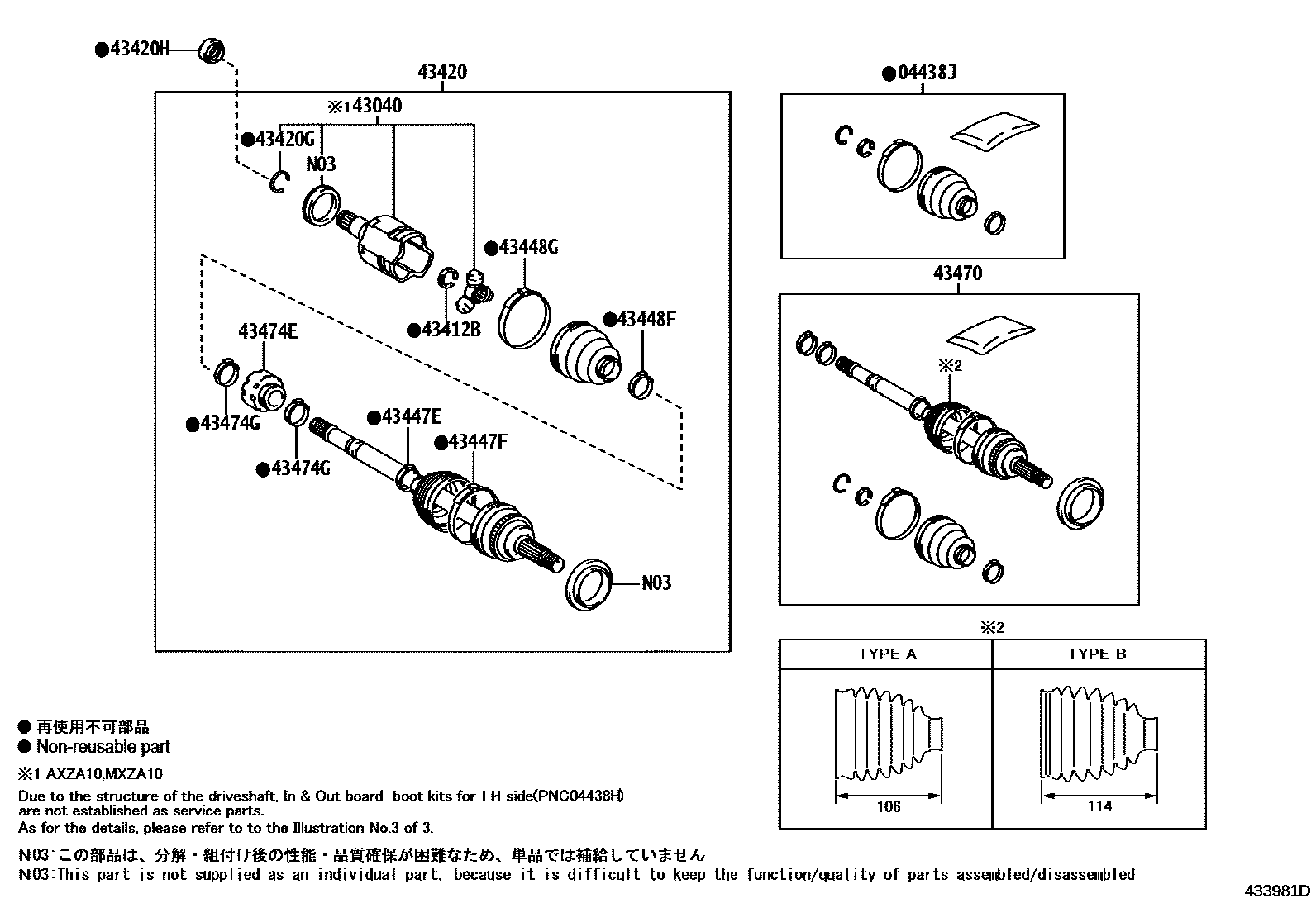

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1 0004 1LH 0005 1LH 0006 1RH 0007 1RH 0008 1 0009 1LH 0010 1RH 0011 1LH 0012 1RH

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-33090iAXZH10..ARL,CHI,EUR,GCC,GEN201807-202108

main04438-06680iAXZH10..IND202001-202110

main04438-06681iAXZH10..IND202207

main04438-33150iGSZ10201806-202108

main04438-33160iASZ10,AXZA10201806-201812

main04438-33170iASZ10,AXZA10,MXZA10201901-202108

main04438-48160iAXZH10..ARL,CHI,EUR,GCC,GEN202108

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-33030iAXZH10..ARL,CHI,EUR,GCC,GEN201807-202108

main43404-06010iAXZH10..IND202001-202110

main43404-33010iGSZ10201806-202108

main43404-33020iAXZA10201806-201812

main43404-33021iAXZA10,MXZA10202108

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-06340iASZ10,AXZA10201806-201901

main43425-06500iAXZH10..IND202110-202207

main43425-06570iAXZH10..IND202207

main43425-12020iAXZA10,MXZA10202108

main43425-28010iAXZH10..ARL,CHI,EUR,GCC,GEN201807-202108

main43425-58030iGSZ10202108

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-06C30iAXZH10..IND202110-202207

main43420-06C31iAXZH10..IND202207

main43420-33340iAXZH10..ARL,CHI,EUR,GCC,GEN201807-202108

main43420-33350iGSZ10201806-202108

main43420-33380iAXZA10201806-202108

main43420-33381iAXZA10202211

main43420-33390iASZ10201806-202108

main43420-33400iMXZA10202108-202210

main43420-33401iMXZA10202211

main43420-48180iAXZH10..ARL,CHI,EUR,GCC,GEN202108

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-06360iASZ10,AXZA10201806-201901

main43425-06520iAXZH10..IND202110

main43425-10040iASZ10,AXZA10,MXZA10201901-202108

main43425-78050iGSZ10201806-202108

main90521-33002iAXZH10..ARL,CHI,EUR,GCC,GEN202108

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50045iASZ10201806-201903

main90311-50058iMXZA10..CHI;AXZA10,AXZH10201806-202110

main90311-50059iGSZ10201806-202004

TOYOTA:REFER 35-01

main90311-50064iASZ10201904-202108

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-06730iASZ10,AXZA10201806-201901

main42345-06B40iAXZH10..IND202110

main42345-42100iAXZH10..ARL,CHI,EUR,GCC,GEN202108

main42345-42120iAXZH10..ARL,CHI,EUR,GCC,GEN201807-202108

main42345-48160iGSZ10201806-202108

main42345-74150iAXZA10,MXZA10202108

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-06720iASZ10,AXZA10201806-201901

main42345-06B50iAXZH10..IND202110

main42345-42090iAXZH10..ARL,CHI,EUR,GCC,GEN202108

main42345-42110iAXZH10..ARL,CHI,EUR,GCC,GEN201807-202108

main42345-74140iASZ10,AXZA10,MXZA10201901-202108

main42345-78050iGSZ10202108

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-06B30iAXZH10..IND202001-202110

main42345-12350iASZ10,AXZA10,MXZA10201901-202108

main42345-28090iAXZH10..ARL,CHI,EUR,GCC,GEN202310

main42345-33120iAXZH10..ARL,CHI,EUR,GCC,GEN202108-202310

main42345-48140iGSZ10201806-202108

main42345-F4110iASZ10,AXZA10201806-201901

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-06B20iAXZH10..IND202110

main42345-33140iAXZH10..ARL,CHI,EUR,GCC,GEN201807-202108

main42345-33160iASZ10,AXZA10,MXZA10201806-202108

main42345-48130iGSZ10202108

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-06C40iAXZH10..IND202110-202207

main43470-39635iGSZ10202108

main43470-39665iASZ10,AXZA10201806-201901

main43470-39666iASZ10,AXZA10201901-202108

main43470-39667iAXZA10202211

TYPE B:REFER ILLUST.

main43470-39685iMXZA10202108-202211

TYPE A:REFER ILLUST.

main43470-39686iMXZA10202211

TYPE B:REFER ILLUST.

main43470-80459iAXZH10..ARL,CHI,EUR,GCC,GEN201807-202108

main43470-80482iAXZH10..ARL,CHI,EUR,GCC,GEN202108

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-06560iAXZH10..IND202001-202110

main43474-33070iASZ10,AXZA10201806-201903

main43474-33071iASZ10,AXZA10,MXZA10201904-202108

main43474-33072iAXZA10,MXZA10202211

PNC 43470=TYPE B

main43474-42050iGSZ10201902-202108

main43474-58020iGSZ10201806-201901

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-06B70×2iAXZH10..IND202110

main42345-12090×2iAXZH10..ARL,CHI,EUR,GCC,GEN202108

main42345-33150×2iASZ10,AXZA10,MXZA10201806-202108

main42345-58060×2iGSZ10202108

13 parts on this diagram · 12 diagrams in section
