OIL COOLER & TUBE (HEV OR BEV OR FCEV)

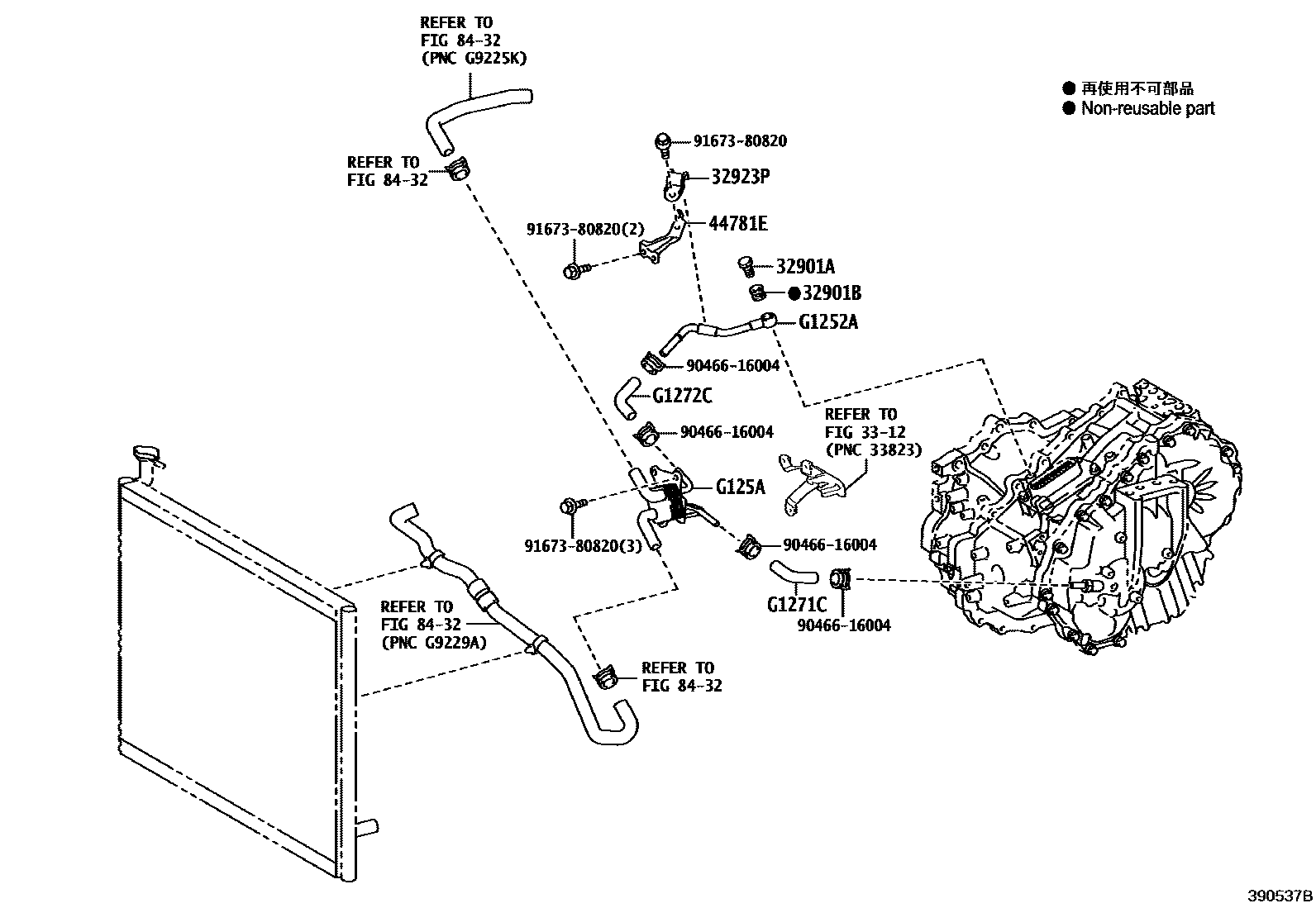

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i201807-202110

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i201807-202110

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i201807-202110

3312

44781EBRACKET, HOSE

main44781-33020i201807-202110

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010i201807-202110

G125ACOOLER, MOTOR COOLING

mainG125A33010i201807-202110

G1271CHOSE, MOTOR COOLING, NO.1

mainG127133010i201807-202110

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010i201807-202110

9046616004

main90466-16004

9167380820

main91673-80820

12 parts on this diagram · 1 diagram in section
