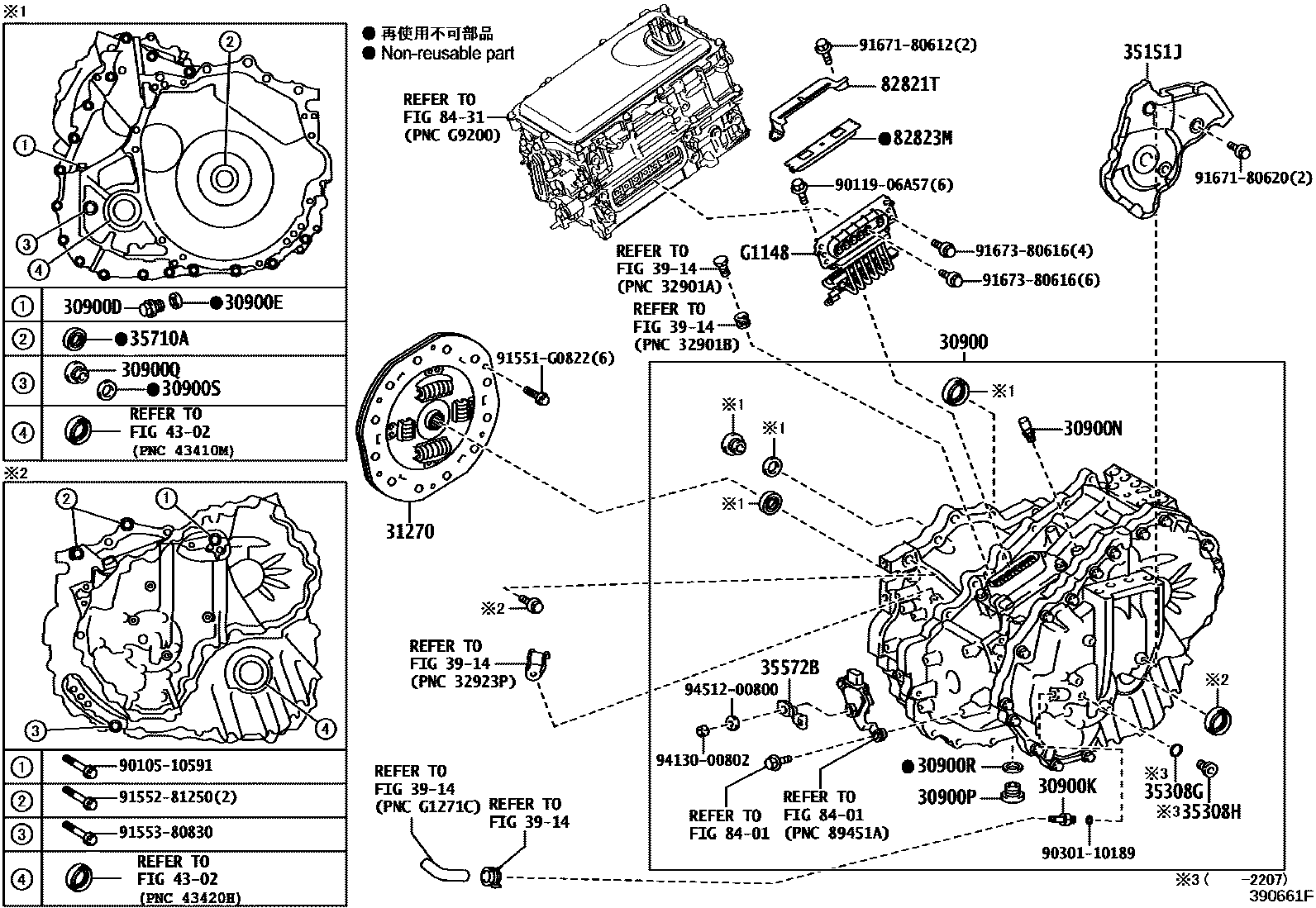

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
W/O(LABEL)
W(LABEL)
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
35151JCOVER, AUTOMATIC TRANSMISSION CASE
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35572BLEVER, TRANSMISSION, OUTER
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
3914
4302
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8401
8431
G1148CABLE, MOTOR
9010510591
9011906A57
9030110189
91551G0822
9155281250
9155380830
9167180612
9167180620
9167380616
9413000802
9451200800
33 parts on this diagram · 1 diagram in section
