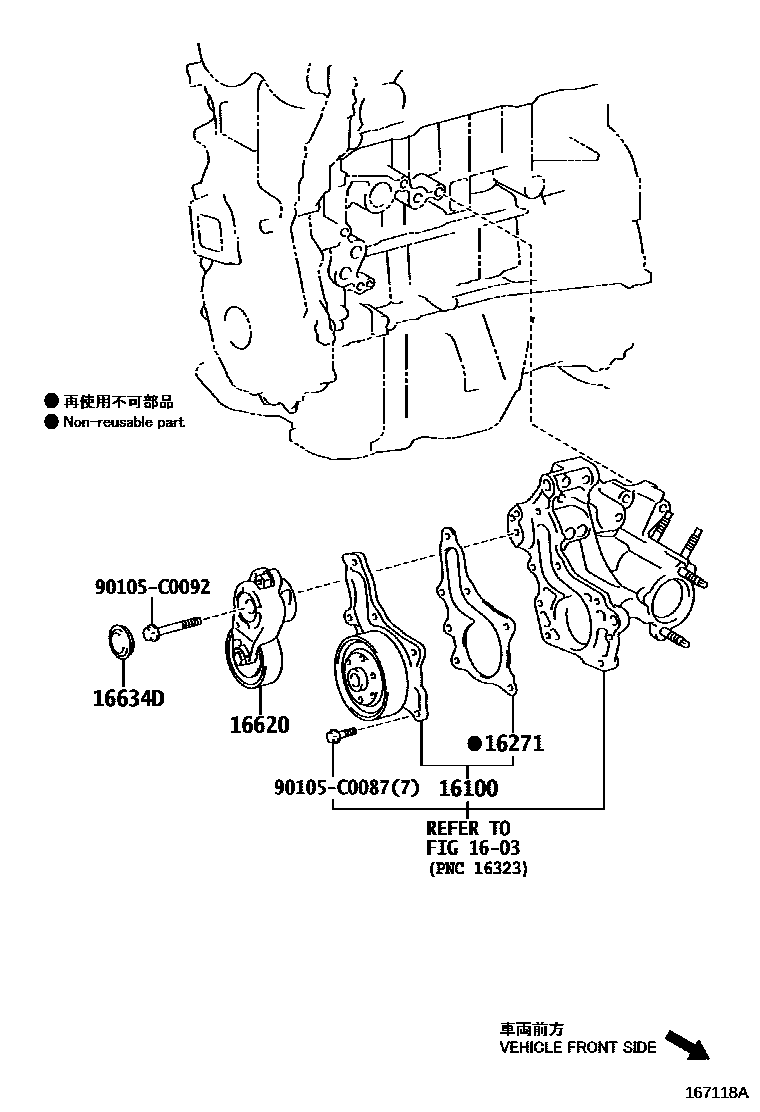

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09700i6ARFSE..ASZ10..CHI201806-202007

main16100-39615i2GRFKS..GSZ10201806-202004

sub16100-39616

main16100-39616i2GRFKS..GSZ10202004-202108

16271GASKET, WATER PUMP

main16271-0V010i6ARFSE..ASZ10..CHI201806-202007

main16271-31050i2GRFKS..GSZ10201806-202108

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V051i6ARFSE..ASZ10..EUR201806-202007

main16620-31090i2GRFKS..GSZ10201806-202108

16634DCOVER, DUST

main16628-0V010i6ARFSE..ASZ10..CHI201806-202007

90105C0087

main90105-C0087

90105C0092

main90105-C0092

7 parts on this diagram · 2 diagrams in section
