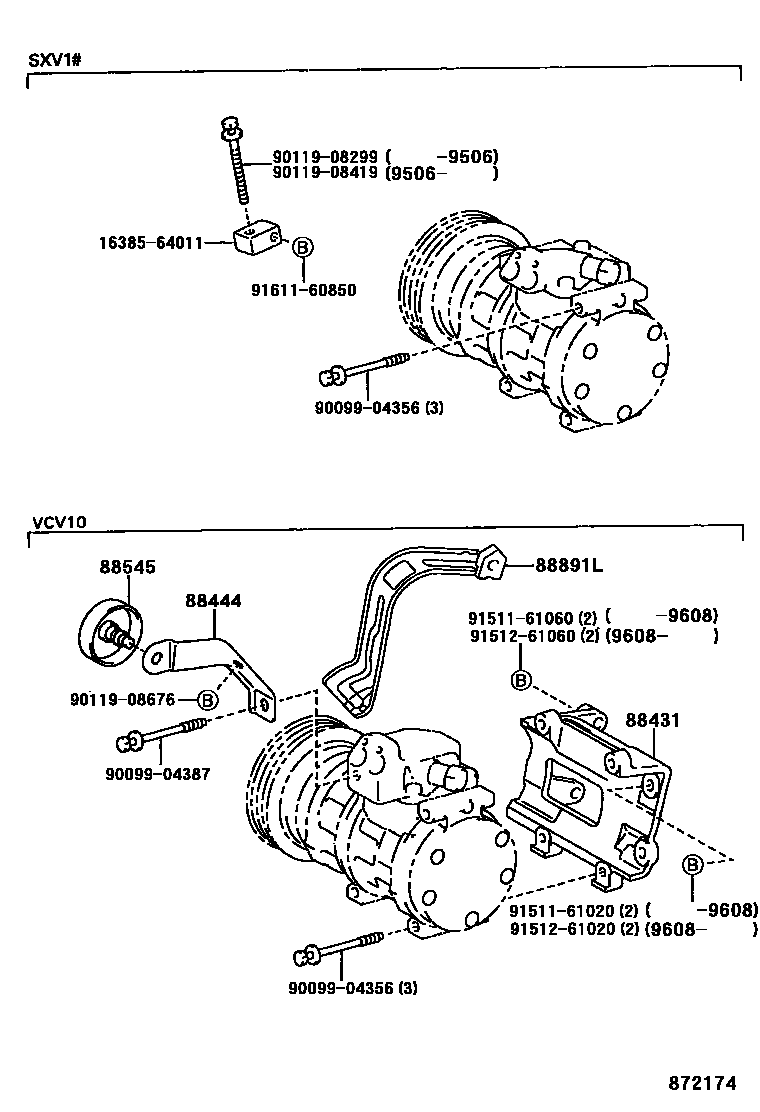

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-33010iVCV10..JPP199208-199708

main88431-33020iMCV10..JPP199708

88444BRACKET, IDLE PULLEY

main88444-33012iVCV10..JPP199208-199708

88545PULLEY ASSY, IDLE

main88440-33010iVCV10..JPP199208-199708

88891LCOVER, COOLER, NO.1

main88891-33041iVCV10..JPP199208-199708

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

9009904356

main90099-04356

9009904387

main90099-04387

9011908299

main90119-08299

9011908419

main90119-08419

9011908676

main90119-08676

9151161020

main91511-61020

9151161060

main91511-61060

9151261020

main91512-61020

9151261060

main91512-61060

9161160850

main91611-60850

15 parts on this diagram · 4 diagrams in section
