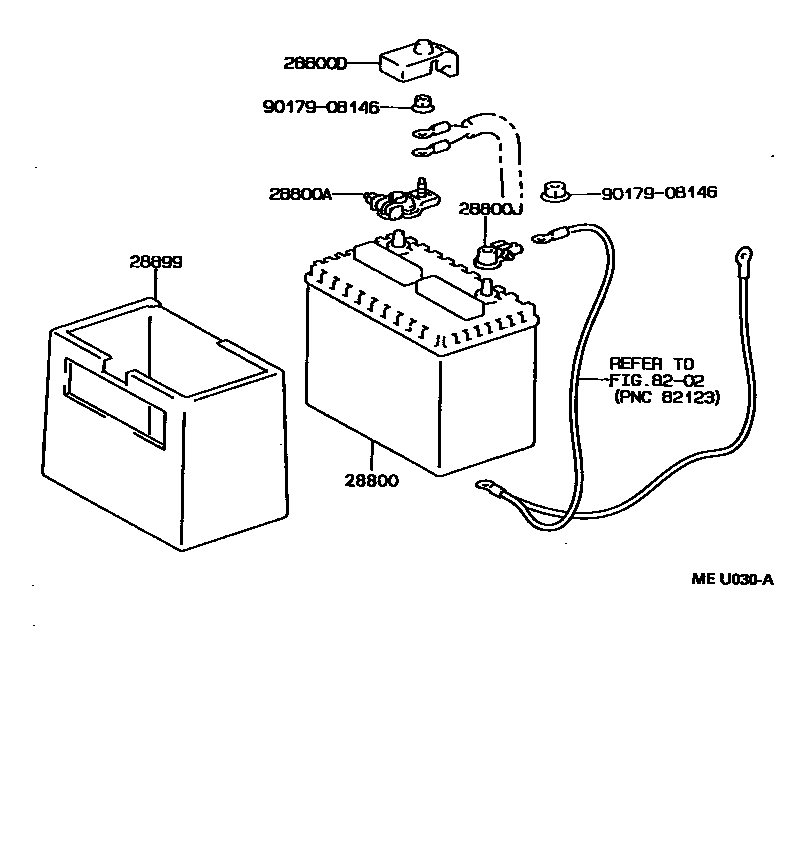

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42030i3SFE,5SFE,3VZFE..SXV1#,VCV10..JPP199208-199708

55D23L

sub28800-64010

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i3SFE,5SFE,3VZFE..SXV1#,VCV10..JPP199208-199708

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1MZFE,3SFE,5SFE,3VZFE..MCV10,SXV1#,VCV10..JPP199208

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i3SFE,5SFE,3VZFE..SXV1#,VCV10..JPP199208-199708

28899INSULATOR, BATTERY

main28899-62050i3VZFE..VCV10..JPP199208-199308

sub28899-62051

main28899-62051i3VZFE..VCV10..JPP199308-199708

8202

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
