BATTERY CARRIER

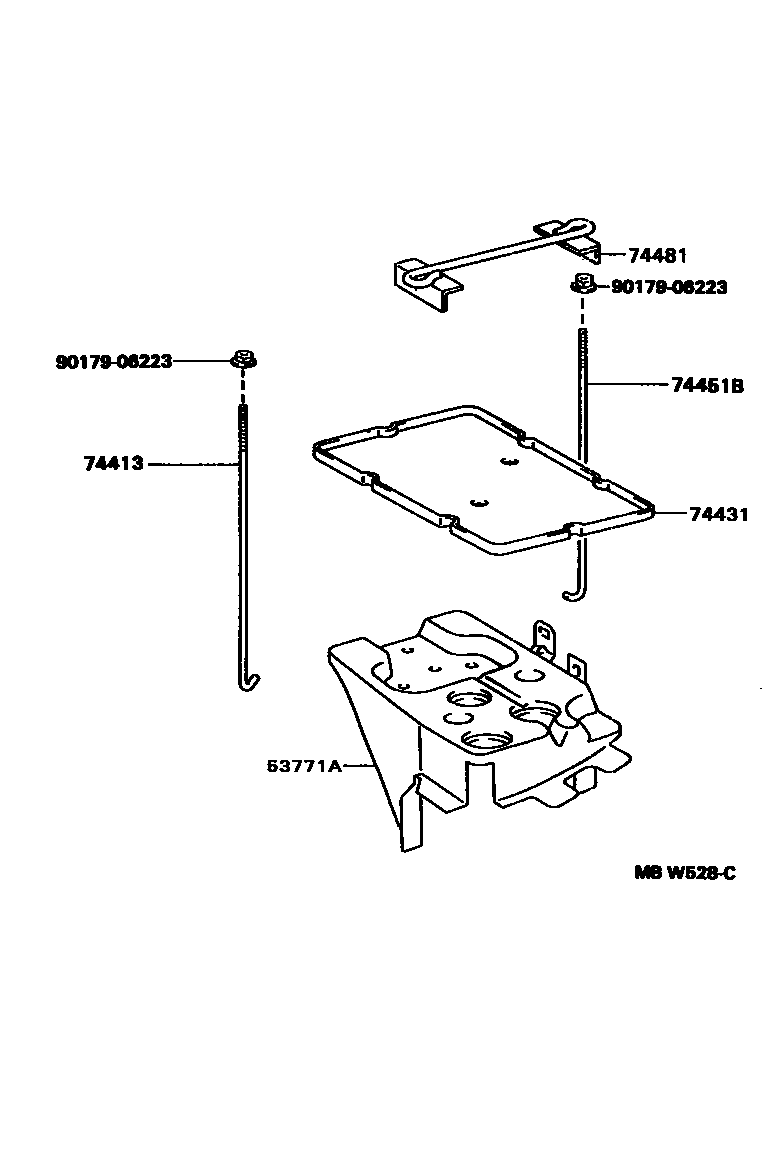

Parts diagram
53771ASUPPORT, BATTERY CARRIER
main53704-33010i199208-199708
sub53704-33011
74413BOLT, BATTERY CLAMP
main74451-33010i199208-199708
74431TRAY, BATTERY
main74431-33010i199208-199611
sub74431-33011
main74431-33011i199611-199708
74451BBOLT, BATTERY CLAMP
main74452-33010i199208-199708
74481CLAMP, BATTERY HOLD DOWN
main74404-33010i199208-199211
sub74404-33030
main74404-33030i199211-199708
9017906223
main90179-06223

6 parts on this diagram · 1 diagram in section
