FLOOR SIDE MEMBER

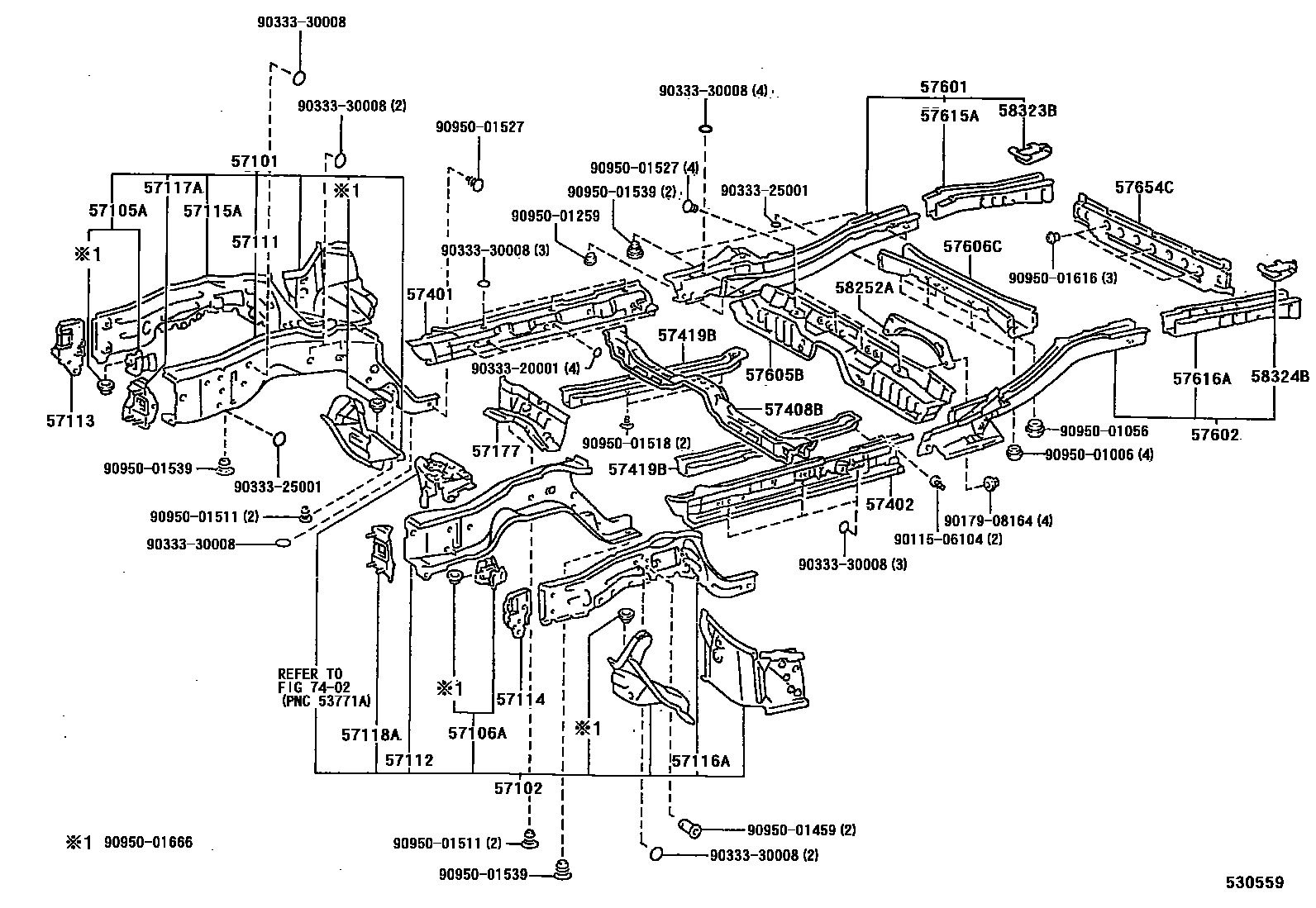

Parts diagram
57101MEMBER SUB-ASSY, FRONT SIDE, RH
main57101-33010i199208-199708
sub57101-33030
57102MEMBER SUB-ASSY, FRONT SIDE, LH
main57102-33010i199208-199402
sub57102-33020
sub90333-30004
main57102-33020i199402-199708
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
main57105-33010i199208-199301
sub57105-33011
main57105-33011i199301-199608
sub57105-33020
main57105-33020i199408
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
main57106-33010i199208-199301
sub57106-33011
main57106-33011i199301-199608
sub57106-33020
main57106-33020i199601
57111MEMBER, FRONT SIDE, RH
main57111-33010i199208-199708
sub57111-33030
57112MEMBER, FRONT SIDE, LH
main57112-33010i199208-199402
sub57112-33020
sub90333-30004
main57112-33020i199402-199708
sub57112-33021
57113EXTENSION, FRONT SIDE MEMBER, RH
main57113-33010i199208
57114EXTENSION, FRONT SIDE MEMBER, LH
main57114-33010i199208
57115APLATE, FRONT SIDE MEMBER, OUTER RH
main57115-33010i199208-199708
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57116-33010i199208-199708
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
main57117-33010i199208-199402
sub57117-41010
main57117-41010i199402-199708
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
main57118-33010i199208-199402
sub57118-41010
main57118-41010i199402-199708
57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
main57177-33010i199208
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
main57401-33010i199208-199708
sub57401-33030
sub90333-30004
main57401-33020i199408-199608
sub57401-33060
main57401-33040i199308-199408
sub57401-33020
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
main57402-33010i199208-199708
sub57402-33030
sub90333-30004
main57402-33020i199408-199608
sub57402-33060
main57402-33040i199308-199408
sub57402-33020
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
main57408-33010i199208-199408
main57408-33020i199408-199608
main57408-33030i199308-199408
sub57408-33020
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
main57419-33010i199208
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
main57601-33010i199208-199308
sub57601-33020
sub90333-30004
main57601-33020i199308-199608
sub57601-33060
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
main57602-33010i199208-199311
sub57602-33030
sub90333-30004
main57602-33030i199308-199408
sub57602-33031
sub77216-33010
sub77217-33010
main57602-33031i199311-199708
sub57602-33041
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
main57605-33010i199208-199308
sub57605-33020
main57605-33020i199308-199708
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
main57606-33010i199508-199608
LATIN AMERICA SPEC & W(ABS)
main57606-33010i199208-199608
main57606-33030i199208-199708
W(ABS)
57615AMEMBER, REAR FLOOR SIDE, REAR RH
main57615-33900i199208-199708
sub57615-33902
57616AMEMBER, REAR FLOOR SIDE, REAR LH
main57616-33900i199208-199311
sub57616-33901
sub77216-33010
sub77217-33010
main57616-33901i199311-199708
57654CMEMBER, REAR FLOOR CROSS, NO.3
main57654-33010i199208-199708
58252ABRACE, FLOOR PANEL, REAR
main58252-33010i199208-199708
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
main58303-33010i199208
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
main58303-33020i199208
7402
9011506104
main90115-06104
9017908164
main90179-08164
9033320001
main90333-20001
9033325001
main90333-25001
9033330008
main90333-30008
9095001006
main90950-01006
9095001056
main90950-01056
9095001259
main90950-01259
9095001459
main90950-01459
9095001511
main90950-01511
9095001518
main90950-01518
9095001527
main90950-01527
9095001539
main90950-01539
9095001616
main90950-01616
9095001666
main90950-01666

43 parts on this diagram · 1 diagram in section
