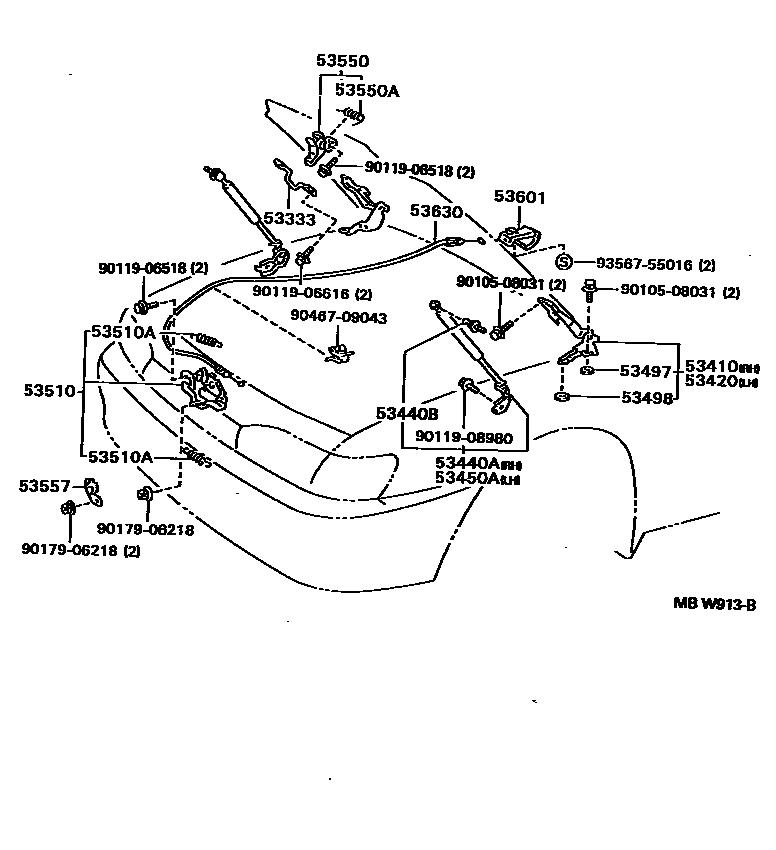

HOOD LOCK & HINGE
53333STRIKER, HOOD LOCK
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
(L)
(J)
53440BBOLT, HOOD SUPPORT, NO.1
53450ASUPPORT ASSY, HOOD, LH
(L)
(J)
53497PAD, HOOD HINGE, NO.1
T=1.0
53498PAD, HOOD HINGE, NO.2
T=1.0
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=20.5
WD=1.8,CW=18
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53557CATCH, HOOD AUXILIARY HOOK
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
9010508031
main90105-08031
9011906518
main90119-06518
9011906616
main90119-06616
9011908980
main90119-08980
9017906218
main90179-06218
9046709043
main90467-09043
9356755016
main93567-55016
22 parts on this diagram · 2 diagrams in section
