STEERING COLUMN & SHAFT

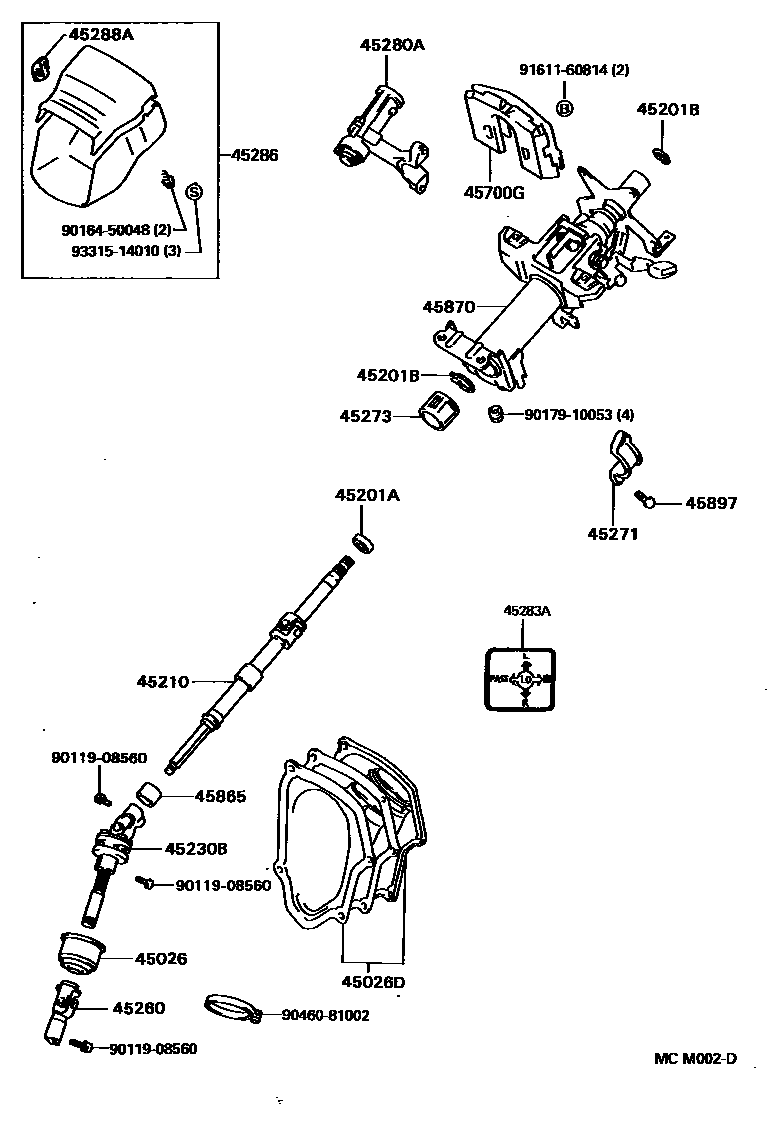

Parts diagram
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
main45026-33010i199208-199608
main45026-33020i199208
main45026-33020i199508-199608
W(*80)
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
main45025-33010i199208-199608
main45025-33020i199208
45201ABEARING(FOR STEERING MAIN SHAFT)
main90363-18005i199208-199508
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main90520-17004i199208
T=1.20,UPPER
main90520-23055i199208
T=1.20,LOWER
45210SHAFT ASSY, STEERING MAIN
main45210-33010i199208
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
main45230-33010i199208-199608
main45230-33020i199508-199608
W(*80)
main45230-33020i199208
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45260-33010i199208-199501
sub45260-33030
main45260-33020i199208-199405
sub45260-33040
main45260-33030i199501-199608
sub45260-33031
main45260-33040i199508-199608
W(*80)
main45260-33040i199405
45271CLAMP, STEERING COLUMN, UPPER
main45271-33010i199208
45273BUSH, STEERING MAIN SHAFT
main45273-33010i199208
45280ABRACKET ASSY, STEERING COLUMN, UPPER
main45280-33020i199508-199608
W(*80)
sub45280-33060
main45280-33020i199208
sub45280-33060
main45280-33050i199208-199608
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
main45283-22010i199408-199601
45286COVER, STEERING COLUMN
main45286-33900-22i199208-199308
BLACK,TRIM1#,4#,8#
sub45286-33915
main45286-33900-22i199308-199503
BLACK,TRIM1#,4#
sub45286-33915
main45286-33901-22i199308-199508
W(*80),BLACK,TRIM1#,4#
sub45286-33901
main45286-33901-22i199208-199308
W(*80),BLACK,TRIM1#,4#,8#
sub45286-33901
main45286-33902-E0i199208-199408
OAK,TRIM4#
sub45286-33902
main45286-33902-S4i199208-199601
MEDIUM GRAY,TRIM1#
sub45286-33902
main45286-33902-S4i199408-199508
W(*80),MEDIUM GRAY,TRIM1#
sub45286-33902
main45286-33905-22i199208-199503
W(CRUISE CONTROL),BLACK,TRIM1#,4#
sub45286-33905
sub45286-33914
main45286-33906-E0i199208-199408
W(CRUISE CONTROL),OAK,TRIM4#
sub45286-33906
main45286-33906-S4i199208-199508
W(CRUISE CONTROL),MEDIUM GRAY,TRIM1#
sub45286-33906
main45286-33914-C0i199503-199608
W(CRUISE CONTROL),BLACK,TRIM1#,4#
sub45286-33915
main45286-33915-C0i199503-199608
BLACK,TRIM1#,4#
sub45286-33915
main45286-33916-B0i199601
MEDIUM GRAY,TRIM1#
45288ASPACER, COLUMN COVER
main45288-33010-22i199208-199308
BLACK,TRIM1#,4#,8#
sub45288-33010
main45288-33010-22i199308-199608
BLACK,TRIM1#,4#
sub45288-33010
main45288-33010-E0i199208-199408
OAK,TRIM4#
sub45288-33010
main45288-33010-S4i199208
MEDIUM GRAY,TRIM1#
sub45288-33010
45700GDAMPER ASSY, STEERING
main45700-33010i199208-199301
main45700-33020i199208-199608
45865COLLAR, STEERING MAIN SHAFT
main45865-33010i199208
45870TUBE ASSY, STEERING COLUMN
main45870-33050i199208-199508
W(*80)
main45870-33070i199208
main45870-33090i199302-199708
W(*80)
main45870-33090i199708
main45870-33100i199208-199608
main45870-33170i199508-199608
W(*80)
45897BOLT, STEERING LOCK SET
main45897-12020i199208
9011908560
main90119-08560
9016450048
main90164-50048
9017910053
main90179-10053
9046081002
main90460-81002
9161160814
main91611-60814
9331514010
main93315-14010

23 parts on this diagram · 1 diagram in section
