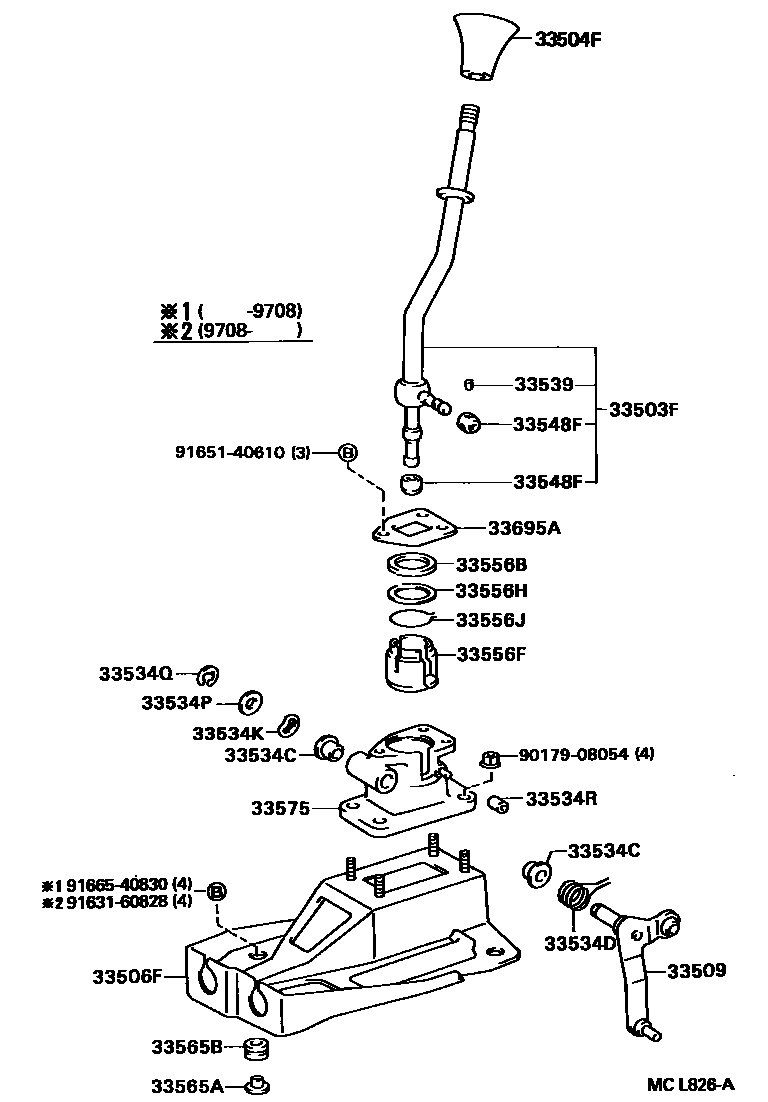

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
33509CRANK SUB-ASSY, SELECTING BELL, NO.1
33534CBUSH (FOR SELECTING BELLCRANK NO.1)
33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)
33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
33534QRING, E (FOR SELECTING BELLCRANK NO.1)
33534RCUSHION (FOR SELECTING BELLCRANK NO.1)
33539CUSHION, SHIFT LEVER ANTI-RATTLE
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
33556HSHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
T=0.5,MARK=A
T=0.6,MARK=B
T=0.7,MARK=C
T=0.8,MARK=D
T=0.9,MARK=E
T=1.0,MARK=F
T=1.1,MARK=G
T=1.2,MARK=H
T=1.3,MARK=J
T=1.4,MARK=K
T=1.5,MARK=L
T=1.6,MARK=M
T=1.7,MARK=N
33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)
33565ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE)
33565BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE)
33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33695ACOVER, SHIFT LEVER BALL
9017908054
main90179-08054
9163160828
main91631-60828
9165140610
main91651-40610
9166540830
main91665-40830
24 parts on this diagram · 6 diagrams in section
