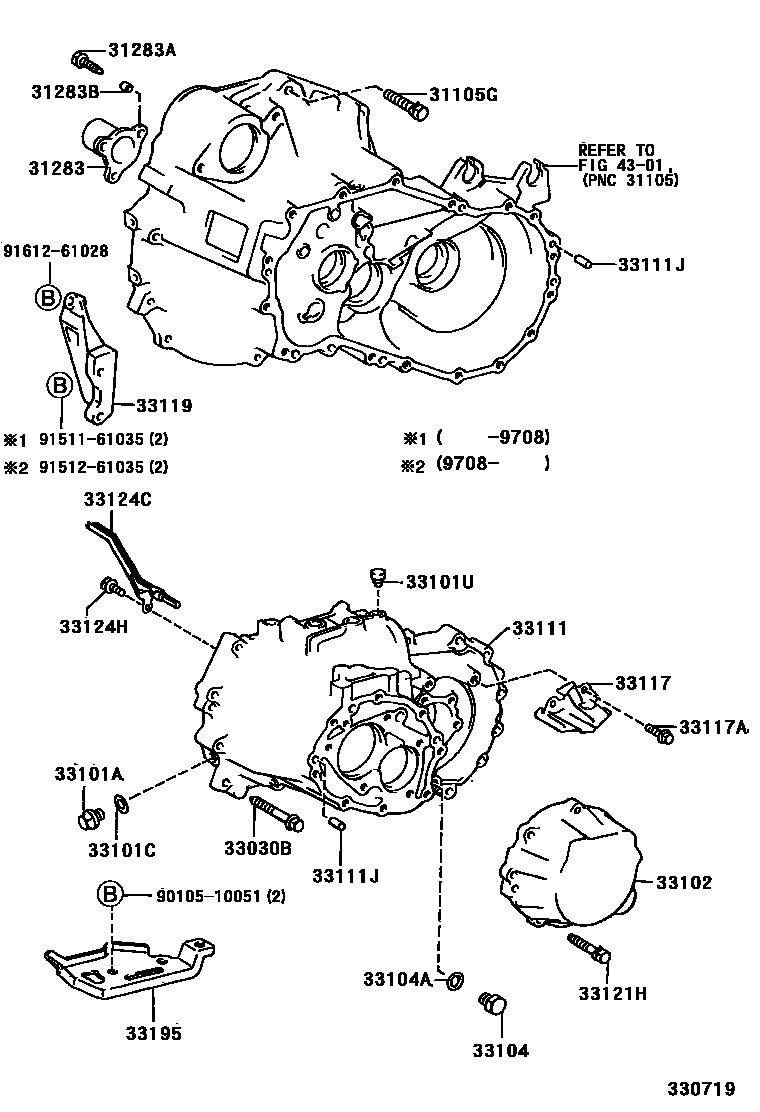

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX43-26
*12-1.25PX72-25
*12-1.25PX55-30
*12-1.25PX60-30
*10-1.25PX22-22
31283RETAINER, CLUTCH RELEASE BEARING HUB
31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)
sub91511-B0620
31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
L=24,OD=12
33117PROTECTOR, MANUAL TRANSMISSION CASE
33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
sub91641-H0820
33119PLATE, STIFFENER, LH(MTM)
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33195HANGER, TRANSMISSION CASE, NO.1
4301
9010510051
main90105-10051
9151161035
main91511-61035
9151261035
main91512-61035
9161261028
main91612-61028
25 parts on this diagram · 2 diagrams in section
