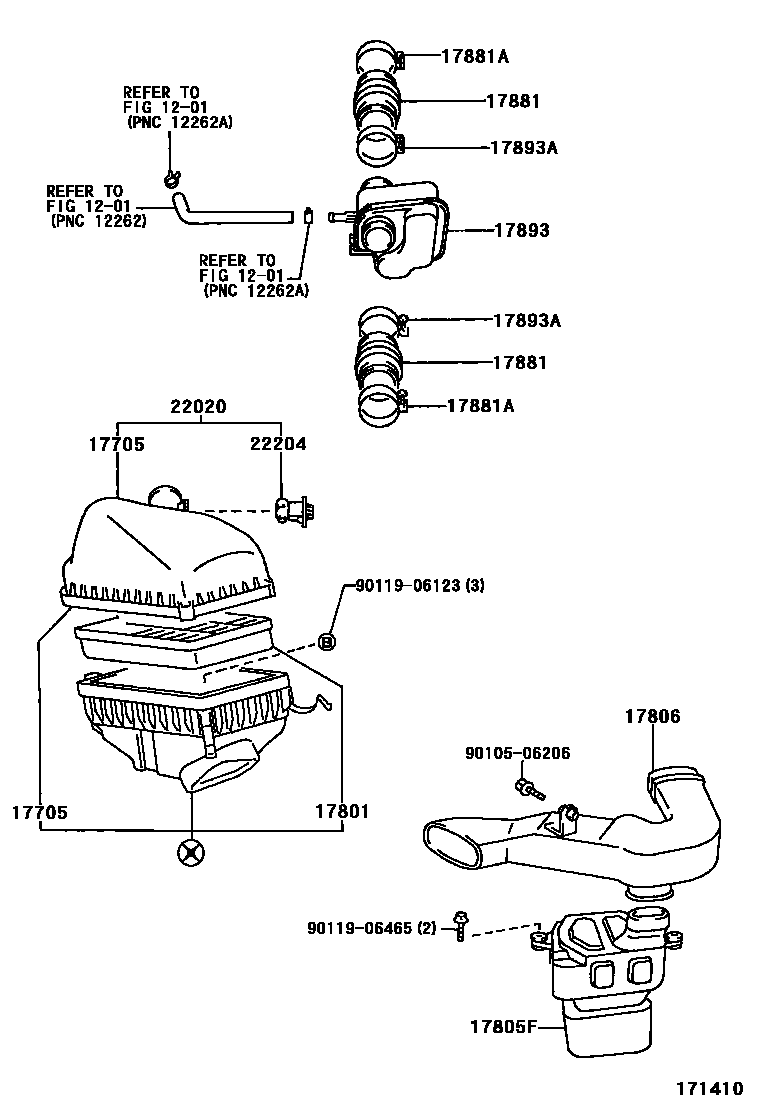

AIR CLEANER
1201
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17805FRESONATOR SUB-ASSY, INTAKE AIR
LATIN AMERICA SPEC
17881HOSE, AIR CLEANER, NO.1
(L)
(J)
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
RESONATOR SIDE
THROTTLE BODY SIDE
AIR FLOW METER SIDE
17893RESONATOR, INTAKE AIR
(L)
(J)
17893ACLAMP, HOSE
22204METER SUB-ASSY, INTAKE AIR FLOW
9010506206
main90105-06206
9011906123
main90119-06123
9011906465
main90119-06465
14 parts on this diagram · 4 diagrams in section
