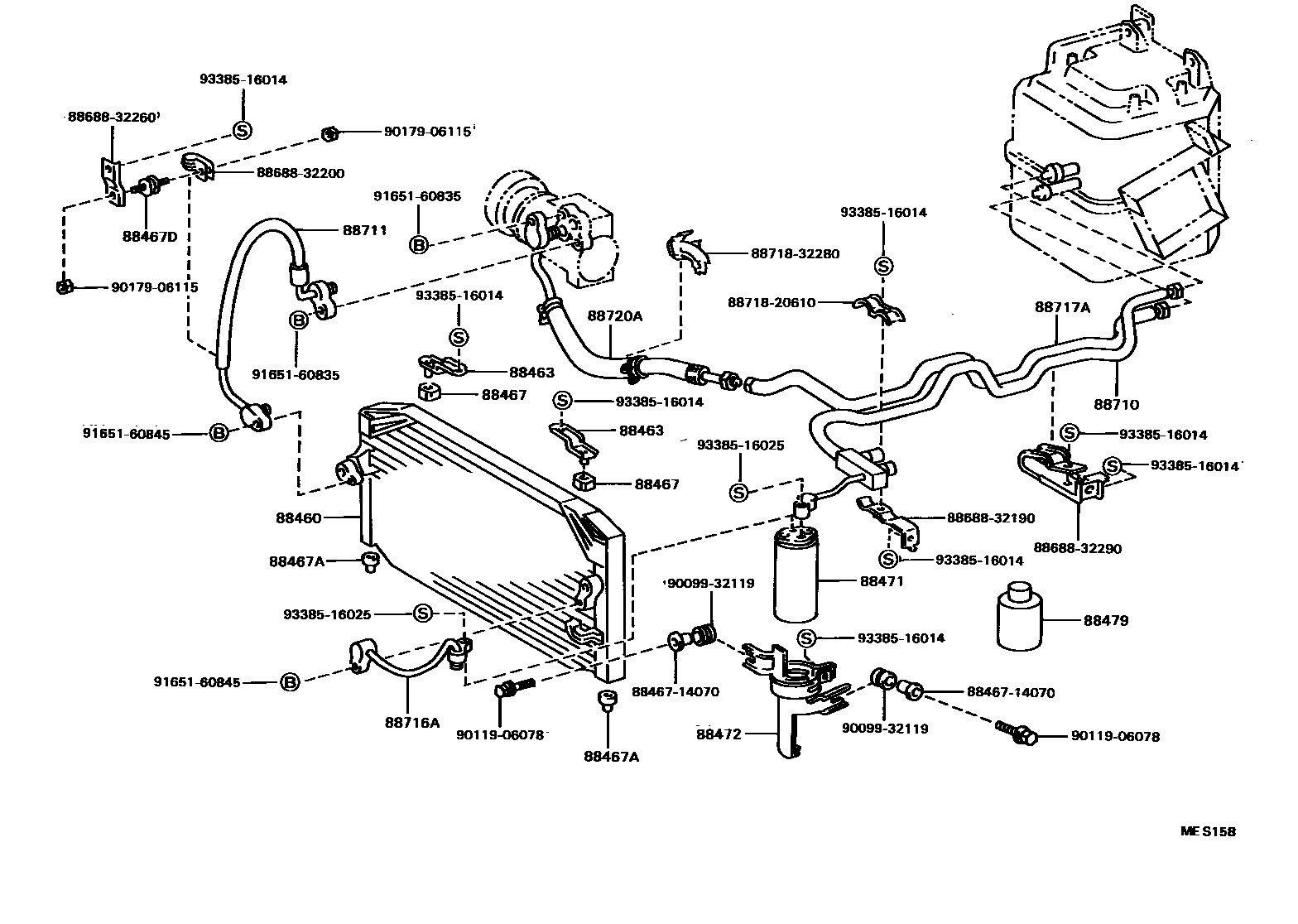

HEATING & AIR CONDITIONING - COOLER PIPING

88460CONDENSER ASSY, COOLER

main88460-32070iVZV21198808-199106

88463BRACKET, COOLER CONDENSER, NO.1

main88463-32021iVZV21198808-199106

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32030iVZV21198808-199106

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-32020iVZV21198808-199106

88467DCUSHION, COOLER REFRIGERANT PIPE CLAMP

main88467-14040iVZV21198808-199106

88471TANK, RECEIVER AIR CONDITIONER

main88471-10030iVZV21198808-199106

sub88471-12040

88472BRACKET, RECEIVER TANK, NO.1

main88473-32020iVZV21198808-199106

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02004iVZV21198808-199106

250G

88710TUBE ASSY, AIR CONDITIONER

main88710-32040iVZV21198808-199106

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-32080iVZV21198808-199106

sub88711-32160

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-32230iVZV21198808-199106

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-32300iVZV21198808-199106

88720AHOSE & ACCESSORY, AIR CONDITIONER

main88720-32050iVZV21198808-199106

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8868832190BRACKET, COOLER DIAPHRAGM

main88688-32190

8868832200BRACKET, COOLER DIAPHRAGM

main88688-32200

8868832260BRACKET, COOLER DIAPHRAGM

main88688-32260

8868832290BRACKET, COOLER DIAPHRAGM

main88688-32290

8871820610PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-20610

8871832280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32280

9009932119

main90099-32119

9011906078

main90119-06078

9017906115

main90179-06115

9165160835

main91651-60835

9165160845

main91651-60845

9338516014

main93385-16014

9338516025

main93385-16025

27 parts on this diagram · 1 diagram in section
