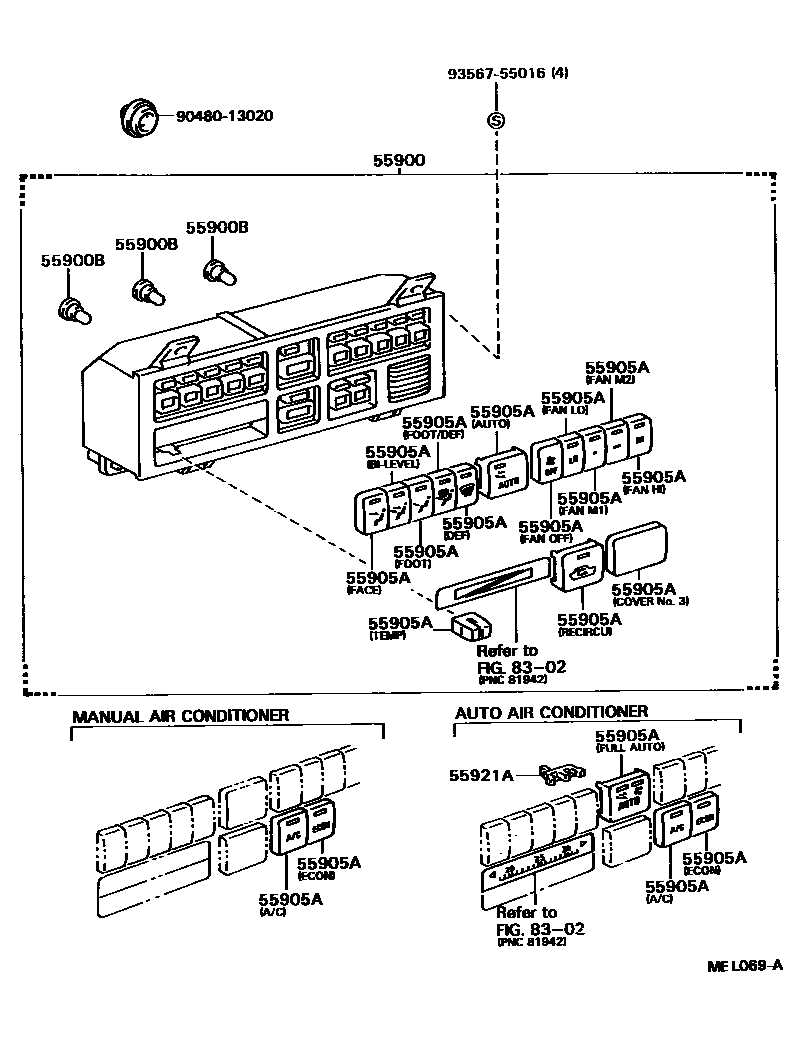

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1AUTO AIR CONDITIONER

55900CONTROL ASSY, AIR CONDITIONER

main55900-32180iVZV21198808-199106

55900BBULB, AIR CONDITIONER CONTROL

main81850-32150iVZV21198808-199106

55905AKNOB, HEATER CONTROL

main55905-32180iVZV21198808-199106

FACE

main55905-32200iVZV21198808-199106

BI-LEVEL

main55905-32210iVZV21198808-199106

FOOT

main55905-32220iVZV21198808-199106

FOOT/DEF

main55905-32230iVZV21198808-199106

DEF

main55905-32250iVZV21198808-199106

FAN OFF

main55905-32260iVZV21198808-199106

FAN LO

main55905-32270iVZV21198808-199106

FAN M1

main55905-32280iVZV21198808-199106

FAN M2

main55905-32290iVZV21198808-199106

FAN H1

main55905-32320iVZV21198808-199106

TEMP

main55905-32330iVZV21198808-199106

A/C

main55905-32340iVZV21198808-199106

ECON

main55905-32350iVZV21198808-199106

RECIRCU

main55905-32360iVZV21198808-199106

FULL AUTO

main55905-32370iVZV21198808-199106

AUTO

main55905-32380iVZV21198808-199106

COVER,NO.3

55921ARETAINER, HEATER CONTROL

main55921-32010iVZV21198808-199106

8302

9048013020

main90480-13020

9356755016

main93567-55016

7 parts on this diagram · 3 diagrams in section
