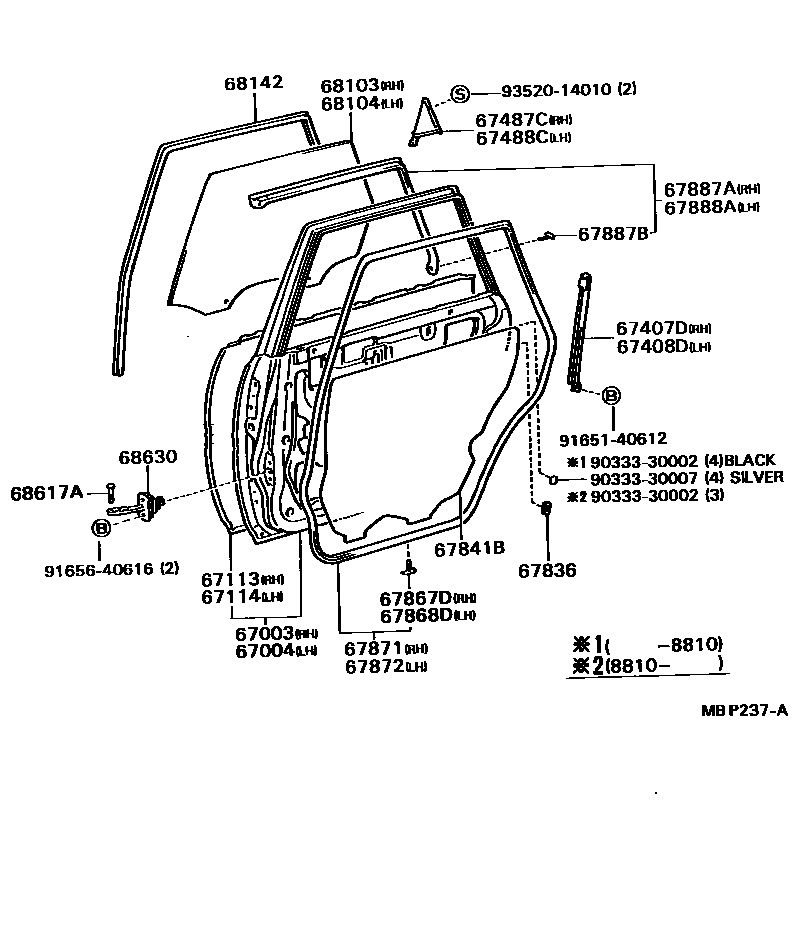

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67841BCOVER, REAR DOOR SERVICE HOLE
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
68617APIN, REAR DOOR CHECK
68630CHECK ASSY, REAR DOOR
9033330002
main90333-30002
9033330007
main90333-30007
9165140612
main91651-40612
9165640616
main91656-40616
9352014010
main93520-14010
27 parts on this diagram · 2 diagrams in section
