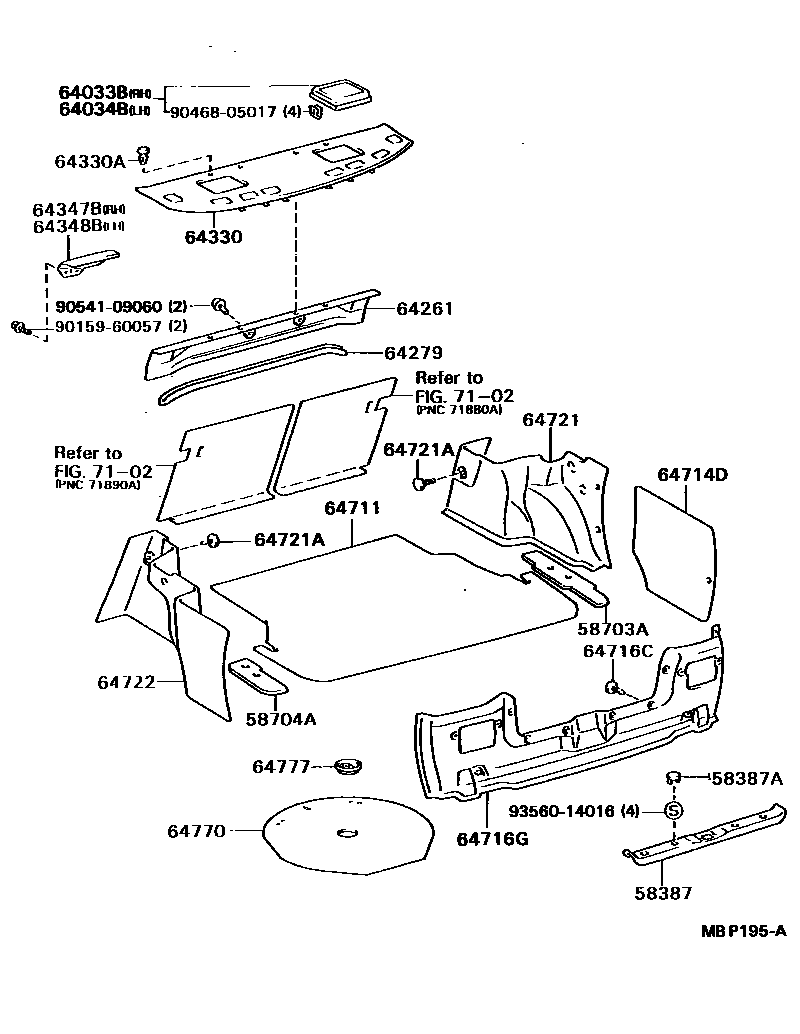

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
LIGHT GRAY,TRIM1#,8#
58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
MEDIUM GRAY,TRIM1#
LIGHT BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
MEDIUM GRAY,TRIM1#
LIGHT BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
64261GARNISH, ROOM PARTITION
64279PROTECTOR, ROOM PARTITION
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
64330PANEL ASSY, PACKAGE TRAY TRIM
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH
64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH
sub64348-32020
64711MAT, LUGGAGE COMPARTMENT FLOOR
LIGHT GRAY,TRIM1#,8#
LIGHT GRAY,TRIM1#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
LIGHT GRAY,TRIM1#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
LIGHT GRAY,TRIM1#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
LIGHT GRAY,TRIM1#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
LIGHT GRAY,TRIM1#,8#
64770COVER ASSY, SPARE WHEEL
64777CLAMP, SPARE WHEEL COVER
7102
9015960057
main90159-60057
9046805017
main90468-05017
9054109060
main90541-09060
9356014016
main93560-14016
26 parts on this diagram · 1 diagram in section
