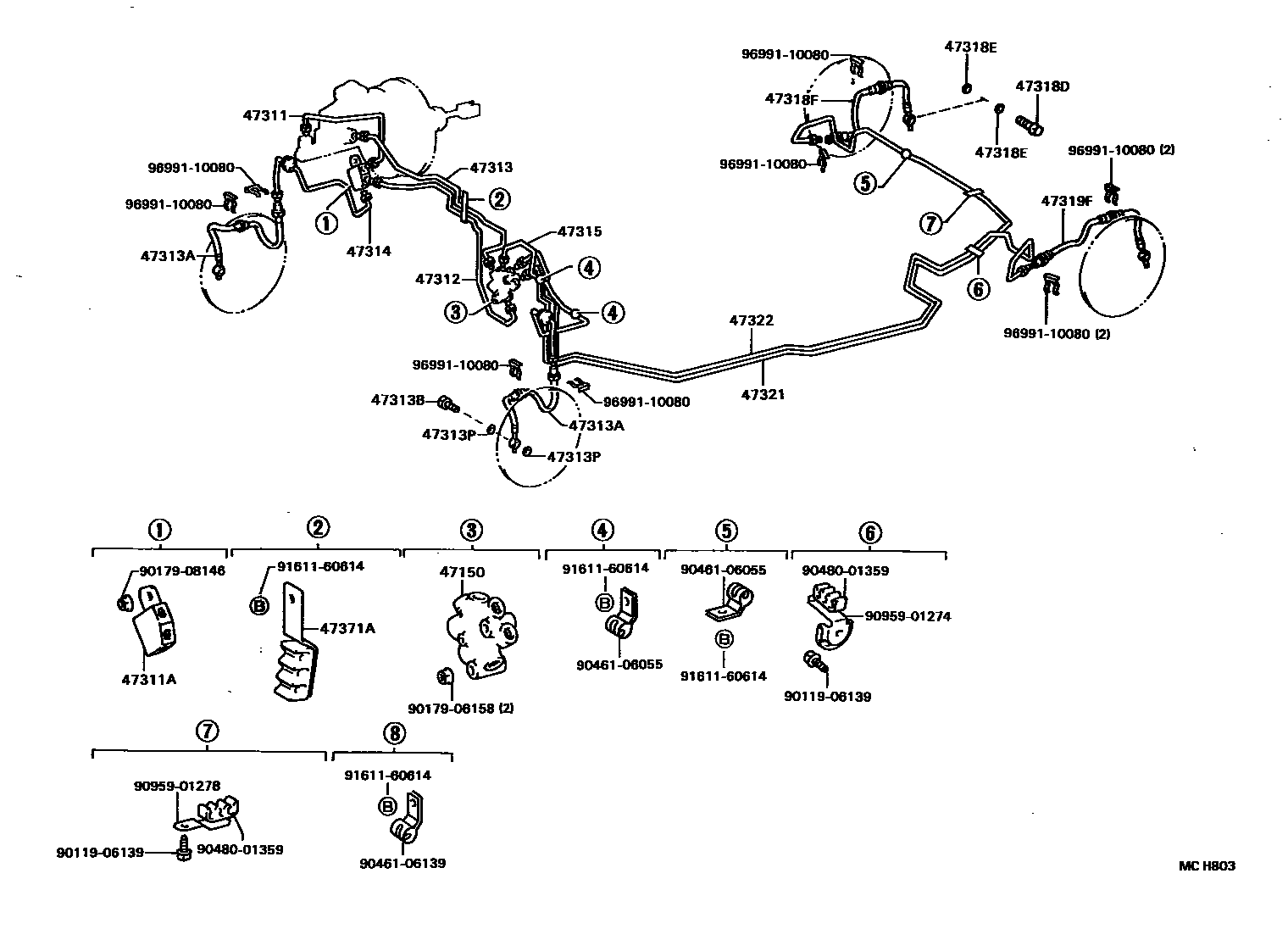

BRAKE TUBE & CLAMP

47150VALVE ASSY, PROPORTIONING

main47150-20140iVZV21198808-199106

47311TUBE, FRONT BRAKE, NO.1

main47311-32080iVZV21198808-199106

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10193iVZV21198808-199106

47312TUBE, FRONT BRAKE, NO.2

main47312-32130iVZV21198808-199106

47313TUBE, FRONT BRAKE, NO.3

main47313-32120iVZV21198808-199106

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02496iVZV21198808-199106

sub90947-02987

main90947-02540iVZV21198908-198911

sub90947-02987

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iVZV21198808-199106

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iVZV21198808-199106

47314TUBE, FRONT BRAKE, NO.4

main47314-32080iVZV21198808-199106

47315TUBE, FRONT BRAKE, NO.5

main47315-32060iVZV21198808-199106

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iVZV21198808-199106

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iVZV21198808-199106

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02498iVZV21198808-199106

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02498iVZV21198808-199106

47321TUBE, REAR BRAKE, NO.1

main47321-32110iVZV21198808-199106

47322TUBE, REAR BRAKE, NO.2

main47322-32100iVZV21198808-199106

47371ACLAMP, BRAKE TUBE, NO.1

main47371-32010iVZV21198808-199106

9011906139

main90119-06139

9017906158

main90179-06158

9017908146

main90179-08146

9046106055

main90461-06055

9046106139

main90461-06139

9048001359

main90480-01359

9095901274

main90959-01274

9095901278

main90959-01278

9161160614

main91611-60614

9699110080

main96991-10080

27 parts on this diagram · 1 diagram in section
