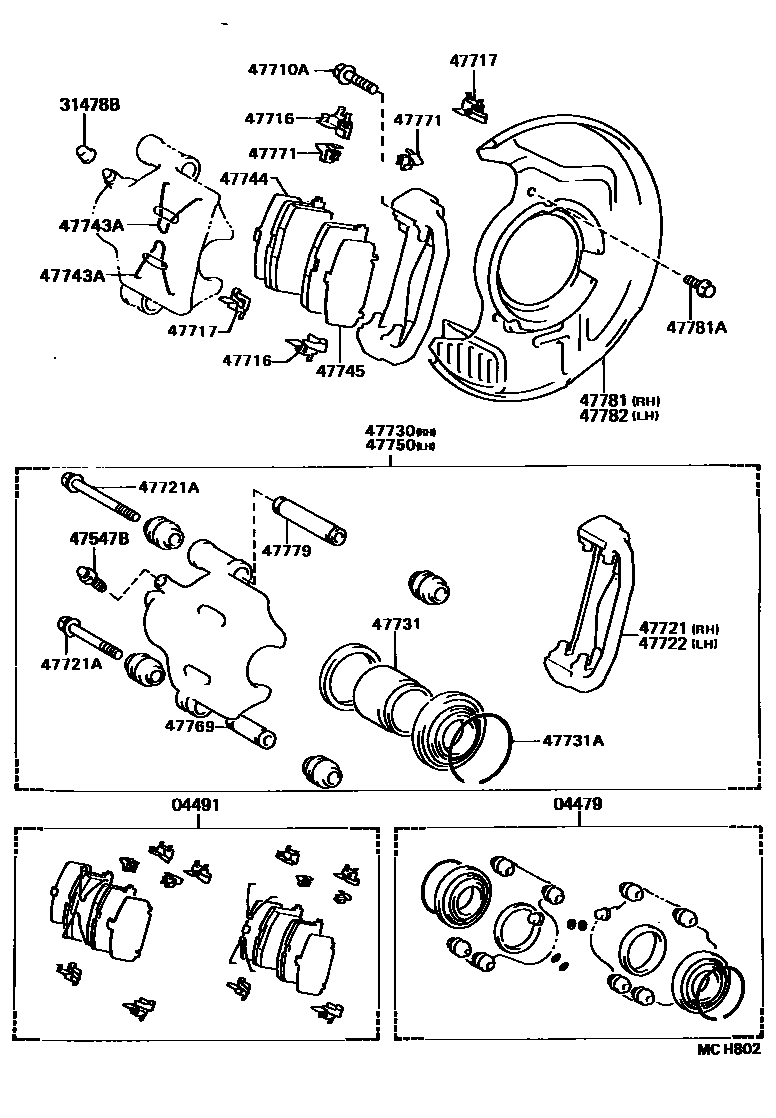

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-32030iVZV21198808-199106

04491PAD KIT, DISC BRAKE, FRONT

main04491-32280iVZV21198808-198812

sub04491-32281

main04491-32281iVZV21198812-199106

sub04465-32170

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iVZV21198808-199106

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iVZV21198808-199106

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iVZV21198808-199106

*12-1.25PX25.5-23

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32040iVZV21198808-198812

sub47716-32041

main47716-32041iVZV21198812-199106

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32040iVZV21198808-198901

sub47717-32041

main47717-32041iVZV21198901-199106

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20140iVZV21198808-199106

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iVZV21198808-199106

*10-1.25PX65.5-30

main90119-10249iVZV21198808-199106

*10-1.25PX95.5-30

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20140iVZV21198808-199106

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20240iVZV21198808-199106

47731PISTON, FRONT DISC BRAKE

main47731-32040iVZV21198808-199106

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iVZV21198808-199106

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32030iVZV21198808-199106

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32041iVZV21198808-199106

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-32041iVZV21198808-199106

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20230iVZV21198808-199106

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iVZV21198808-199106

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iVZV21198808-199106

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iVZV21198808-199106

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-32011iVZV21198808-198901

sub47703-32040

main47703-32040iVZV21198901-199106

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iVZV21198808-199106

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-32011iVZV21198808-198901

sub47704-32040

main47704-32040iVZV21198901-199106

23 parts on this diagram · 2 diagrams in section
