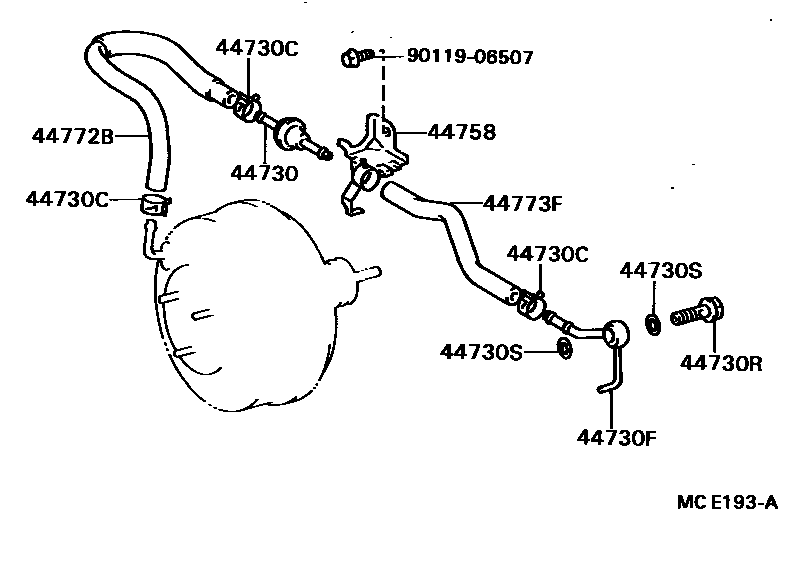

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iVZV21198808-199106

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iVZV21198808-199106

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09125iVZV21198808-199106

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iVZV21198808-199106

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005iVZV21198808-199106

44758BRACKET, VACUUM CHECK VALVE

main44758-20141iVZV21198808-199106

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-32060iVZV21198808-199106

44773FHOSE, UNION TO CHECK VALVE

main44773-32110iVZV21198808-199106

9011906507

main90119-06507

9 parts on this diagram · 2 diagrams in section
