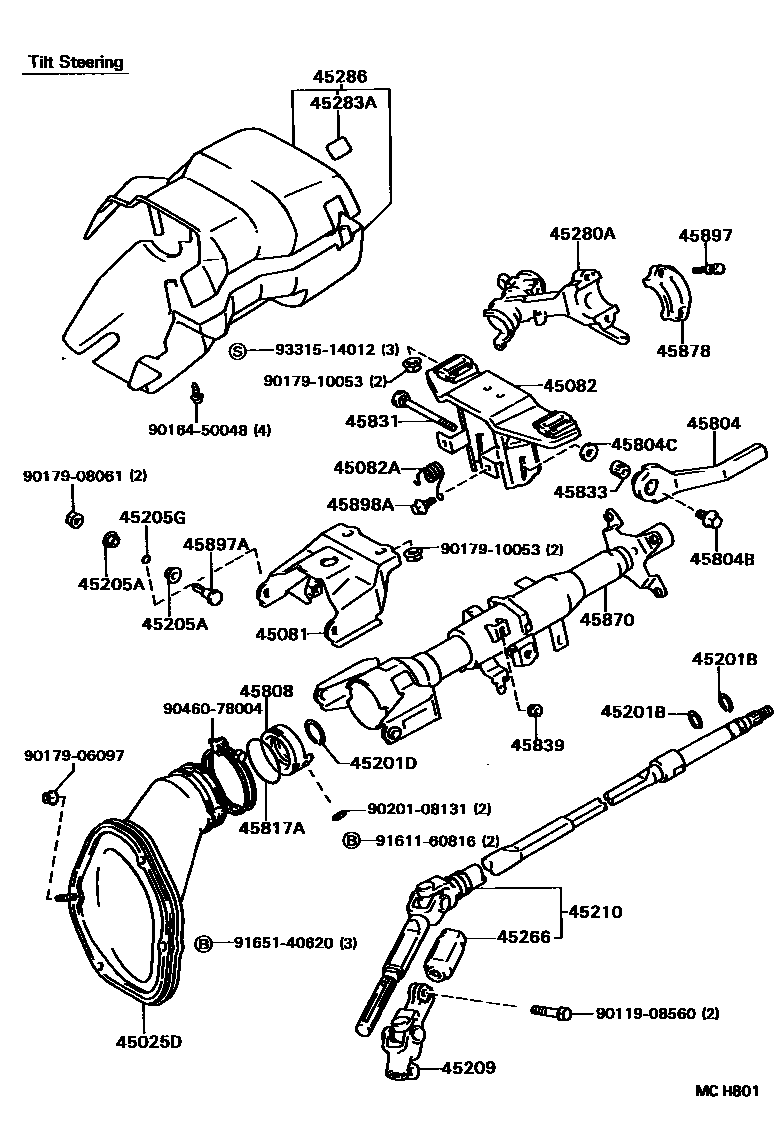

STEERING COLUMN & SHAFT
45081SUPPORT SUB-ASSY, TILT STEERING
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45082ASPRING, TORSION(FOR TILT STEERING RETURN)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
T=1.35-1.45
45201DRING(FOR STEERING MAIN SHAFT)
45205ABUSH(FOR STEERING COLUMN TUBE)
45205GRING, O(FOR STEERING COLUMN TUBE)
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-16010
45210SHAFT ASSY, STEERING MAIN
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
45804LEVER SUB-ASSY, STEERING TILT
45804BBOLT(FOR STEERING TILT LEVER)
45804CWASHER, PLATE(FOR STEERING TILT LEVER)
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45839GROMMET, RETURN SPRING
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
45898ABOLT, RETURN SPRING SET
9011908560
main90119-08560
9016450048
main90164-50048
9017906097
main90179-06097
9017908061
main90179-08061
9017910053
main90179-10053
9020108131
main90201-08131
9046078004
main90460-78004
9161160816
main91611-60816
9165140620
main91651-40620
9331514012
main93315-14012
37 parts on this diagram · 1 diagram in section
