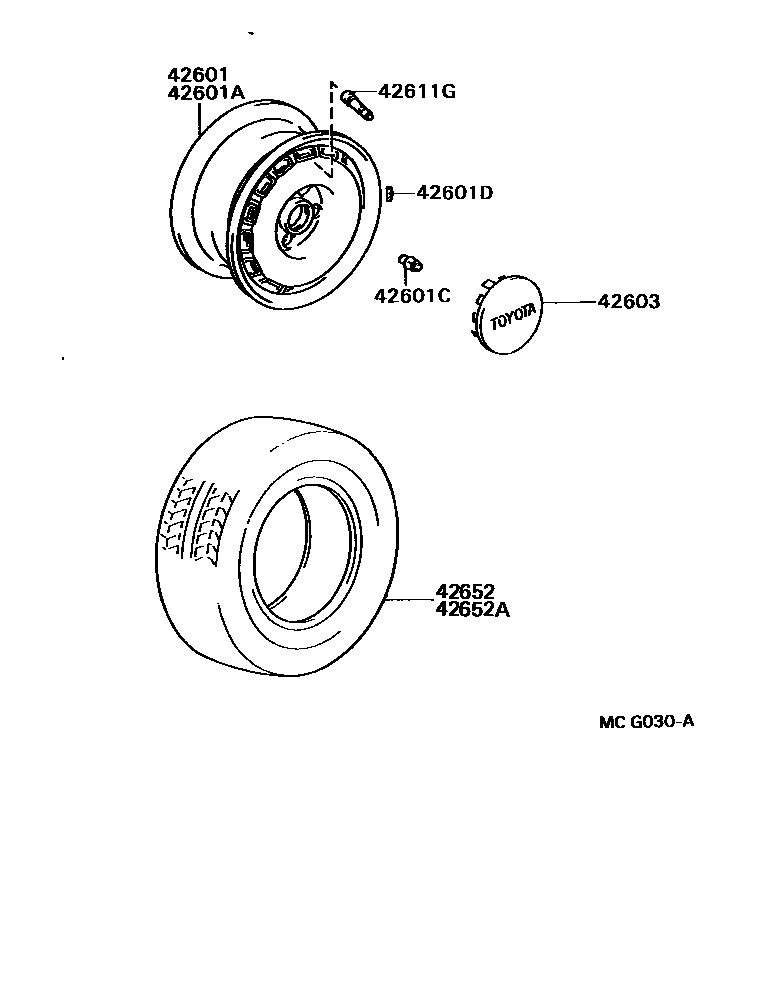

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X5.5JJ
42601AWHEEL, DISC (FOR SPARE)
15X5.5JJ
42601CNUT, HUB (FOR AXLE)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
10G
15G
20G
25G
30G
35G
40G
45G
50G
55G
60G
65G
70G
75G
80G
5G
7.5G,T=6.1
12.5G,T=7.0
17.5G,T=8.0
22.5G,T=8.0
27.5G,T=8.0
32.5G,T=8.0
37.5G,T=8.0
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
195/60VR15
195/60R15 87V
42652ATIRE (FOR SPARE)
195/60VR15
195/60R15 87V
8 parts on this diagram · 1 diagram in section
