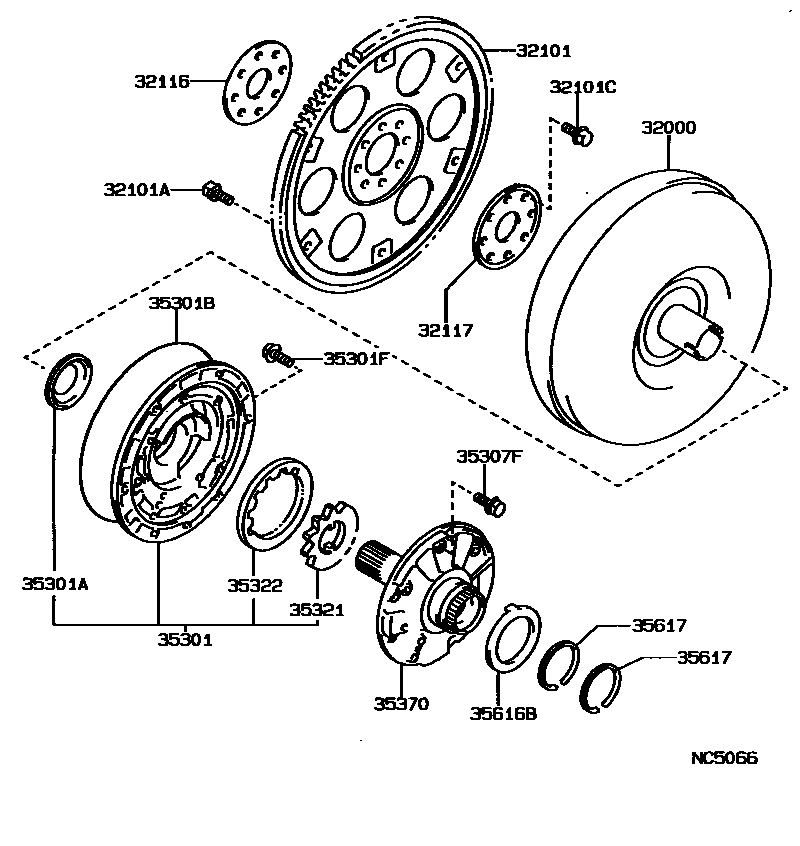

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-32030iVZV21198808-199106

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-32080iVZV21198808-199106

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009iVZV21198808-199106

*9-1.25PX12.8-8.8

main90119-09010iVZV21198808-199106

*9-1.25PX12.8-9

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iVZV21198808-199106

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-32020iVZV21198808-199106

32117SPACER, DRIVE PLATE, REAR

main32117-32020iVZV21198808-199106

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iVZV21198808-199106

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iVZV21198808-199106

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iVZV21198808-199106

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iVZV21198808-199106

*8-1.25PX28-28

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iVZV21198808-199106

35321GEAR, FRONT OIL PUMP DRIVE

main35321-32040iVZV21198808-199106

T=9.440-9.456

sub35321-12070

main35321-32050iVZV21198808-199106

T=9.456-9.474

sub35321-12090

main35321-32060iVZV21198808-199106

T=9.474-9.490

sub35321-12110

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-32040iVZV21198808-199106

T=9.440-9.456

sub35322-12060

main35322-32050iVZV21198808-199106

T=9.456-9.474

sub35322-12080

main35322-32060iVZV21198808-199106

T=9.474-9.490

sub35322-12100

35370SHAFT ASSY, STATOR

main35370-32040iVZV21198808-199106

sub35370-33010

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iVZV21198808-199105

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iVZV21198808-199106
