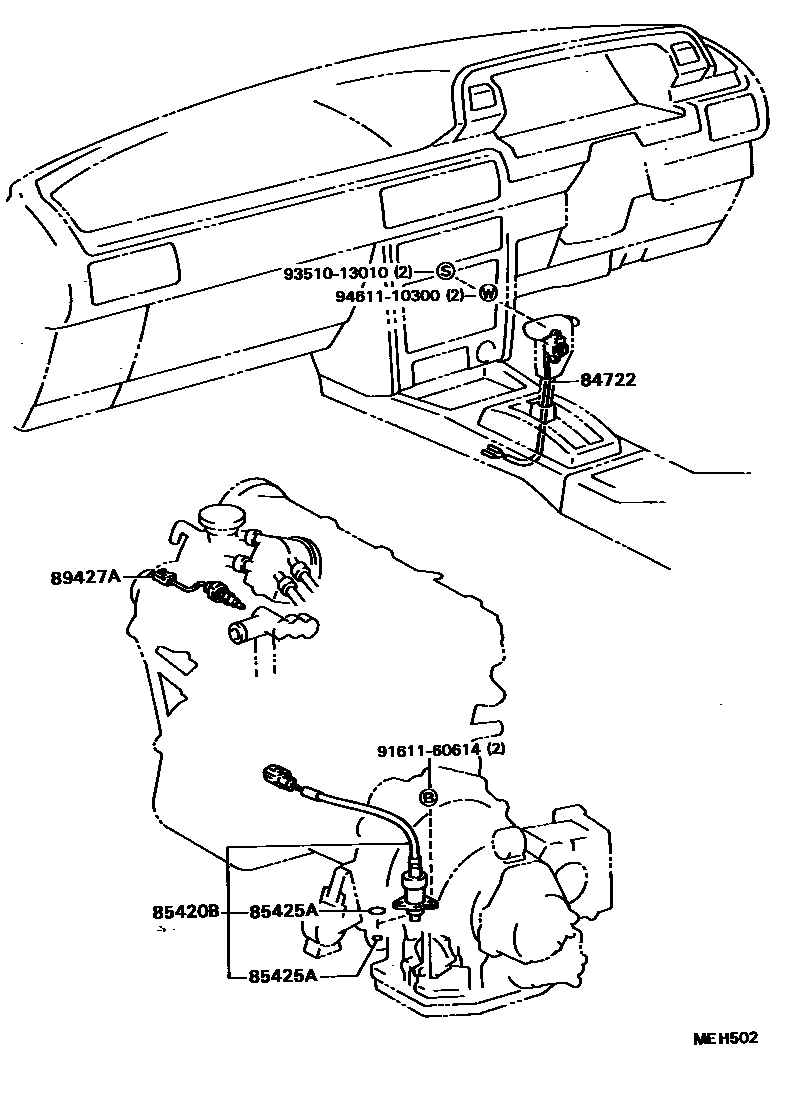

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVERDRIVE 0002 1ECT

84722SWITCH, TRANSMISSION CONTROL

main84722-32020-03iSV2#,VZV21198710-198807

MEDIUM GRAY,TRIM1#

sub84722-32020

sub84722-12020

main84722-32020-03iSV2#..4FC198611-198710

GRAY,MEDIUM GRAY

sub84722-32020

sub84722-12020

main84722-32020-04iSV2#,VZV21198710-198807

DARK BLUE,TRIM8#

sub84722-32020

sub84722-12020

main84722-32020-04iSV2#..4FC198611-198710

BLUE,DARK BLUE

sub84722-32020

sub84722-12020

main84722-32020-05iSV2#..4FC198808-198904

DARK BEIGE,DARK BEIGE,TRIM4#

sub84722-32020

sub84722-12020

main84722-32020-05iSV2#,VZV21198710-198808

DARK BEIGE,TRIM4#

sub84722-32020

sub84722-12020

main84722-32020-05iSV2#..4FC198611-198710

BEIGE,DARK BEIGE

sub84722-32020

sub84722-12020

main84722-32020-J0iSV2#..4FC198808-198904

DARK BLUE,DARK BLUE,TRIM8#

sub84722-32020

sub84722-12020

main84722-32020-J0iSV2#,VZV21198807-198808

DARK BLUE,TRIM8#

sub84722-32020

sub84722-12020

85420SOLENOID ASSY, TRANSMISSION

main85420-32100iVZV21198802-198804

NO.1

sub85420-32103

main85420-32101iVZV21198804-198808

NO.1

sub85420-32102

main85420-32120iVZV21198802-198808

NO.2

sub85420-32121

85420BSOLENOID ASSY, TRANSMISSION

main85420-32081iSV2#..4FC198611-198904

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iSV2#..4FC198611-198904

ID=7

main96721-19017iSV2#..4FC198611-198904

ID=17

89427ASWITCH, TEMPERATURE

main89427-12070iSV21..4FC198611-198904

main89427-32010iSV20..4FC198611-198904

9161160614

main91611-60614

9351013010

main93510-13010

9461110300

main94611-10300

8 parts on this diagram · 2 diagrams in section
