CRUISE CONTROL (AUTO DRIVE)

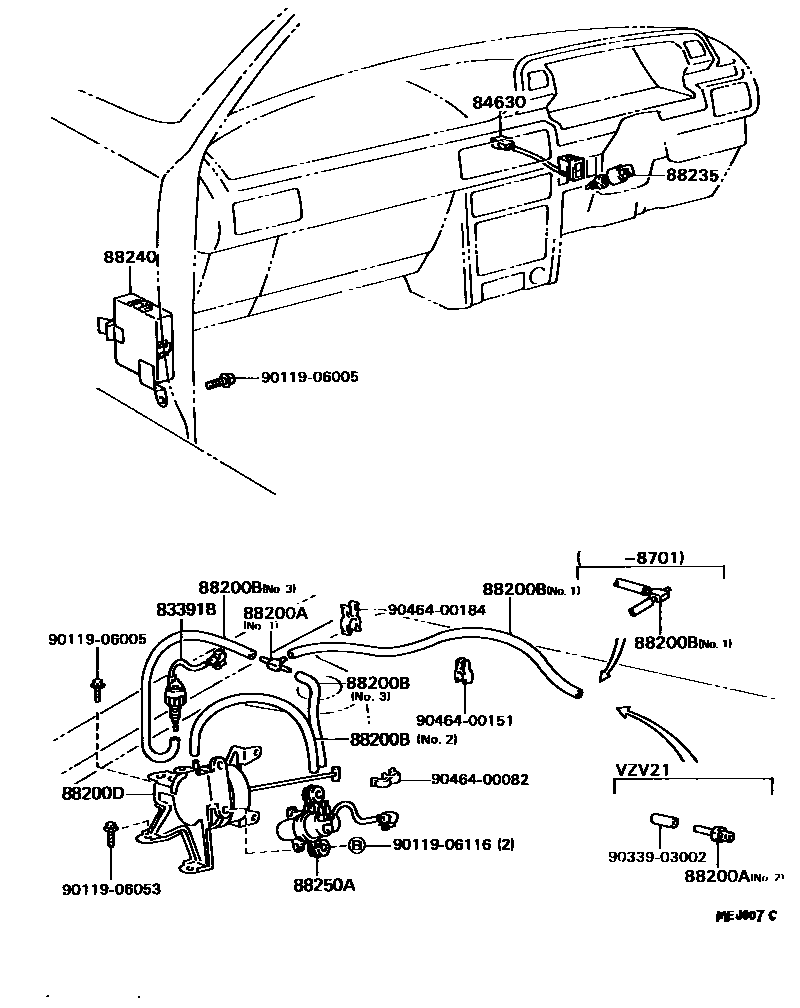

Parts diagram

83391BSWITCH, AUTO DRIVE VACUUM

main83391-14090i¥4,730198611-198710

main83391-32040i¥4,710198710-198904

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-32080i¥7,800198611-198904

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010i¥250198802-198808

NO.2

main90413-04005i¥190198611-198904

NO.1

88200BHOSE, CRUISE CONTROL VACUUM

main88283-32040i198611-198612

NO.1

main95411-10060i¥910198802-198808

*H,L=600,MARK=#0,NO.1

sub90999-92003¥520

main95411-10095i¥1,540198703-198710

*H,L=800,MARK=#0,NO.1

sub90999-92004¥890

main95411-10095i¥1,540198710-198904

*H,L=950,MARK=#0,NO.1

sub90999-92004¥890

main95411-19930i¥530198710-198808

*H,L=300,MARK=#*,NO.3

sub90999-92002¥460

main95411-19930i¥530198710-198808

*H,L=300,MARK=#*,NO.2

sub90999-92002¥460

main95411-19930i¥530198611-198904

*H,L=180,MARK=#*,NO.2

sub90999-92002¥460

main95411-19930i¥530198611-198904

*H,L=160,MARK=#*,NO.3

sub90999-92002¥460

main95411-19995i¥1,540198612-198703

*H,L=800,MARK=#*,NO.1

sub90999-92004¥890

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-32070i¥53,700198611-198703

sub88200-32071¥53,700

main88200-32071i¥53,700198703-198801

sub88200-32072¥53,800

main88200-32072i¥53,800198804-198904

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-20010i¥1,550198611-198904

88240COMPUTER ASSY, CRUISE CONTROL

main88240-32130i¥37,200198611-198808

sub88240-32131¥37,100

main88240-32131i¥37,100198808-198904

88250APUMP ASSY, CRUISE CONTROL

main88251-32070i¥34,600198611-198703

sub88251-32071¥34,700

main88251-32071i¥34,700198703-198904

9011906005

main90119-06005¥80

9011906053

main90119-06053¥80

9011906116

main90119-06116¥130

9033903002

main90339-03002¥180

9046400082

main90464-00082¥100

9046400151

main90464-00151¥330

9046400184

main90464-00184¥350

15 parts on this diagram · 1 diagram in section
