WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.3
NO.2
NO.1
NO.2
NO.2
NO.1
82114WIRE, ENGINE ROOM, NO.4
82131WIRE, COWL
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A,TERMINAL:FEMALE
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN,40A,TERMINAL:FEMALE
40A,TERM.:FEMALE,GRN
80A,TERM.:MALE,BLK,80A,TERMINAL:FEMALE
82241CWIRE, RELAY
82345DIODE
FLOOR WIRE,NO.1
COWL WIRE,NO.4
COWL WIRE,NO.7
FLOOR WIRE,NO.7
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82823CAP, TERMINAL, NO.1
STARTER
ST
ALTERNATOR
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
8639422010
main86394-22010
9011906005
main90119-06005
9011906067
main90119-06067
9017906054
main90179-06054

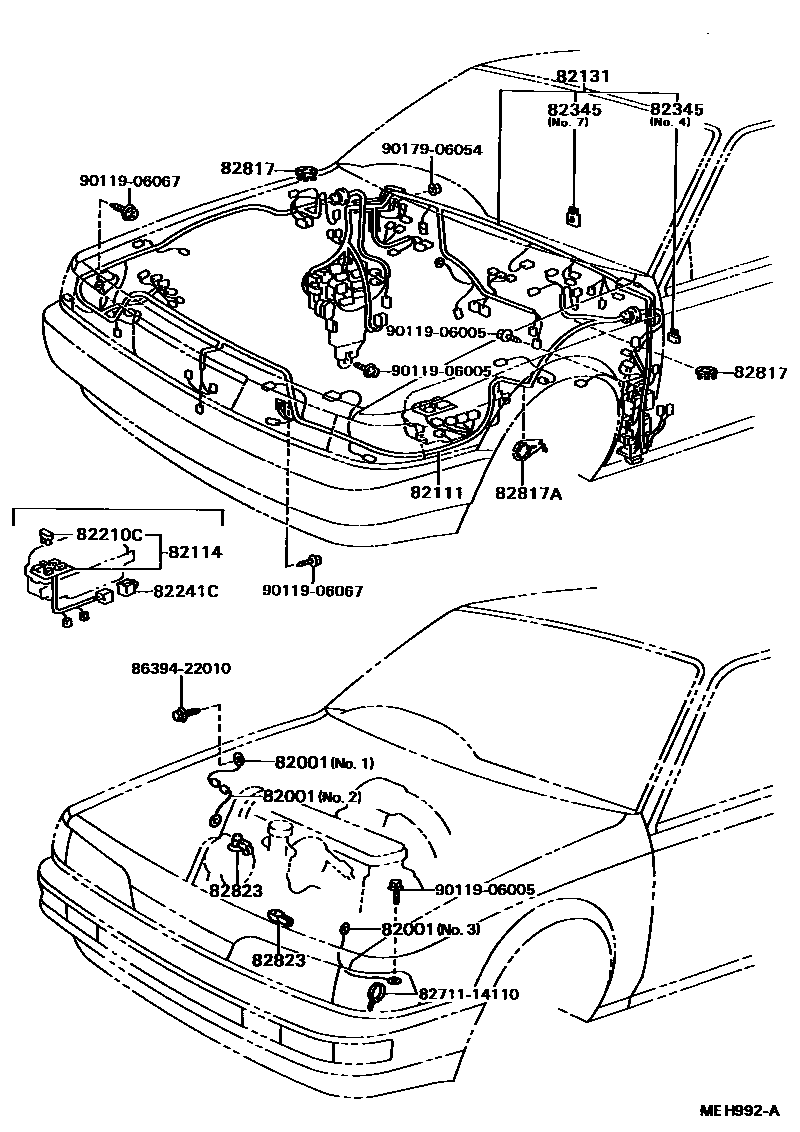

15 parts on this diagram · 7 diagrams in section
