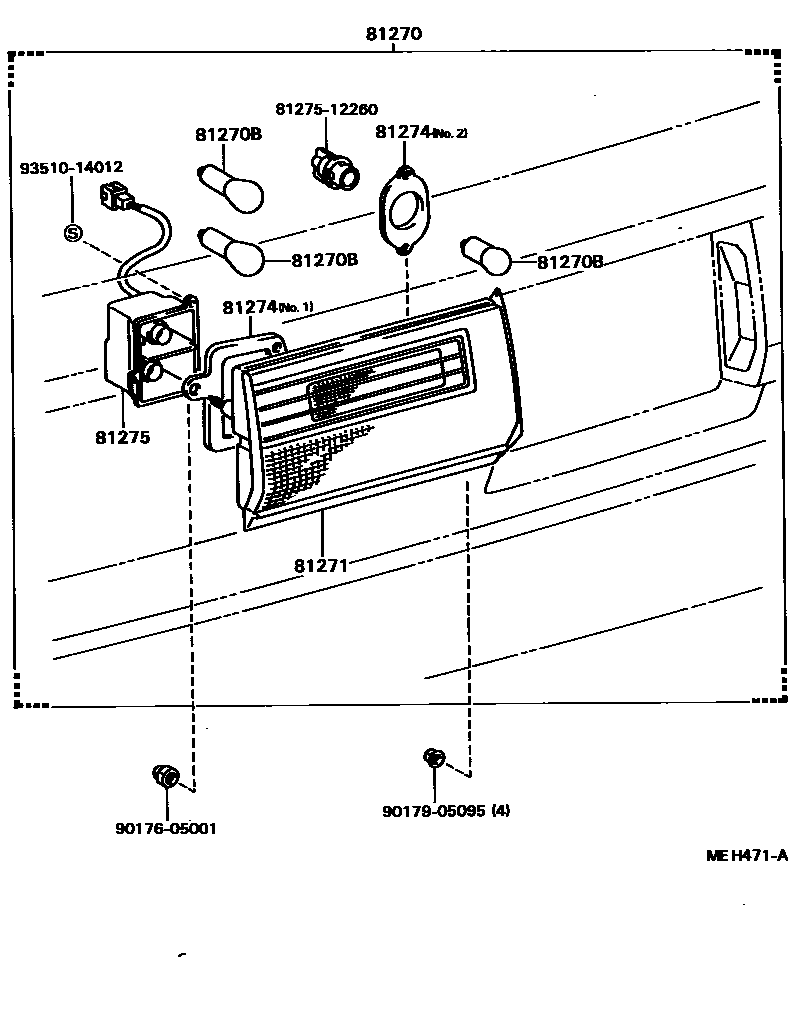

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-32060iSV2#..SED¥16,400198611-198904

RH

main81270-32130iSV2#..WG¥4,710198611-198904

main81690-32030iSV2#,VZV21..SED¥16,400198611-198904

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012iSV2#¥220198611-198904

12V 7.5W,12V 7.5W

sub90981-12026¥220

main90981-12012iSV2#,VZV21¥220198710-198808

12V 7.5W

sub90981-12026¥220

main90981-12019iSV2#..SED¥260198611-198904

12V 21/5W,12V 21/5W

sub99132-21210¥190

main90981-12019iSV2#,VZV21..SED¥260198710-198808

12V 21/5W

sub99132-21210¥190

main99132-11230iSV2#..SED198611-198904

12V 23W,12V 23W

main99132-11230iSV2#,VZV21..SED198710-198808

12V 23W

81271LENS, LICENSE PLATE LAMP

main81271-10141iSV2#..WG¥6,300198611-198904

main81271-32060iSV2#,VZV21..SED¥10,100198611-198904

RH

main81691-32030iSV2#..SED¥10,100198611-198904

LH

81274GASKET, LICENSE PLATE LAMP BODY

main81272-32060iSV2#,VZV21..SED¥580198710-198808

NO.2

main81272-32060iSV2#..SED¥580198611-198904

NO.1

main81274-32060iSV2#¥400198611-198904

NO.2

main81274-32130iSV2#..WG¥660198611-198904

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-32060iSV2#..SED¥1,480198611-198904

RH

main81695-32030iSV2#,VZV21..SED¥1,480198611-198904

LH

8127512260SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12260¥510

9017605001

main90176-05001¥200

9017905095

main90179-05095¥240

9351014012

main93510-14012¥230

9 parts on this diagram · 2 diagrams in section
