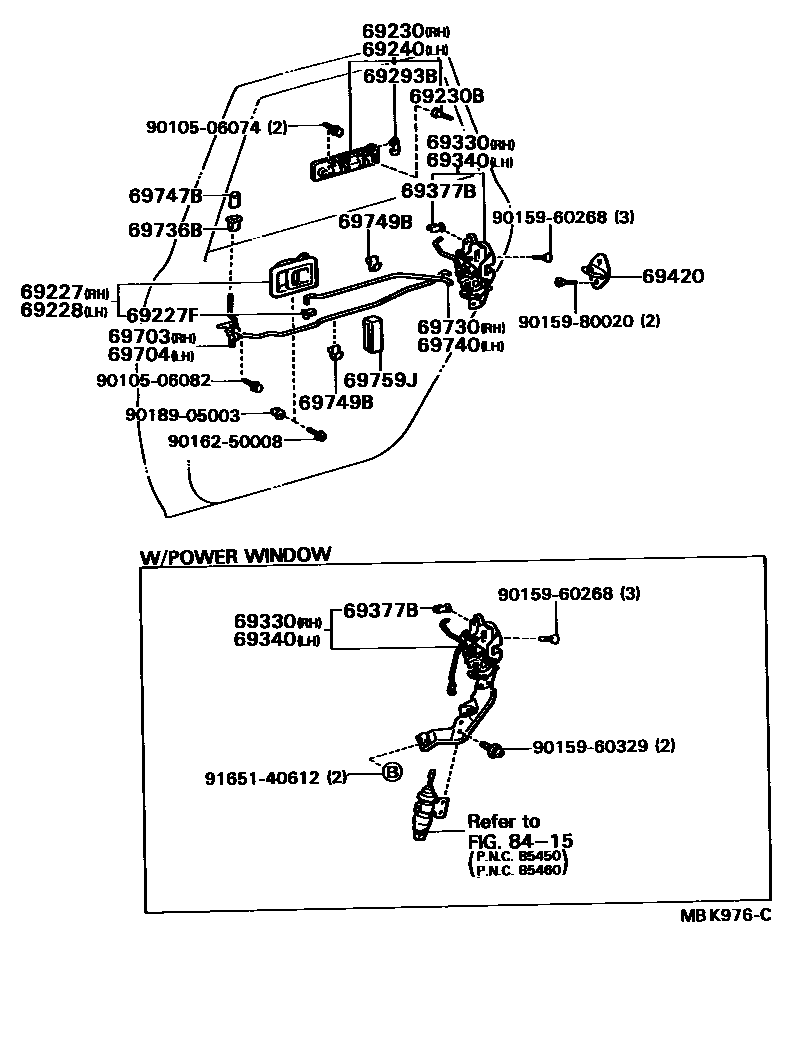

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
69227FSNAP(FOR REAR DOOR INSIDE HANDLE)
RH
RH
LH
LH
69228HANDLE, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69377BSNAP, REAR DOOR LOCK CONTROL ROD
LH
RH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69736BGUIDE, REAR DOOR LOCK LINK
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
69749BCLAMP, REAR DOOR LOCK LINK
69759JSILENCER, DOOR LOCK LINK
8415
9010506074
main90105-06074
9010506082
main90105-06082
9015960268
main90159-60268
9015960329
main90159-60329
9015980020
main90159-80020
9016250008
main90162-50008
9018905003
main90189-05003
9165140612
main91651-40612
28 parts on this diagram · 1 diagram in section
