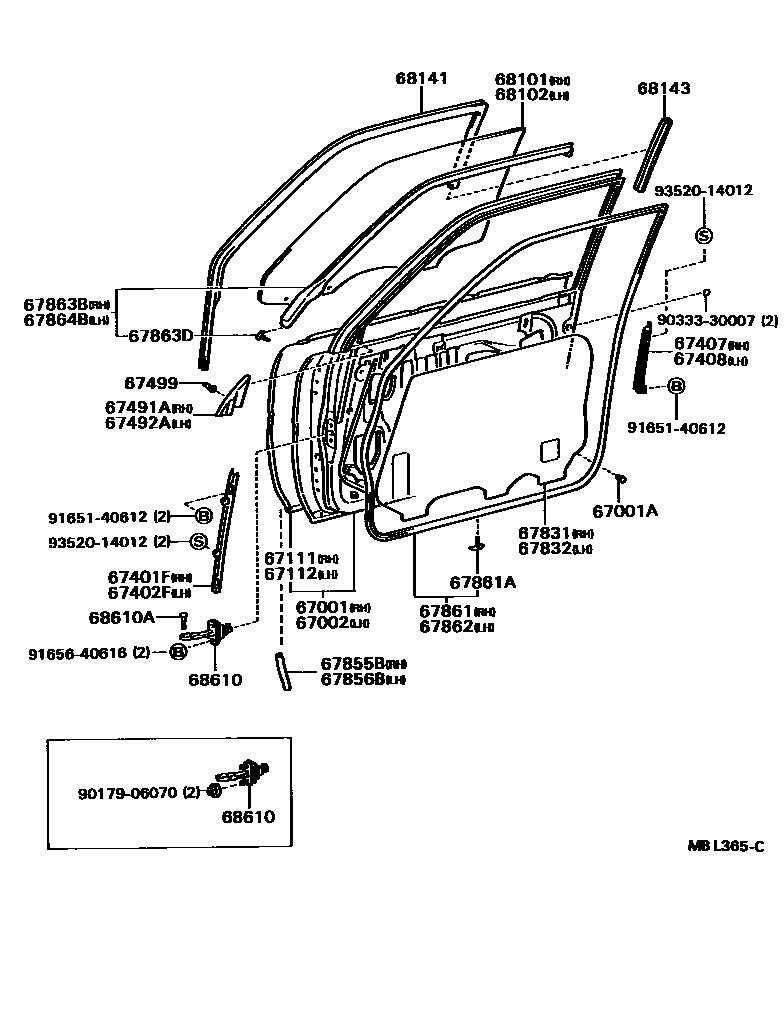

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
RH
LH
LH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
LH
RH
UPPER-LH
LOWER
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0,BLUE
*TT,T=4.0,BLUE,*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0,BLUE,*TT,T=4.0
*TT,T=4.0,BLUE
68141RUN, FRONT DOOR GLASS
68143RUN, FRONT DOOR GLASS, LOWER
68610APIN(FOR FRONT DOOR CHECK)
9017906070
main90179-06070
9033330007
main90333-30007
9165140612
main91651-40612
9165640616
main91656-40616
9352014012
main93520-14012
33 parts on this diagram · 2 diagrams in section
