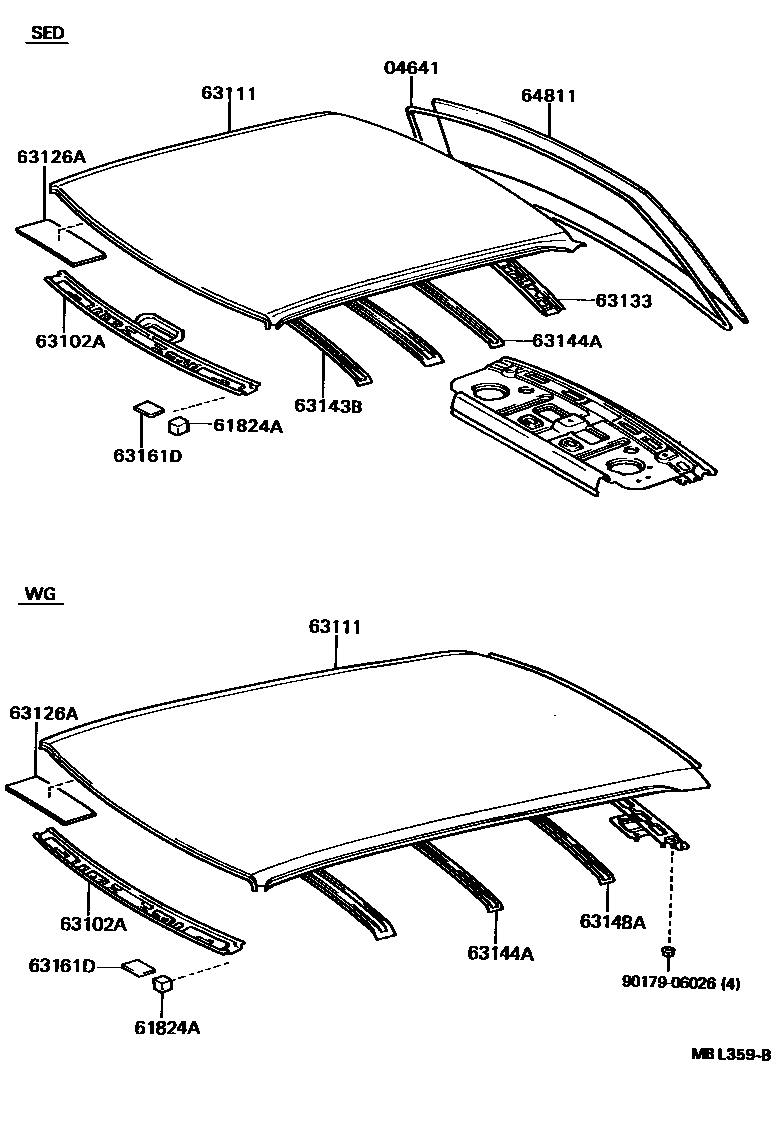

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iSV2#..SED198611-198710

61824APLATE, NOISE CONTROL, NO.1

main61824-12010×4iSV2#..SED198611-198710

sub62939-23010

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-32050iVZV21198802-198808

W(MOON ROOF)

main63102-32060iVZV21198802-198808

63111PANEL, ROOF

main63111-32050iSV2#..SED..(CS,S)198808-198904

main63111-32060iVZV21198802-198808

W(MOON ROOF)

main63111-32070iSV2#..WG198611-198904

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010×2iSV2#,VZV21198710-198808

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-32020iSV2#..SED198611-198710

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-32010iSV2#..SED198611-198710

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-32010iSV2#..SED198611-198710

main63144-32020iSV2#..WG198611-198904

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-32010iSV2#..WG198611-198808

63161DPLATE, ROOF HEADER PANEL, NO.1

main63161-22010×4iSV2#..SED198611-198710

64811GLASS, BACK WINDOW

main64811-32080iSV2#..SED..(CS,CSX)198611-198710

*EHTT,T=4.0

9017906026

main90179-06026

12 parts on this diagram · 3 diagrams in section
