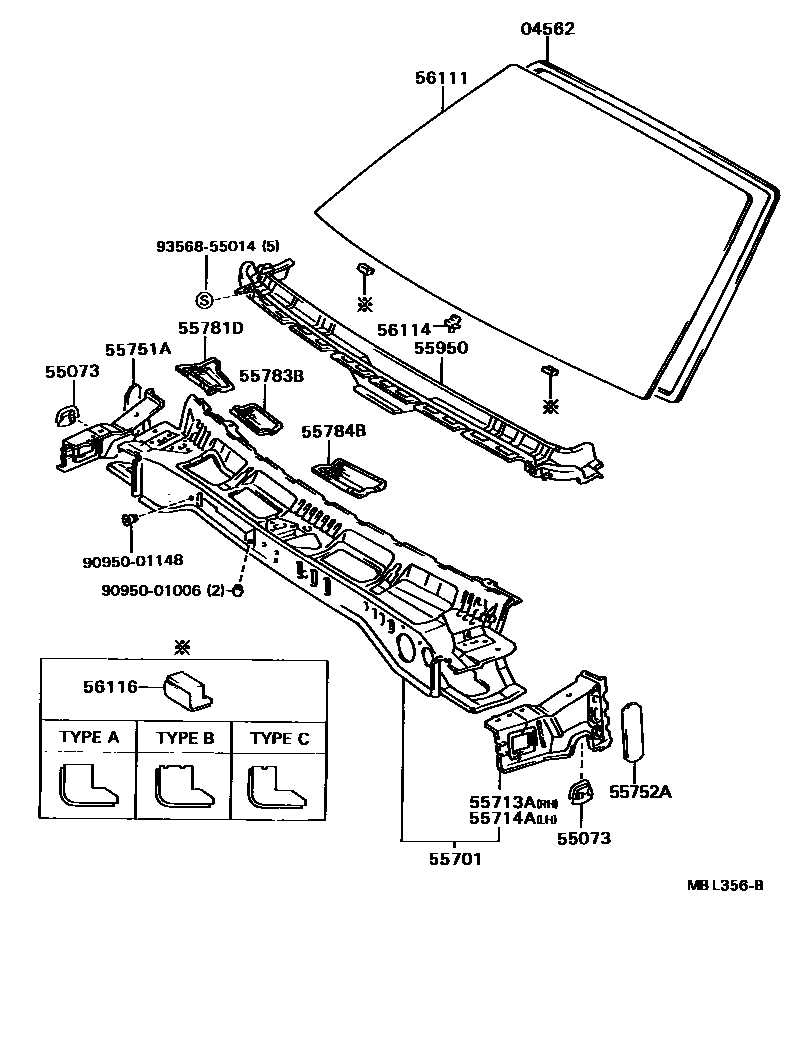

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iSV2#,VZV21198611-198904

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iSV2#198611-198701

main55073-32020iSV2#198701-198904

55701PANEL SUB-ASSY, COWL

main55700-32230iSV2#198611-198710

sub55700-32231

55713APANEL, COWL TOP SIDE, RH

main55713-32020iVZV21198611-198904

55714APANEL, COWL TOP SIDE, LH

main55714-32020iVZV21198611-198904

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-32010iSV2#198611-198904

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55751-32010iSV2#198611-198904

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-32040iSV2#198611-198904

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32040iSV2#,VZV21198611-198904

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32040iSV2#,VZV21198611-198904

55950NOZZLE ASSY, DEFROSTER

main55950-32030iSV2#198611-198904

56111GLASS, WINDSHIELD

main56111-32140iSV2#,VZV21198802-198808

*LAM,T=5.3

sub56111-32131

main56111-32140iSV2#198808-198904

*LAM,T=5.3,*LAM,T=5.3

sub56111-32131

56114RETAINER, WINDSHIELD GLASS

main56114-32010iSV2#198611-198904

56116SPACER, WINDSHIELD GLASS

main56116-32040iSV2#,VZV21198611-198904

TYPE A

sub56116-32060

main56116-32050iSV2#,VZV21198611-198904

TYPE B

sub56116-32060

main56116-32060iSV2#198611-198904

TYPE C

9095001006

main90950-01006

9095001148

main90950-01148

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
