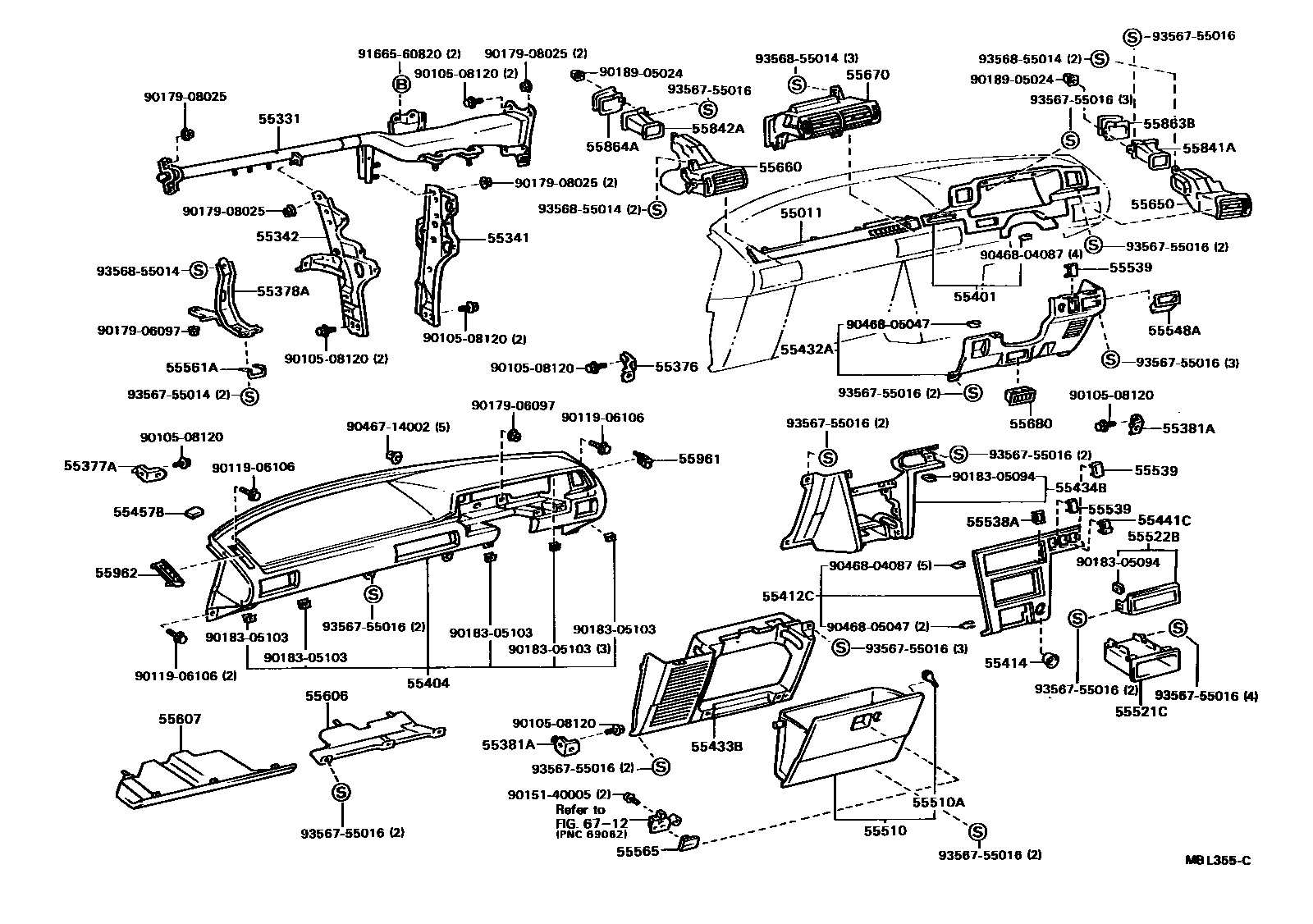

INSTRUMENT PANEL & GLOVE COMPARTMENT
55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55381ABRACKET, FINISH PANEL MOUNTING
RH
LH
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1
55414BEZEL, CIGAR LIGHTER HOLE
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
BLUE,DARK BLUE
DARK BLUE,TRIM8#
DARK BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE
DARK BEIGE,TRIM4#
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
DARK BLUE,DARK BLUE,TRIM8#
BLUE,DARK BLUE
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
DARK BLUE,DARK BLUE,TRIM8#
BLUE,DARK BLUE
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE
55441CBOX, INSTRUMENT PANEL COIN
55457BSPACER, INSTRUMENT PANEL SAFETY PAD
55510DOOR ASSY, GLOVE COMPARTMENT
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55521CCOVER, STEREO OPENING
55522BCOVER, RADIO TUNER OPENING
sub55522-20070
55538ACOVER, COOLER SWITCH HOLE
55539COVER, SPARE SWITCH HOLE
55548ACOVER, INSTRUMENT PANEL HOLE
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55841ADUCT, COWL TO REGISTER, NO.1
55842ADUCT, COWL TO REGISTER, NO.2
55863BBOOT, SIDE VENTILATOR DUCT, NO.1
55864ABOOT, SIDE VENTILATOR DUCT, NO.2
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
6712
9010508120
main90105-08120
9011906106
main90119-06106
9015140005
main90151-40005
9017906097
main90179-06097
9017908025
main90179-08025
9018305094
main90183-05094
9018305103
main90183-05103
9018905024
main90189-05024
9046714002
main90467-14002
9046804087
main90468-04087
9046805047
main90468-05047
9166560820
main91665-60820
9356755014
main93567-55014
9356755016
main93567-55016
9356855014
main93568-55014
54 parts on this diagram · 1 diagram in section
