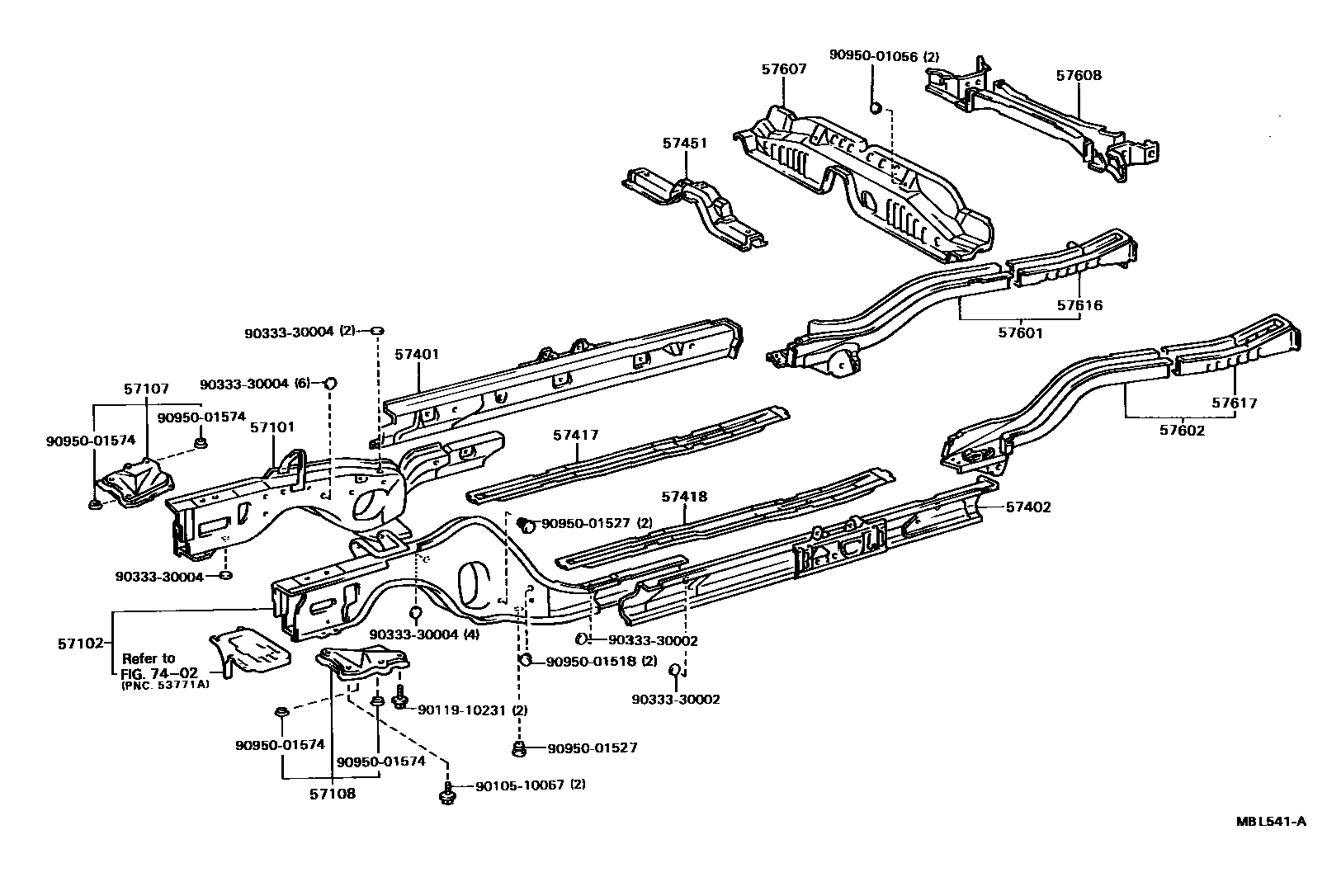

FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
sub57401-32040
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
sub57402-32040
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451MEMBER, FRONT FLOOR CROSS
57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
sub57605-32020
57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57616MEMBER, REAR FLOOR SIDE, REAR RH
7402
9010510067
main90105-10067
9011910231
main90119-10231
9033330002
main90333-30002
9033330004
main90333-30004
9095001056
main90950-01056
9095001518
main90950-01518
9095001527
main90950-01527
9095001574
main90950-01574
24 parts on this diagram · 1 diagram in section
