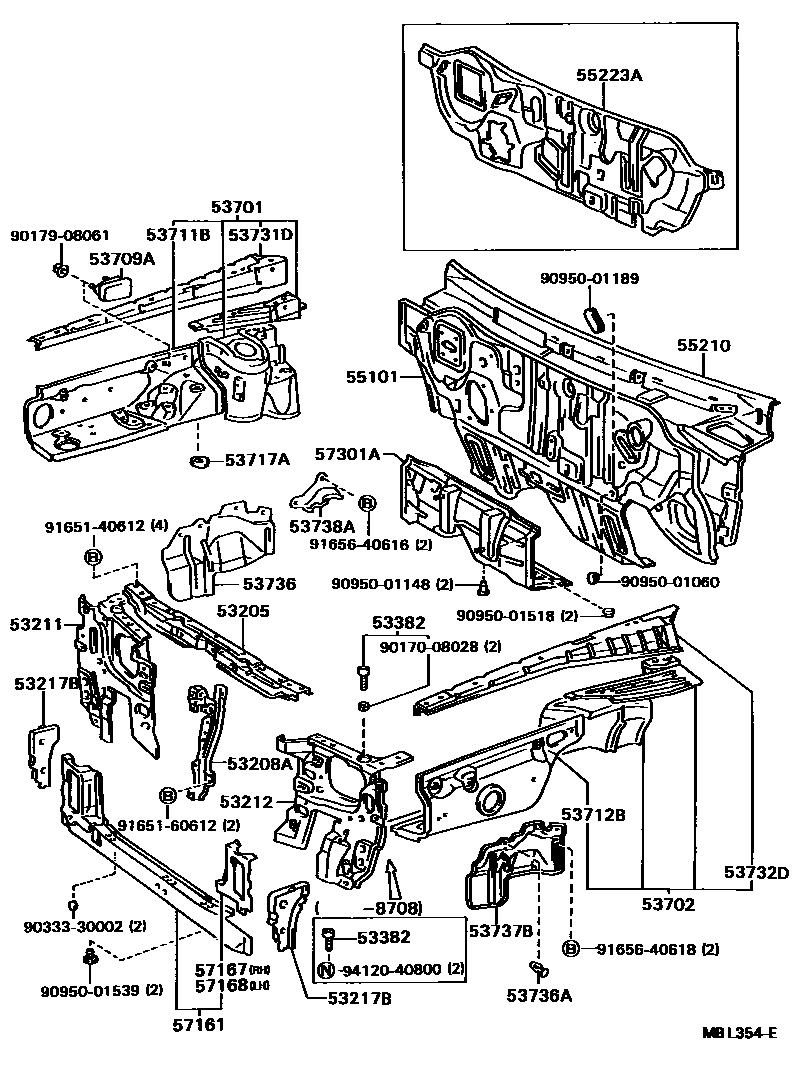

FRONT FENDER APRON & DASH PANEL
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53217BBRACE, RADIATOR SUPPORT TO CROSSMEMBER
RH
LH
53702APRON SUB-ASSY, FRONT FENDER, LH
sub53702-32911
53709ADAMPER SUB-ASSY, FRONT FENDER APRON
53712BAPRON, FRONT FENDER, FRONT LH
53717APLATE, FENDER APRON
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53736SEAL, FRONT FENDER APRON, RH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
53737BSEAL, FRONT FENDER APRON, LH
53738ASEAL, FRONT FENDER APRON, REAR RH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
57167GUSSET, FRONT CROSSMEMBER, UPPER RH
57168GUSSET, FRONT CROSSMEMBER, UPPER LH
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
9017008028
main90170-08028
9017908061
main90179-08061
9033330002
main90333-30002
9095001060
main90950-01060
9095001148
main90950-01148
9095001189
main90950-01189
9095001518
main90950-01518
9095001539
main90950-01539
9165140612
main91651-40612
9165160612
main91651-60612
9165640616
main91656-40616
9165640618
main91656-40618
9412040800
main94120-40800
38 parts on this diagram · 1 diagram in section
