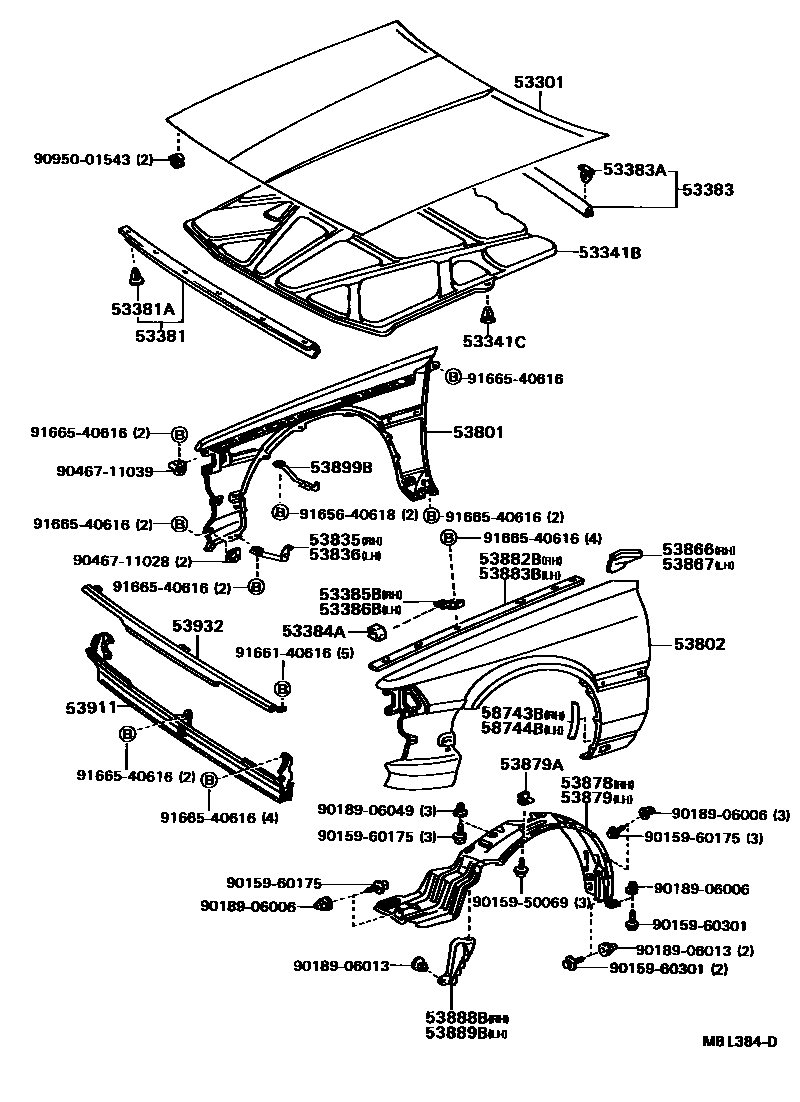

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
sub53301-32051
sub85035-32120
sub85035-32140
sub85035-32150
sub85035-32160
sub85035-32170
sub85035-32180
sub85035-32190
sub85035-32200
sub85370-32170
sub85370-32180
sub85370-32190
53341BINSULATOR, HOOD
sub53341-32050
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
sub90467-08011
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53835BRACE, FRONT FENDER TO EXTENSION, RH
53836BRACE, FRONT FENDER TO EXTENSION, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53878LINER, FRONT FENDER, RH
53879LINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53888BSEAL, FRONT FENDER SPLASH SHIELD, RH NO.2
53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
53899BSUPPORT, FRONT FENDER PANEL
53911PANEL, FRONT VALANCE
53932PANEL SUB-ASSY, FRONT END
58743BPROTECTER, FRONT FENDER PANEL, RH
58744BPROTECTER, FRONT FENDER PANEL, LH
9015950069
main90159-50069
9015960175
main90159-60175
9015960301
main90159-60301
9018906006
main90189-06006
9018906013
main90189-06013
9018906049
main90189-06049
9046711028
main90467-11028
9046711039
main90467-11039
9095001543
main90950-01543
9165640618
main91656-40618
9166140616
main91661-40616
9166540616
main91665-40616
40 parts on this diagram · 1 diagram in section
