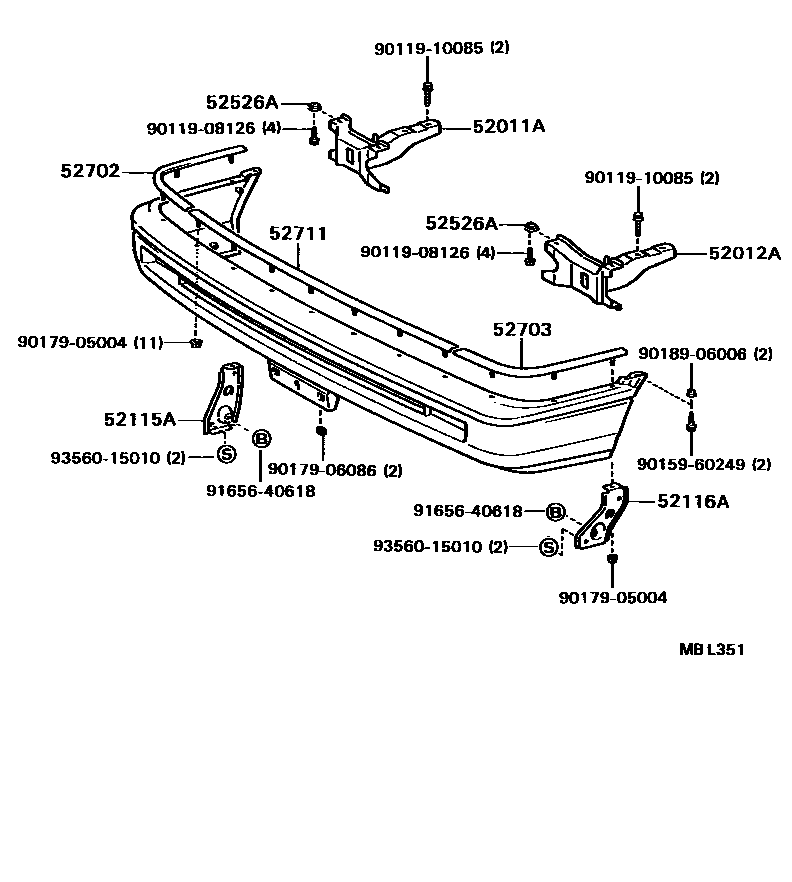

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-32070iSV2#198611-198904

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-32050iSV2#198611-198904

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-32030iVZV21198802-198808

main52115-32040iSV2#198611-198904

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-32030iVZV21198802-198808

main52116-32040iSV2#198611-198904

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-32050iVZV21198802-198808

main52565-12040iSV2#198611-198710

52702MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH

main52702-32030iVZV21198802-198808

main52702-32040iSV2#198611-198904

sub52702-32030

52703MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH

main52703-32030iVZV21198802-198808

main52703-32040iSV2#198611-198904

sub52703-32030

52711MOULDING, FRONT BUMPER

main52711-32030iVZV21198802-198808

main52711-32040iSV2#198611-198904

9011908126

main90119-08126

9011910085

main90119-10085

9015960249

main90159-60249

9017905004

main90179-05004

9017906086

main90179-06086

9018906006

main90189-06006

9165640618

main91656-40618

9356015010

main93560-15010

16 parts on this diagram · 2 diagrams in section
