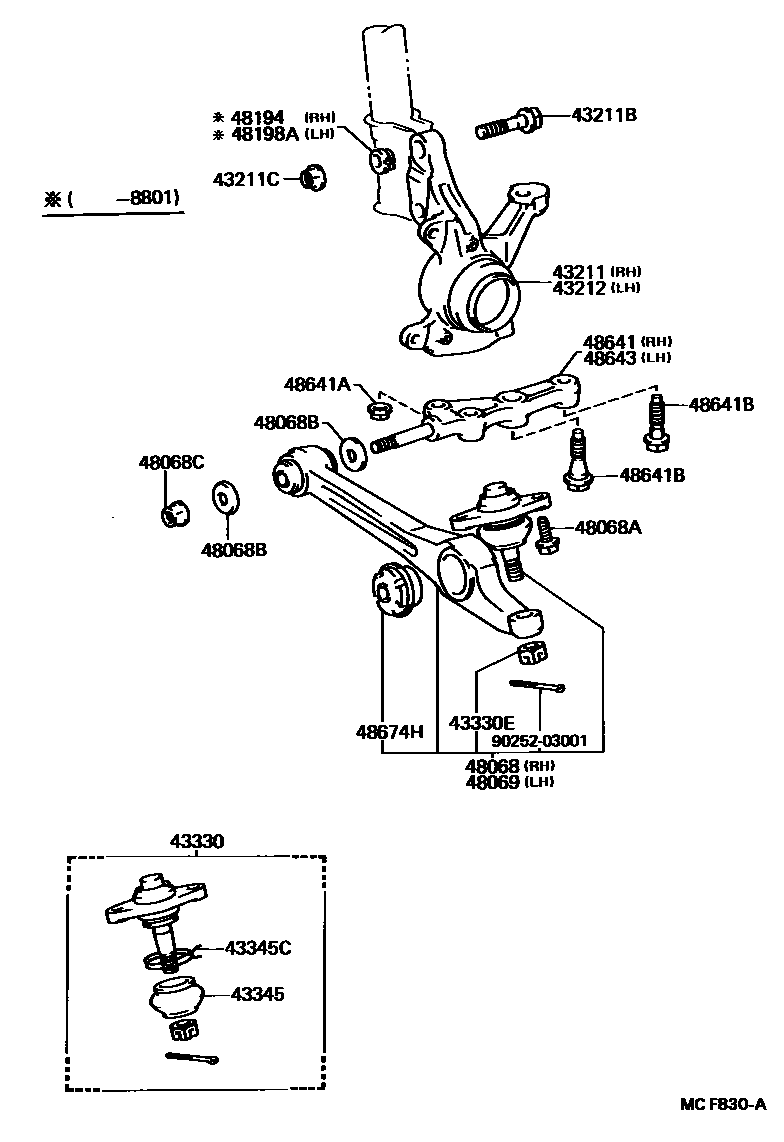

FRONT AXLE ARM & STEERING KNUCKLE
43211BBOLT (FOR ABSORBER SETTING)
43211CNUT (FOR ABSORBER SETTING)
43330JOINT ASSY, LOWER BALL, FRONT
sub43330-39275
43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
43345COVER, LOWER BALL JOINT DUST
43345CWIRE (FOR LOWER BALL JOINT DUST COVER)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48068BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)
RR
FR
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48194CAM, CAMBER ADJUST, RH
48198ACAM, CAMBER ADJUST, LH
48641SHAFT, LOWER ARM, RH
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
48641BBOLT(FOR SUSPENSION LOWER ARM SHAFT)
*14-1.50PX63-36,*14-1.50PX63-36
*14-1.50PX70-41,*14-1.50PX70-41
48643SHAFT, LOWER ARM, LH
48674HCUSHION, STRUT BAR
9025203001
main90252-03001
21 parts on this diagram · 1 diagram in section
