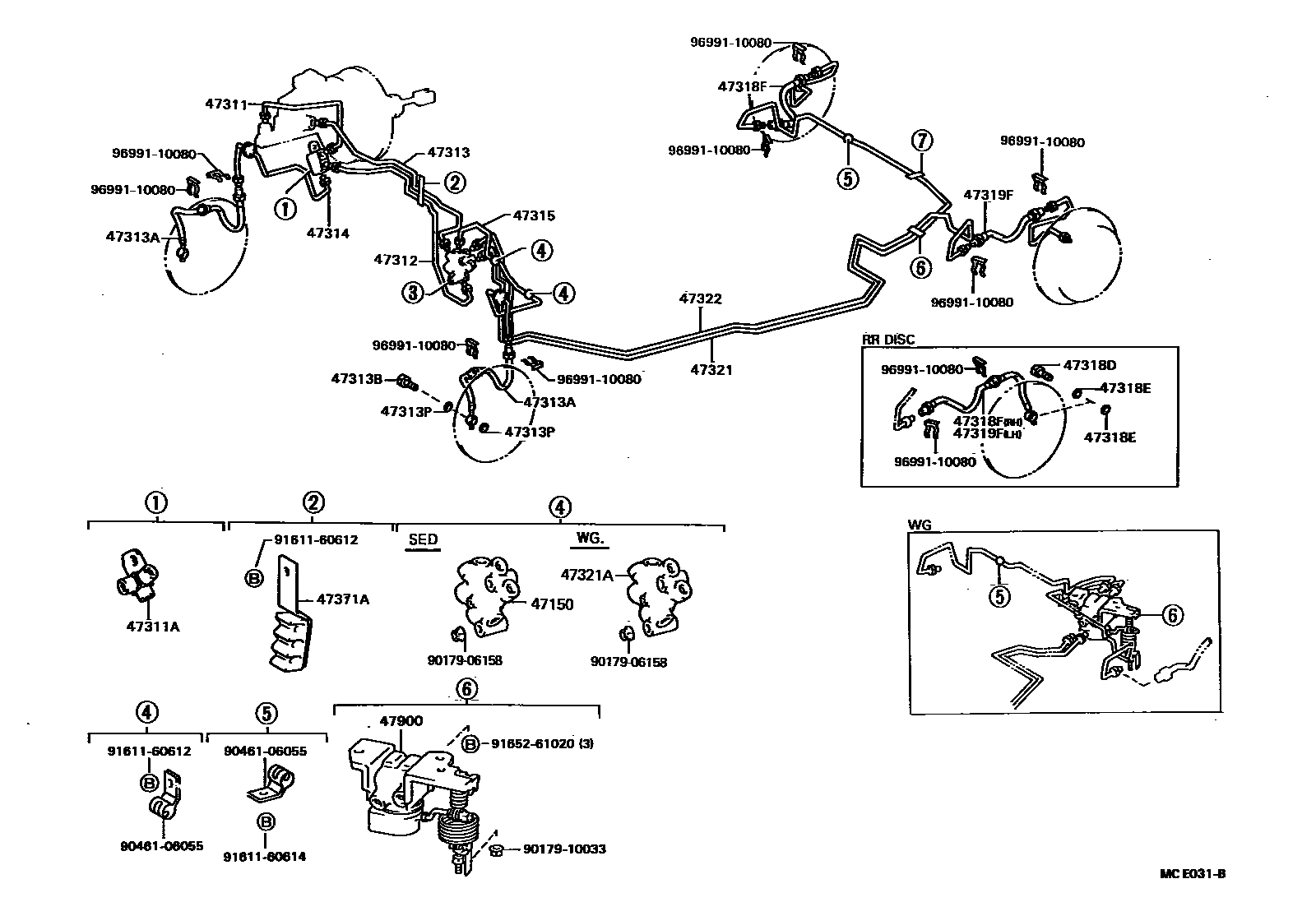

BRAKE TUBE & CLAMP

47150VALVE ASSY, PROPORTIONING

main47150-20130iSV2#..SED..(CS,S)198611-198710

sub47150-12240

main47150-20140iVZV21198802-198808

47311TUBE, FRONT BRAKE, NO.1

main47311-32080iVZV21198802-198808

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10122iSV2#198611-198710

main90413-10193iSV2#,VZV21198710-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-32130iVZV21198802-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-32120iVZV21198802-198808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02496×2iSV2#198611-198710

sub90947-02987

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iSV2#198611-198710

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iSV2#198611-198710

47314TUBE, FRONT BRAKE, NO.4

main47314-32080iVZV21198802-198808

47315TUBE, FRONT BRAKE, NO.5

main47315-32060iVZV21198802-198808

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iSV21..CSX198611-198710

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iSV21..CSX198611-198710

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02497iSV2#..CS,S198611-198904

main90947-02498iSV21..CSX198611-198710

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02497iSV2#..CS,S198611-198904

main90947-02498iSV21,VZV21..CSX,ULT198710-198808

47321TUBE, REAR BRAKE, NO.1

main47321-32110iVZV21198802-198808

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10205iSV2#..WG198611-198904

47322TUBE, REAR BRAKE, NO.2

main47322-32100iVZV21198802-198808

47371ACLAMP, BRAKE TUBE, NO.1

main47371-32010iSV2#,VZV21198710-198808

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-32010iSV2#..WG..(CS,S)198710-198811

main47900-32011iSV2#..WG..(CS,S)198811-198904

main47900-32020iSV21..WG..CSX198710-198811

main47900-32021iSV21..WG..CSX198811-198904

9017906158

main90179-06158

9017910033

main90179-10033

9046106055

main90461-06055

9161160612

main91611-60612

9161160614

main91611-60614

9165261020

main91652-61020

9699110080

main96991-10080

26 parts on this diagram · 1 diagram in section
