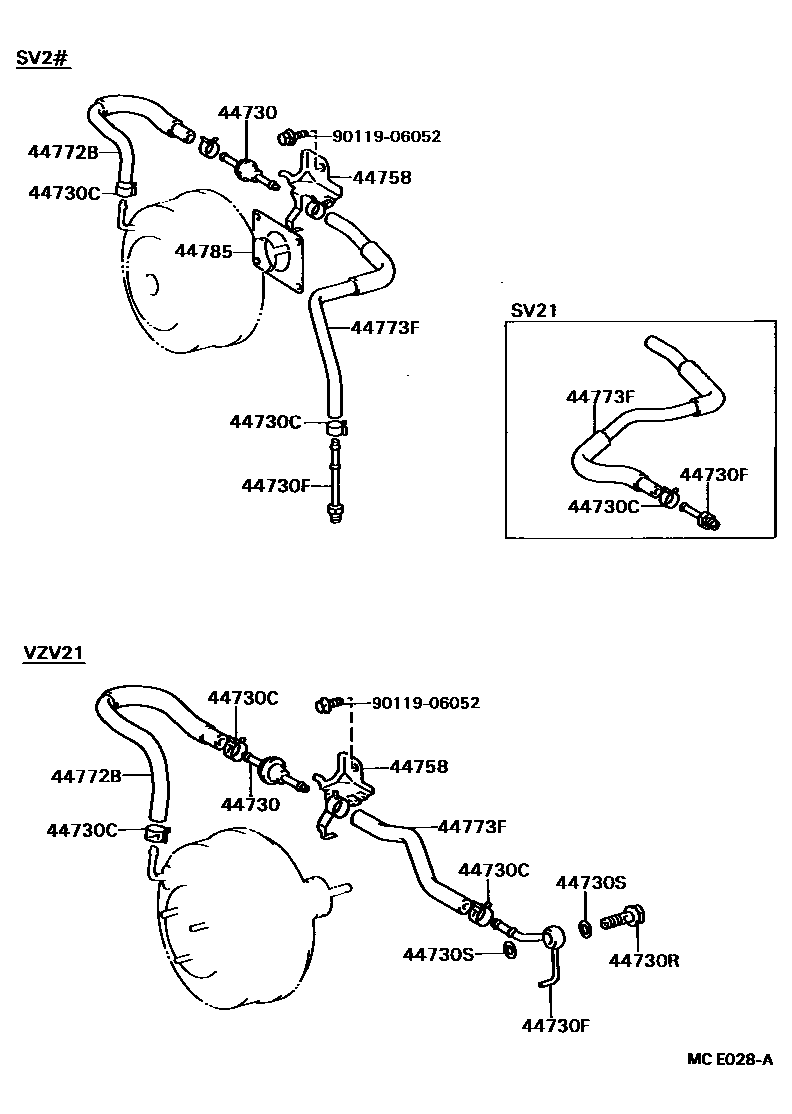

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iSV2#,VZV21198611-198904

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iSV2#,VZV21198611-198904

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51031iSV20198611-198904

main90404-51319iSV21198611-198904

main90405-09125iVZV21198802-198808

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iVZV21198802-198808

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005iVZV21198802-198808

44758BRACKET, VACUUM CHECK VALVE

main44758-20141iSV2#198611-198904

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-32060iSV2#,VZV21198611-198904

44773FHOSE, UNION TO CHECK VALVE

main44773-32060iSV20198611-198904

main44773-32070iSV21198611-198808

main44773-32110iVZV21198802-198808

44785GASKET, BRAKE BOOSTER

main44785-32010iSV2#198611-198904

9011906052

main90119-06052

10 parts on this diagram · 3 diagrams in section
