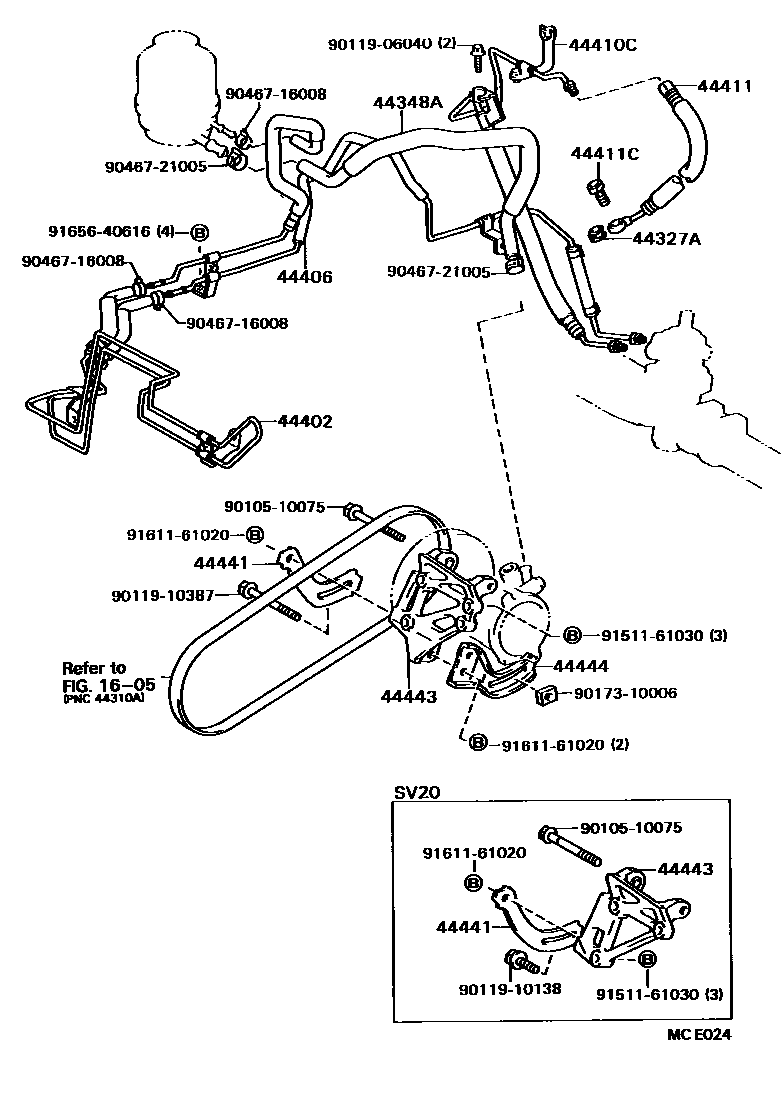

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iVZV21198611-198904

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32050iSV21198611-198904

main44348-32070iSV20198611-198904

main44348-32090iVZV21198802-198808

main44348-32120iVZV21198808-198808

sub44348-32090

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-32031iSV2#198611-198904

main44402-32090iVZV21198802-198808

44406TUBE SUB-ASSY, RETURN

main44406-32021iSV2#..CS,CSX198611-198710

main44406-32090iVZV21198802-198808

44410TUBE ASSY, PRESSURE FEED

main44410-32240iVZV21198802-198808

sub44410-32241

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-32110iSV2#198611-198904

44411HOSE, PRESSURE FEED

main44411-32030iSV2#..CS,CSX198611-198904

main44411-32060iVZV21198802-198808

sub44411-32061

main44411-32080iVZV21198808-198808

sub44411-32081

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iSV2#198611-198904

44441BRACKET, PUMP, FRONT

main44441-32010iSV2#198611-198904

44443BRACKET, PUMP

main44443-20050iSV21..CS,CSX198611-198904

main44443-20060iSV20198611-198904

sub44443-20050

main44443-32041iVZV21198808-198808

44444STAY, PUMP, REAR

main44444-20030iSV21..CS,CSX198611-198904

9010510075

main90105-10075

9011906040

main90119-06040

9011910138

main90119-10138

9011910387

main90119-10387

9017310006

main90173-10006

9046716008

main90467-16008

9046721005

main90467-21005

9151161030

main91511-61030

9161161020

main91611-61020

9165640616

main91656-40616

22 parts on this diagram · 2 diagrams in section
