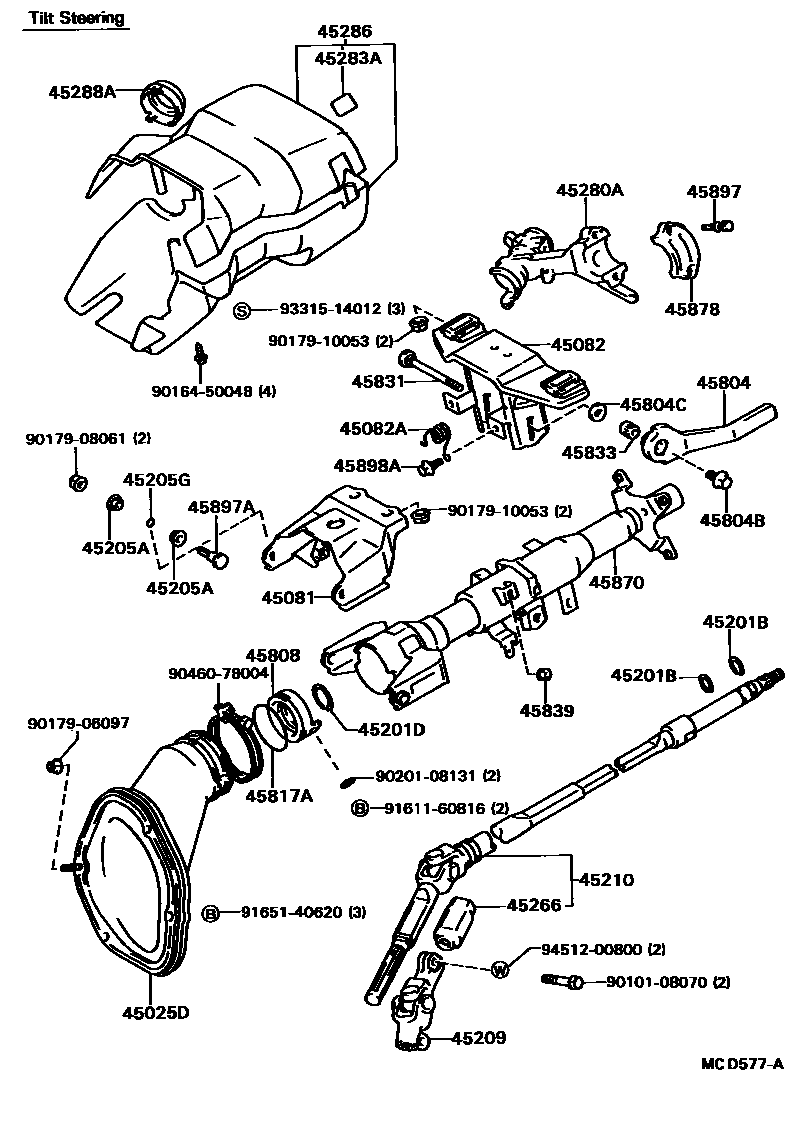

STEERING COLUMN & SHAFT
45081SUPPORT SUB-ASSY, TILT STEERING
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45082ASPRING, TORSION(FOR TILT STEERING RETURN)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
T=1.35-1.45
45201DRING(FOR STEERING MAIN SHAFT)
45205ABUSH(FOR STEERING COLUMN TUBE)
45205GRING, O(FOR STEERING COLUMN TUBE)
45210SHAFT ASSY, STEERING MAIN
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
45288ASPACER, COLUMN COVER
45804LEVER SUB-ASSY, STEERING TILT
45804BBOLT(FOR STEERING TILT LEVER)
45804CWASHER, PLATE(FOR STEERING TILT LEVER)
45808STOPPER SUB-ASSY, STEERING SHAFT THRUST
sub45808-32020
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45839GROMMET, RETURN SPRING
45870TUBE ASSY, STEERING COLUMN
sub45870-32081
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
45898ABOLT, RETURN SPRING SET
9010108070
main90101-08070
9016450048
main90164-50048
9017906097
main90179-06097
9017908061
main90179-08061
9017910053
main90179-10053
9020108131
main90201-08131
9046078004
main90460-78004
9161160816
main91611-60816
9165140620
main91651-40620
9331514012
main93315-14012
9451200800
main94512-00800
39 parts on this diagram · 1 diagram in section
