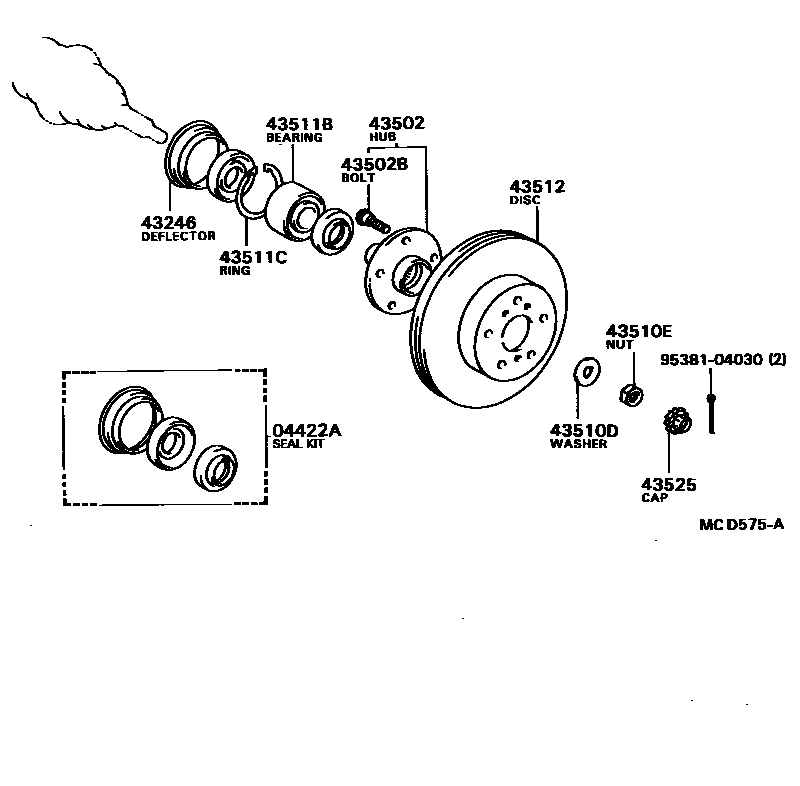

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-32010×2iSV2#,VZV21198710-198808

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-32011×2iSV2#198611-198710

43502HUB SUB-ASSY, FRONT AXLE

main43502-20040×2iSV2#198611-198710

sub43502-32040

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047×10iSV2#198611-198710

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012×2iSV2#198611-198710

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001×2iSV2#198808-198904

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iSV2#,VZV21198710-198808

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iSV2#,VZV21198710-198808

OD=79

main90521-79003×2iVZV21198802-198808

T=2.50-2.57,T=2.50-2.57

main90521-79004×2iVZV21198802-198808

T=2.57-2.62,T=2.57-2.62

main90521-79005×2iVZV21198802-198808

T=2.62-2.67,T=2.62-2.67

main90521-79006×2iVZV21198802-198808

T=2.67-2.72,T=2.67-2.72

43512DISC, FRONT

main43512-32090×2iSV2#198611-198904

sub43512-32170

main43512-32120×2iVZV21198802-198808

sub43512-32200

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010×2iSV2#198611-198710

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section
