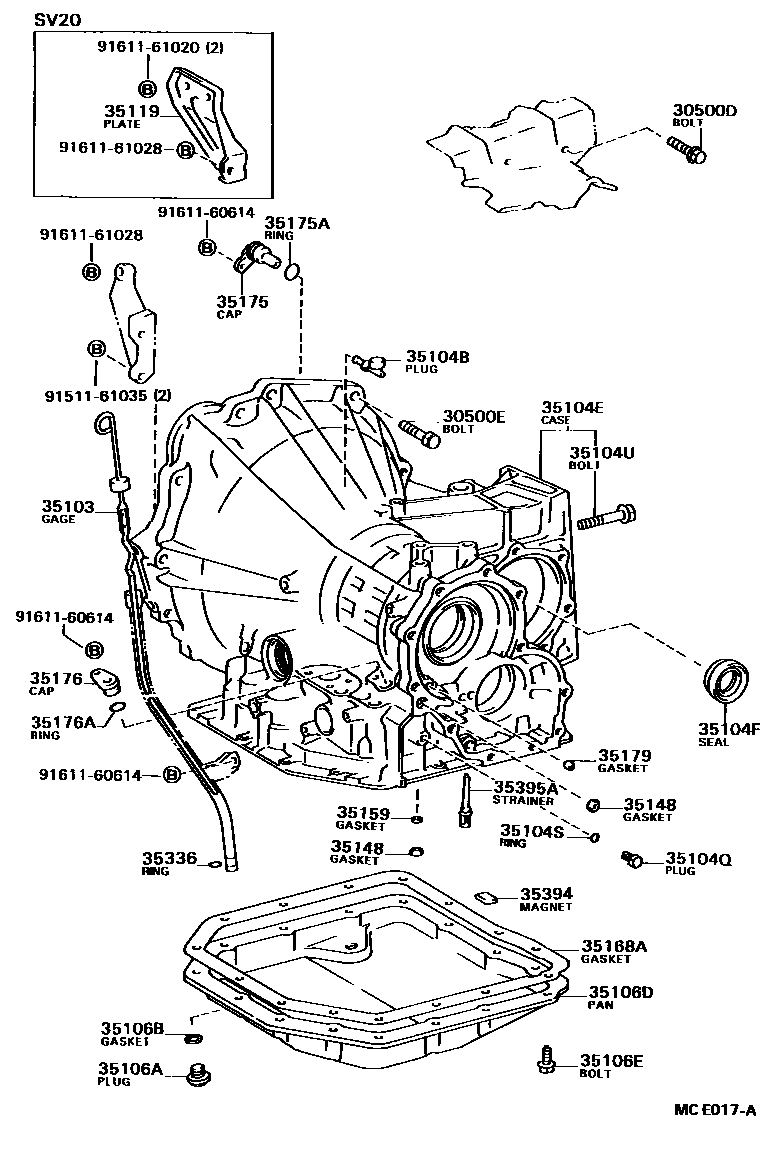

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)

main90105-08040×2iSV2#..4FC198710-198904

sub91641-H0820

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iSV2#..4FC198808-198904

*8-1.25PX18-15,*8-1.25PX18-15

sub91641-H0820

main90105-10077×2iVZV21198802-198808

*10-1.25PX43-26

main91619-61245iSV2#..4FC198808-198904

*12-1.25PX45-30,*12-1.25PX45-30

main91619-61260iVZV21198802-198808

*12-1.25PX60-30

main91651-41022iSV20..4FC198710-198904

*10-1.25PX22-22

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-20120iSV20..4FC198611-198904

main35103-32030iSV21..4FC198611-198904

sub35103-32031

main35103-32040iVZV21198802-198808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iVZV21198802-198808

main90930-03089iSV2#..4FC198611-198710

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20070iSV21..4FC198611-198703

sub90105-10122

main35104-20071iSV21..4FC198703-198710

main35104-20072iSV21..4FC198802-198904

sub35104-20073

sub35424-20020

sub90301-23194

sub90501-18084

main35104-32050iSV20..4FC198611-198703

sub90105-10122

main35104-32051iSV20..4FC198703-198710

main35104-32052iSV20..4FC198802-198904

sub35104-32053

sub35424-20020

sub35603-32030

sub90301-23194

sub90501-18089

sub90501-20118

main35104-32090iVZV21198802-198804

sub90930-03119

main35104-32091iVZV21198804-198808

sub35104-32092

sub32901-32050

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-35010iSV2#..4FC198611-198709

main90311-35019iSV2#..4FC198709-198710

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×2iSV2#..4FC198611-198710

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×2iSV2#..4FC198611-198710

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222×7iVZV21198802-198808

*10-1.25PX65-30,*10-1.25PX65-30

main90105-10223×2iVZV21198802-198808

*10-1.25PX75-30,*10-1.25PX75-30

main90105-10224×2iVZV21198802-198808

*10-1.25PX100-30,*10-1.25PX100-30

main90105-12052×2iSV2#..4FC198710-198904

*12-1.25PX54-24

sub90105-12263

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iSV2#..4FC198611-198710

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iSV2#..4FC198611-198710

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10021iSV2#..4FC198710-198904

W(PROTECTOR)

sub35106-10022

main35106-32011iSV2#..4FC198611-198710

sub35106-32012

main35106-32030iVZV21198802-198809

W(PROTECTOR)

main35106-32031iVZV21198809-198808

W(PROTECTOR)

sub35106-32032

main35106-32040iVZV21198802-198808

sub35106-32041

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×15iSV2#..4FC198611-198710

35119PLATE, STIFENER, LH (ATM)

main33119-32010iSV20..4FC198611-198904

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010×2iSV2#..4FC198611-198710

35159GASKET, BRAKE DRUM

main35159-32011iSV2#,VZV21..4FC198710-198808

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-32010iSV2#..4FC198611-198710

main35168-32020iVZV21198802-198808

sub35168-33020

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iSV2#..4FC198808-198904

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iSV2#..4FC198611-198710

35176CAP, WIRE HARNESS

main35176-32010iSV2#..4FC198611-198710

35176ARING, O (FOR WIRE HARNESS CAP)

main96721-24013iSV2#..4FC198710-198904

35179GASKET, OVERDRIVE BRAKE

main35179-32010iSV2#..4FC198611-198710

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iSV2#..4FC198611-198710

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iSV2#..4FC198611-198710

35395ASTRAINER, GOVERNOR OIL

main35395-32011iSV2#..4FC198611-198710

main35395-32020iSV2#..4FC198802-198904

sub35395-32030

9151161035

main91511-61035

9161160614

main91611-60614

9161161020

main91611-61020

9161161028

main91611-61028
