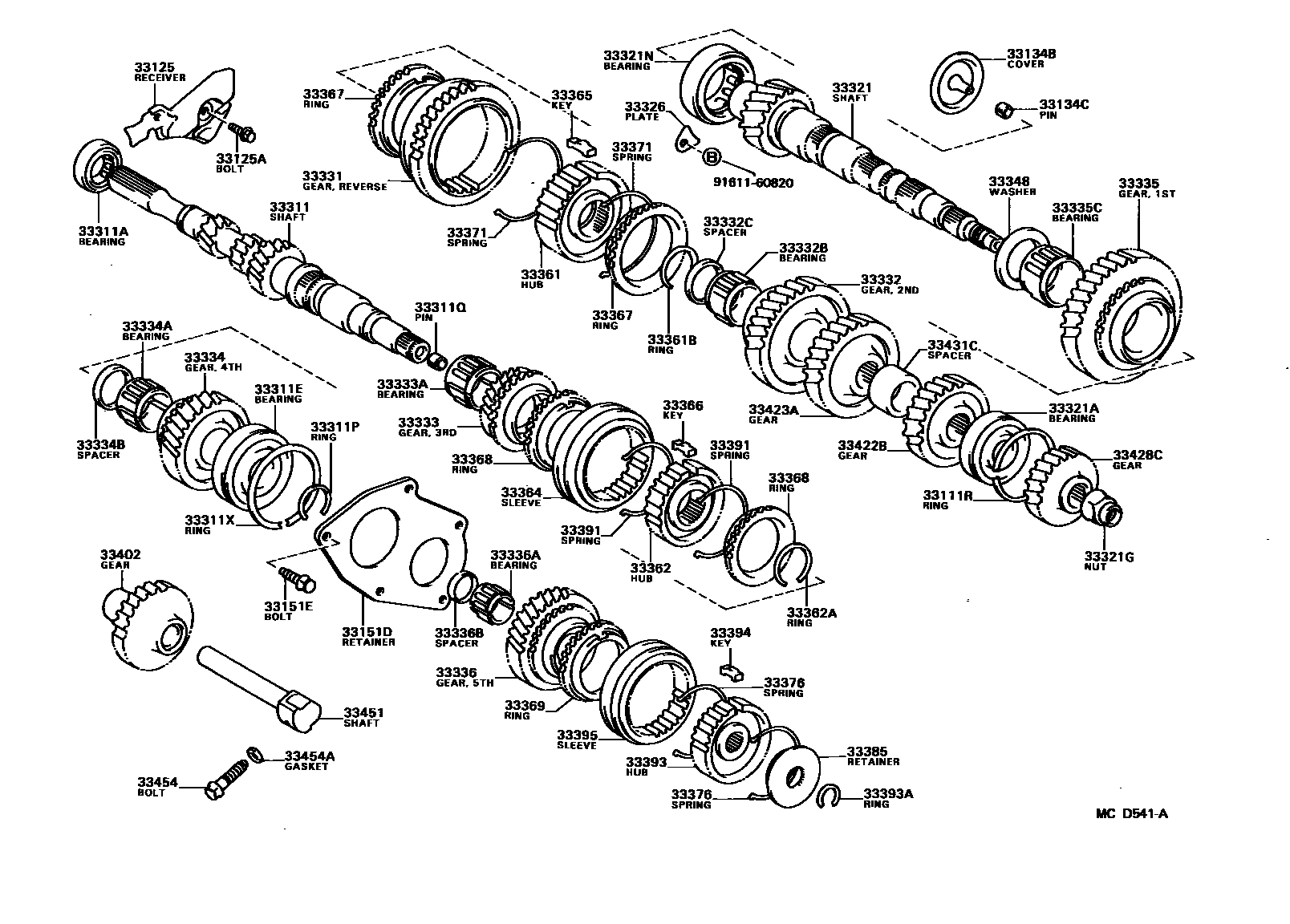

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
sub91611-B0616
33134BCOVER, OUTPUT SHAFT(MTM)
33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)
33151DRETAINER, BEARING, REAR(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
sub90105-08237
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
sub90363-29006
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.15-2.20,MARK A,T=2.15-2.20,MARK A
T=2.15-2.20,MARK A
T=2.20-2.25,MARK B
T=2.20-2.25,MARK B,T=2.20-2.25,MARK B
T=2.25-2.30,MARK C
T=2.25-2.30,MARK C,T=2.25-2.30,MARK C
T=2.30-2.35,MARK D
T=2.30-2.35,MARK D,T=2.30-2.35,MARK D
T=2.35-2.40,MARK E,T=2.35-2.40,MARK E
T=2.35-2.40,MARK E
33311QPIN, SLOTTED SPRING (FOR INPUT SHAFT)
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
sub90363-25056
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33331GEAR, REVERSE
sub33331-32020
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
sub33034-32H03
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
sub33032-32030
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK 1,T=2.50-2.55,MARK 1
T=2.50-2.55,MARK 1
T=2.55-2.60,MARK 2
T=2.55-2.60,MARK 2,T=2.55-2.60,MARK 2
T=2.60-2.65,MARK 3
T=2.60-2.65,MARK 3,T=2.60-2.65,MARK 3
T=2.65-2.70,MARK 4
T=2.65-2.70,MARK 4,T=2.65-2.70,MARK 4
T=2.70-2.75,MARK 5
T=2.70-2.75,MARK 5,T=2.70-2.75,MARK 5
T=2.75-2.80,MARK 6
T=2.75-2.80,MARK 6,T=2.75-2.80,MARK 6
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.95-1.99,MARK 1
T=1.95-1.99,MARK 1,T=1.95-2.00,MARK 1
T=2.00-2.04,MARK 2
T=2.00-2.04,MARK 2,T=2.00-2.05,MARK 2
T=2.05-2.09,MARK 3
T=2.05-2.09,MARK 3,T=2.05-2.10,MARK 3
T=2.10-2.14,MARK 4
T=2.10-2.14,MARK 4,T=2.10-2.15,MARK 4
T=2.15-2.19,MARK 5
T=2.15-2.19,MARK 5,T=2.15-2.20,MARK 5
T=2.20-2.24,MARK 6,T=2.20-2.25,MARK 6
T=2.20-2.24,MARK 6
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
sub33367-17020
33368RING, SYNCHRONIZER, NO.2
sub33368-17020
33369RING, SYNCHRONIZER, NO.3
sub33368-17020
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33385RETAINER, SHIFTING KEY
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.60-1.65,MARK 1
T=1.60-1.65,MARK 1,T=1.60-1.65,MARK 1
T=1.65-1.70,MARK 2
T=1.65-1.70,MARK 2,T=1.65-1.70,MARK 2
T=1.70-1.75,MARK 3
T=1.70-1.75,MARK 3,T=1.70-1.75,MARK 3
T=1.75-1.80,MARK 4,T=1.75-1.80,MARK 4
T=1.75-1.80,MARK 4
T=1.80-1.85,MARK 5
T=1.80-1.85,MARK 5,T=1.80-1.85,MARK 5
T=1.85-1.90,MARK 6
T=1.85-1.90,MARK 6,T=1.85-1.90,MARK 6
T=1.90-1.95,MARK 7
T=1.90-1.95,MARK 7,T=1.90-1.95,MARK 7
T=1.95-2.00,MARK 8
T=1.95-2.00,MARK 8,T=1.95-2.00,MARK 8
T=2.00-2.05,MARK 9
T=2.00-2.05,MARK 9,T=2.00-2.05,MARK 9
T=2.05-2.10,MARK 10
T=2.05-2.10,MARK 10,T=2.05-2.10,MARK 10
T=2.10-2.15,MARK 11
T=2.10-2.15,MARK 11,T=2.10-2.15,MARK 11
T=2.15-2.20,MARK 12
T=2.15-2.20,MARK 12,T=2.15-2.20,MARK 12
T=2.20-2.25,MARK 13
T=2.20-2.25,MARK 13,T=2.20-2.25,MARK 13
T=2.25-2.30,MARK 14
T=2.25-2.30,MARK 14,T=2.25-2.30,MARK 14
T=2.30-2.35,MARK 15
T=2.30-2.35,MARK 15,T=2.30-2.35,MARK 15
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
sub33428-32050
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33454BOLT, SHAFT RETAINING
9161160820
main91611-60820
60 parts on this diagram · 1 diagram in section
