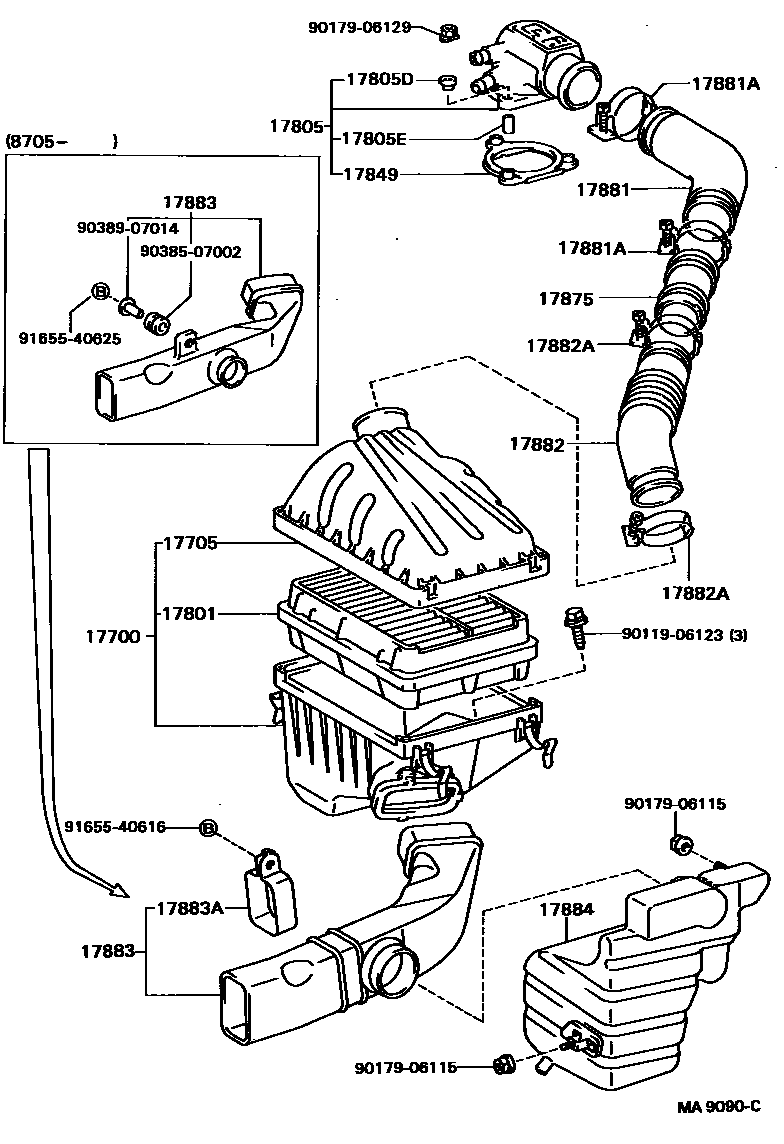

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-62020i2VZFE..VZV21198802-198808

main17700-63130i1SI..SV20198611-198904

sub17700-74090

main17700-74100i3SFE..SV21198611-198904

17705CAP SUB-ASSY, AIR CLEANER

main17705-62020i2VZFE..VZV21198802-198808

main17705-63060i1SI..SV20198611-198710

main17705-74070i3SFE..SV21198611-198904

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74010i1SI,3SFE..SV2#198710-198904

sub17801-55010

main17801-74020i2VZFE..VZV21198802-198808

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17860-63010i1SI..SV20198611-198904

17805DGROMMET(FOR INTAKE AIR CONNECTOR)

main90480-12011×3i1SI..SV20198611-198904

17805ECOLLAR(FOR INTAKE AIR CONNECTOR)

main90387-06029×3i1SI..SV20198611-198904

17849GASKET, INTAKE AIR CONNECTOR

main17849-63011i1SI..SV20198611-198904

17875PIPE, INTAKE AIR CONNECTOR

main17875-63010i1SI..SV20198611-198904

17881HOSE, AIR CLEANER, NO.1

main17881-62020i2VZFE..VZV21198802-198808

main17881-63030i1SI..SV20198611-198904

main17881-74110i3SFE..SV21198611-198904

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710×2i1SI..SV20198611-198904

main96111-10730i3SFE..SV21198710-198904

HOSE SIDE

main96111-10750i2VZFE..VZV21198710-198808

NO.1

main96111-10900i2VZFE..VZV21198802-198808

NO.2

17882HOSE, AIR CLEANER, NO.2

main17882-63050i1SI..SV20198611-198904

main17882-74040i3SFE..SV21198611-198904

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10710×2i1SI..SV20198611-198904

main96111-10800i3SFE..SV21198710-198904

17883HOSE, AIR CLEANER, NO.3

main17882-63110i1SI,3SFE..SV2#198710-198808

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01046i1SI,3SFE..SV2#198611-198705

17884HOSE, AIR CLEANER, NO.4

main17883-63030i1SI,3SFE..SV2#198611-198710

9011906123

main90119-06123

9017906115

main90179-06115

9017906129

main90179-06129

9038507002

main90385-07002

9038907014

main90389-07014

9165540616

main91655-40616

9165540625

main91655-40625

22 parts on this diagram · 3 diagrams in section
