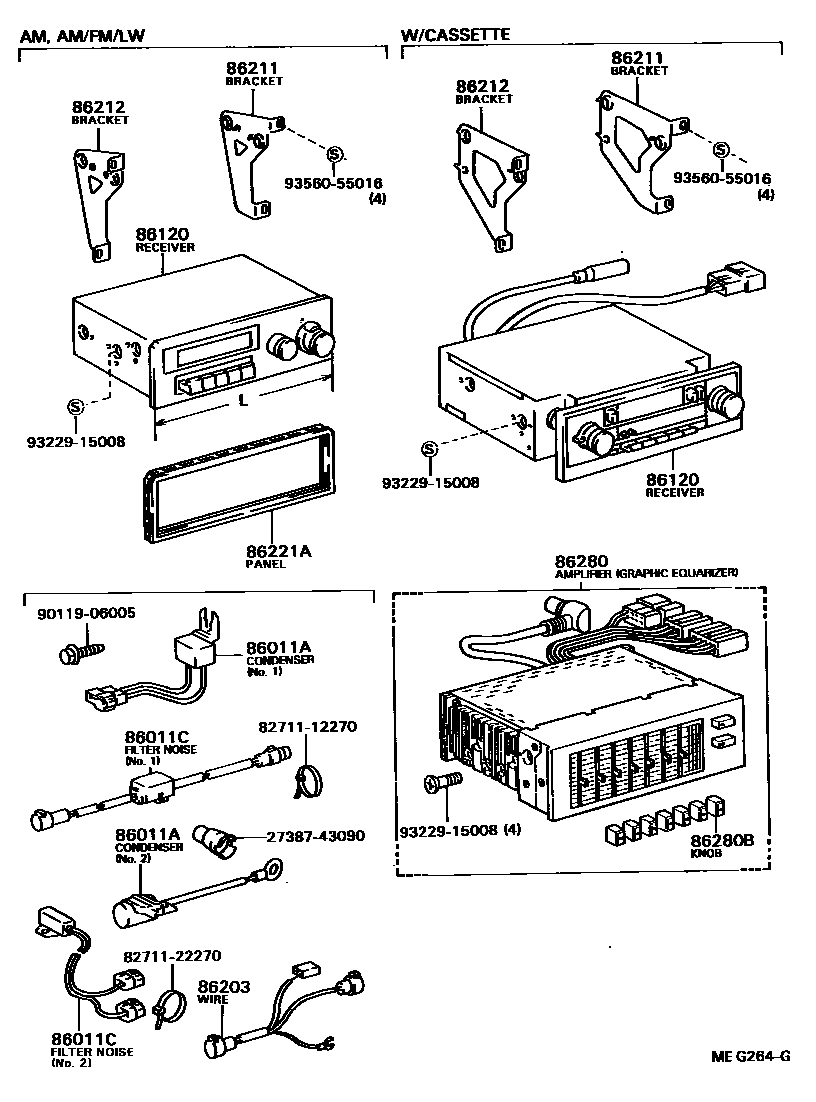

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04041iSV1#..LHD..EUG198210-198610

NO.1

main90980-04057iCV1#,SV1#..EUG,FRG198506-198610

NO.2

86011CFILTER, NOISE

main90980-05112iSV11..LHD..(EUG,FRG)198506-198610

NO.1

main90980-05124iSV11..RHD..EUG198506-198610

NO.2

86120RECEIVER ASSY, RADIO

main86120-14381iSV11..ARL198303-198610

*27

main86120-14641iCV10,SV1#..LHD..EUG198210-198405

AM

sub86120-14642

main86120-14642iCV1#,SV1#..LHD..(EUG,FRG)198405-198610

AM

main86120-16260iCV10,SV1#..EUG198406-198412

AM/FM/LW,L=188,DIN

main86120-16260iCV10,SV1#..EUG198210-198406

AM/FM/LW,L=188

main86120-16261iCV1#,SV1#..EUG,FRG198412-198610

AM/FM/LW,L=188,DIN

main86120-22390iCV10,SV1#..EUG198406-198412

AM/FM/LW,L=180

sub86120-22391

main86120-22391iCV1#,SV1#..EUG,FRG198412-198610

FUJITSU TEN,AM/FM/LW,L=180

main86120-22400iSV11..SDZ198308-198502

AM/FM/LW,W/ARI

sub86120-22401

main86120-22401iSV11..FRG,SDZ198502-198603

AM/FM/LW,W/ARI

sub86120-22402

main86120-22402iSV11..FRG,SDZ198603-198610

FUJITSU TEN,AM/FM/LW,W/ARI

main86120-30652iCV11,SV1#..RHD..EUG198603-198610

*ELT,AM/FM/LW,W/ARI

main86120-32050iSV11..ARL198303-198610

AM/FM,W/CASSETTE

sub86120-16440

sub86203-20180

main86120-32070iCV1#,SV1#..EUG,FRG198210-198610

AM/FM/LW MPX,W/CASSETTE

main86120-32080iSV11..SDZ198303-198308

AM/FM/LW,W/ARI

86203WIRE, RADIO

main82121-32830iSV11..RHD..EUG198506-198610

86211BRACKET, RADIO, NO.1

main86211-32020iCV1#,SV1#..EUG,FRG198406-198610

AM/FM/LW,RECEIVER L=180

main86211-32020iCV10..LHD..GL198308-198610

W/ARI

main86211-32020iSV11..ARL198303-198610

main86211-32030iCV1#,SV1#..EUG,FRG198406-198610

AM & AM/FM/LW, RECEIVER L=188

main86211-32030iCV10,SV1#..EUG198210-198406

main86211-32040iCV1#,SV1#..EUG,FRG198210-198610

W/CASSETTE

86212BRACKET, RADIO, NO.2

main86212-32020iSV11..ARL198303-198610

main86212-32020iSV11..FRG,SDZ198308-198610

W/ARI

main86212-32020iCV1#,SV1#..EUG,FRG198406-198610

AM/FM/LW,RECEIVER L=180

main86212-32030iSV1#..EUR198210-198406

main86212-32030iCV1#,SV1#..EUG,FRG198406-198610

AM & AM/FM/LW, RECEIVER L=188

main86212-32040iCV1#,SV1#..EUG,FRG198210-198610

W/CASSETTE

86221APANEL, RADIO RECEIVER

main86220-12010iCV11,SV1#..RHD..EUG198603-198610

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-19045iSV11..ARL198303-198610

86280BKNOB, AMPLIFIER GRAPHIC EQUALIZER

main86128-14460iSV11..ARL198303-198610

2738743090INSULATOR, TERMINAL

main27387-43090

8271112270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12270

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9011906005

main90119-06005

9322915008

main93229-15008

9356055016

main93560-55016

15 parts on this diagram · 2 diagrams in section
